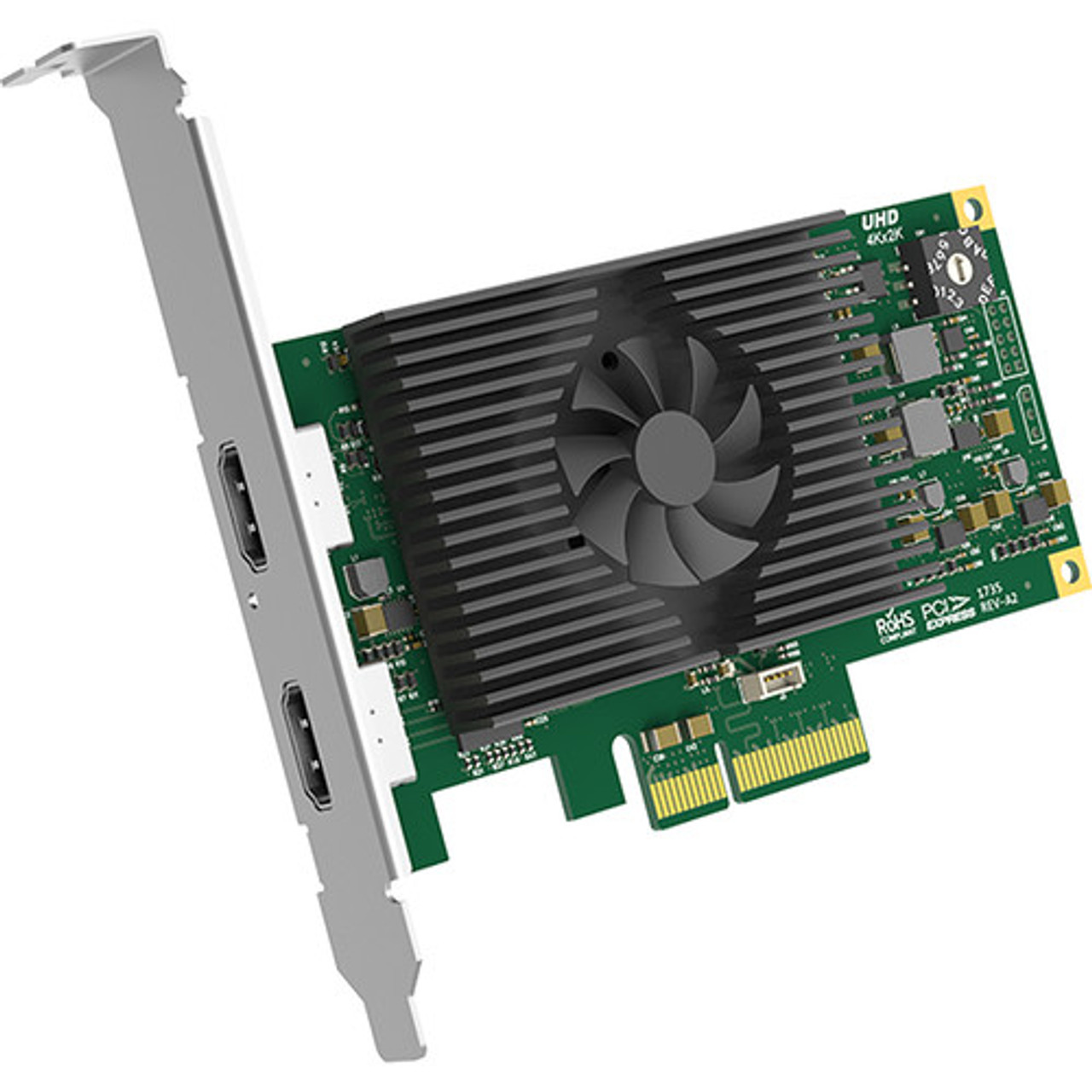

Capture 4K resolution video using the low-profile Pro Capture HDMI 4K Plus Loop-Through Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features HDMI 2.0 input and loop-through ports. Use an optional HDMI 2.0 to DVI-D 1.0 adapter (not included) to input via DVI-D.
Capture uncompressed video from a camera or switcher's HDMI 2.0 or DVI-D 1.0 output on your computer for recording, editing, or streaming.The Magewell Pro Capture HDMI 4K Plus Loop-Through is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats.
- HDMI 2.0 Input / Loop Through
- DVI-D 1.0 Input with Optional Adapter
- PCIe x4 Interface
- Supports up to 4096 x 2160 DCI 4K Video
- 10-Bit / 8-Bit Processing
- Multiple Color-Space Support
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- macOS, Windows, and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
Magewell Pro Capture HDMI 4K Plus Loop-Through Capture Card
Capture 4K resolution video using the low-profile Pro Capture HDMI 4K Plus Loop-Through Capture Card from Magewell. This PCI Express x4 capture card is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and features HDMI 2.0 input and loop-through ports. Use an optional HDMI 2.0 to DVI-D 1.0 adapter (not included) to input via DVI-D. Capture uncompressed video from a camera or switcher's HDMI 2.0 or DVI-D 1.0 output on your computer for recording, editing, or streaming.
The Magewell Pro Capture HDMI 4K Plus Loop-Through is compatible with Windows, macOS, and Linux systems. Extraction of audio-formation and channel-status data, video-timing, Sony and Canon DSLR timecode, and 3D-format information is supported, as are multiple color spaces in 8- and 10-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11152 cards can be used and numbered in one system.
HDMI-Specific Features
- 594 MHz HDMI receiver
- Adaptive HDMI equalizer
- Customized EDID support
- Extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut/HDR/VBI InfoFrames
- Full colorimetry support
- 8/10/12-bit color depths supported
- RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling supported
- Up to 8-channel IEC60958/IEC61937 audio streams supported
- Extraction of audio formation information and channel status data supported
- Extraction of video timing information supported
- Extraction of 3D format information supported
- Extraction of Sony/Canon DSLR time code supported
- Side-by-Side Half, Top-and-Bottom, and Frame Packing 3D mode supported
Video Capture Format Support
- Image-capture resolutions up to 4096 × 2160 pixels
- Capture frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- 4:4:4 10-bit capture formats: V410, Y410
- Additional capture formats are supported via Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~720 MP/s processing bandwidth for each one
- Full 10-bit video processing
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only - Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping, or Padding
(Letterbox or Pillarbox) - Video color-format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Supports limited or full quantization range
Supports limited, full & 'extended gamut' saturation range - Video frame-rate conversion
- Video OSD composition:
Supports PNG OSD image (up to 4096 × 2160)
Supports dynamic loading of RGBA OSD image via SDK
Host Connection | PCIe x4 (PCIe 2.0) |
Video Input Connectors | 1 x HDMI (HDMI 2.0) Female |
Input Video Format | HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) DCI 4K |
Audio Input Connectors | None |
Embedded Audio Input | HDMI: 8-Channel |
Video Output Connectors | 1 x HDMI (HDMI 2.0) Female (Loop Output) |
Embedded Audio Output | HDMI: 8-Channel |
OS Compatibility | Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7 Linux 25 Linux 26 Linux 27 Linux 2.6.35 or Later macOS 10.9 macOS 10.10 macOS 10.11 macOS 10.12 or Later |
Power Consumption | 8.08 W |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Operating Humidity | 5 to 90% |
Dimensions | 5.51 x 2.71" / 140 x 68.88 mm |
Warranty Length | Limited 1-Year Warranty |
Package Weight | 0.24Kg |
Box Dimensions (LxWxH) | 22.10cm x 19.81cm x 4.19cm |
In The Box
- 1 x Magewell Pro Capture HDMI 4K Plus Loop-Through Capture Card
- 1 x Low-Profile Bracket
- 1 x Limited 1-Year Warranty
