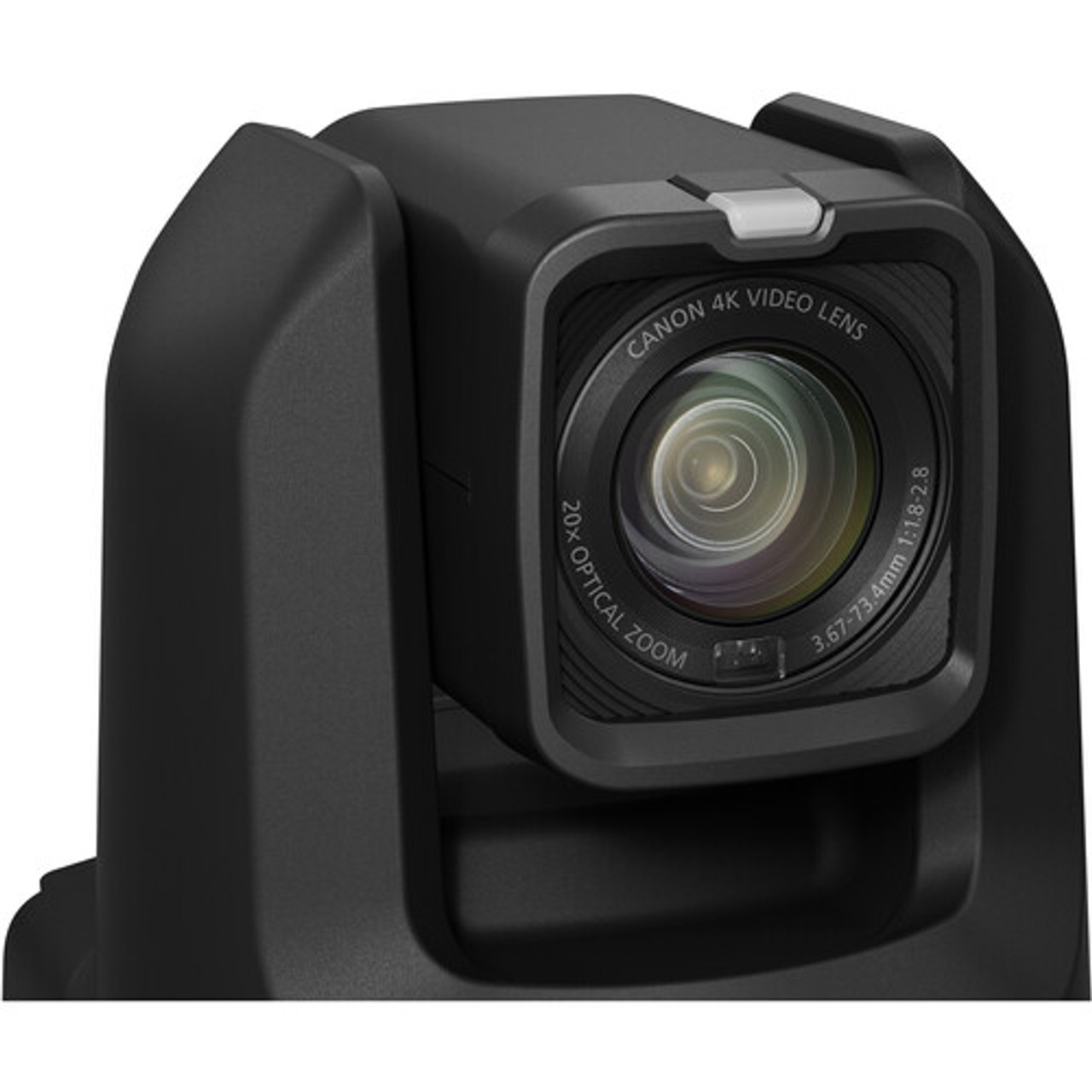

Canon CR-N300 4K NDI PTZ Camera with 20x Zoom

SKU: CR-N300BK
(No reviews yet) Write a Review
$4,560.00
(Inc. GST)
$3,965.22
(Ex. GST)

Enquire for ETA

At a glance:

If you have a professional production that requires remotely controlled cameras with minimal crew and a high-resolution output, the satin black CR-N300 4K NDI PTZ Camera with 20x Zoom from Canon will fit right into your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event space, or even add an extra camera to your documentary shoot. The CR-N300 sports many features of a Canon camcorder such as a 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, scene modes, 20x optical zoom, 20x digital zoom, microphone input, and video capture and output up to UHD 4K. The camera also includes NDI|HX support without requiring a separate license, allowing you to drop the camera into your existing NDI network with minimal configuration.

Where the PTZ camera diverges from the camcorders is in its remote resources such as control via IP, RS-422 serial, IR, or Wi-Fi as well as HDMI, 3G-SDI, and USB Type-C video outputs, and compatibility with the Canon RC-IP100 IP PTZ remote controller. It can perform smooth, precision pan, tilt, and zoom movements with a speed range of 0.2 to 300° per second.

  • Capture up to UHD 4K30 / 1080p60 Video
  • 8.29MP 1/2.3" CMOS Sensor with Hybrid AF
  • HDMI, 3G-SDI, IP, and USB Video Output
  • Built-In NDI|HX Support, PoE+, 1.5 Lux
  • 20x Optical, 20x Digital Zoom, AWB
  • 3.5mm Audio Input, AC Adapter Included
  • Canon DIG!C DV6 Processor
  • IP, RS-422, IR, and Wi-Fi Control
  • Works with Canon Control Software
  • Compatible with Canon PTZ Controller

Canon CR-N300 4K NDI PTZ Camera with 20x Zoom

If you have a professional production that requires remotely controlled cameras with minimal crew and a high-resolution output, the satin black CR-N300 4K NDI PTZ Camera with 20x Zoom from Canon will fit right into your house of worship, corporate conference room, government application, courtroom, broadcast streaming production, event space, or even add an extra camera to your documentary shoot. The CR-N300 sports many features of a Canon camcorder such as a 1/2.3" dual-pixel CMOS sensor, Hybrid AF, the Canon DIG!C DV6 image processor, scene modes, 20x optical zoom, 20x digital zoom, microphone input, and video capture and output up to UHD 4K. The camera also includes NDI|HX support without requiring a separate license, allowing you to drop the camera into your existing NDI network with minimal configuration.

Where the PTZ camera diverges from the camcorders is in its remote resources such as control via IP, RS-422 serial, IR, or Wi-Fi as well as HDMI, 3G-SDI, and USB Type-C video outputs, and compatibility with the Canon RC-IP100 IP PTZ remote controller. It can perform smooth, precision pan, tilt, and zoom movements with a speed range of 0.2 to 300° per second. Mic-level audio can be input via a 3.5mm mini-jack, and then embedded in the HDMI and 3G-SDI outputs, or in your NDI stream, RTP/RTMP/RTSP multi-stream, or USB output. The USB Type-C port allows the camera to be used as a webcam and also supports UVC control data, so you can control the camera using Canon's camera control software.

The camera can also be powered using PoE+ (Power-over-Ethernet) using its LAN port, so it can fit right into your existing PoE+ network without requiring the use of local power to save cabling. The camera supports a wide dynamic range, brightness of 1.5 lux, and its lens features a 35mm equivalent focal length of 29.3 to 601mm.

The camera can utilize an external controller via RS-422/VISCA or Canon's proprietary XC IP protocol on a private, secure LAN, using the optional RC-IP100 PTZ controller. Or, if you'd prefer to use Canon's camera control software, the free-to-download application can work on Windows OS, so you can control all the camera functions from a laptop or tablet. The software provides a 9x9 live view, control of up to 100 cameras, settings loading and configuration, and tally functions. An IR remote and an AC adapter are included.

Image Sensor1-Chip 1/2.3" CMOS Sensor
Sensor ResolutionActual: 21.14 Megapixel
Effective: 8.29 Megapixel (3840 x 2160)
Gain0 to 36 dB
Minimum Illumination1.5 Lux
White Balance2000 to 15,000K
Shutter Speed1/6 to 1/2000 sec
Max Digital Zoom20x
Built-In ND FilterNone
Optical Zoom Ratio20x
Focal Length3.7 to 73.4mm
35mm Equivalent Focal Length29.3 to 601mm
Field of ViewHorizontal: 3.6 to 65.6°
Vertical: 2 to 39.8°
Maximum Aperturef/1.8 to 2.8
Minimum Focus DistanceWide: 0.4" / 1.0 cm
Telephoto: 23.6" / 60.0 cm
Image StabilizationOptical
Focus ControlAutofocus
Manual Focus
Broadcast System CompatibilityNTSC, PAL
Output FormatsHDMI: 3840 x 2160p at 23.98, 25, 29.97 fps
1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
SDI: 1920 x 1080p at 23.98, 25, 29.97, 50, 59.94 fps
1920 x 1080i at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
RJ45: 3840 x 2160p at 29.97 fps
1920 x 1080p at 29.97, 59.94 fps
1280 x 720p at 29.97, 59.94 fps
640 x 360p at 29.97, 59.94 fps
USB: 1920 x 1080p at 50, 59.94 fps
1280 x 720p at 50, 59.94 fps
640 x 360p at 50, 59.94 fps
Embedded AudioHDMI/SDI/USB Type-C
IP StreamingH.264, RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p, 60p
IP Multi-Stream SupportSimultaneous
RTMP, RTP, RTSP: 1080p, 720p, 360p at 29.97p, 59.94p
Presets100 via IP, VISCA
Move SpeedPan: 2 to 300°/sec
Tilt: 0.2 to 170°/sec
Movement RangePan: 340° (-170 to 170°)
Tilt: 130° (-30 to 100°)
Tally LightYes
Supported Control ProtocolsCanon XC
IR
RS-422
VISCA
Video Output Connectors1 x BNC (3G-SDI) Female
1 x HDMI Type A Female
1 x RJ45 (HX / NDI) Female
1 x USB 3.0 Type-C (USB Video) Female
Audio I/O1 x 1/8" / 3.5 mm Stereo Mic Level Input
Control Interface1 x RJ45 (RS-422, VISCA) Input
Other I/O1 x USB Type-A Input
PoE SupportPoE+ 802.3at
Power Connectors1 x Barrel / Coaxial (24 VDC)
Power ConsumptionPoE: 16.2 W
Power Supply: 24 VDC 15 W
Operating Temperature32 to 104°F / 0 to 40°C
Storage Temperature32 to 104°F / 0 to 40°C
Operating Humidity10 to 90%
Storage Humidity10 to 90%
Dimensions7.01 x 6.46 x 6.06" / 17.81 x 16.41 x 15.39 cm (Excluding Protrusions)
Weight4.9 lb / 2.2 kg
Package Weight3.70Kg
Box Dimensions (LxWxH)34.54cm x 32.00cm x 28.96cm

In The Box

  • 1 x Canon CR-N300 4K NDI PTZ Camera with 20x Zoom (Satin Black)
  • 1 x IR Remote Control
  • 1 x Remote Battery
  • 1 x Safety Wire
  • 1 x Safety Wire with Screw
  • 1 x AC Adapter
  • 1 x Power Cable
  • 1 x Limited 3-Year Warranty
