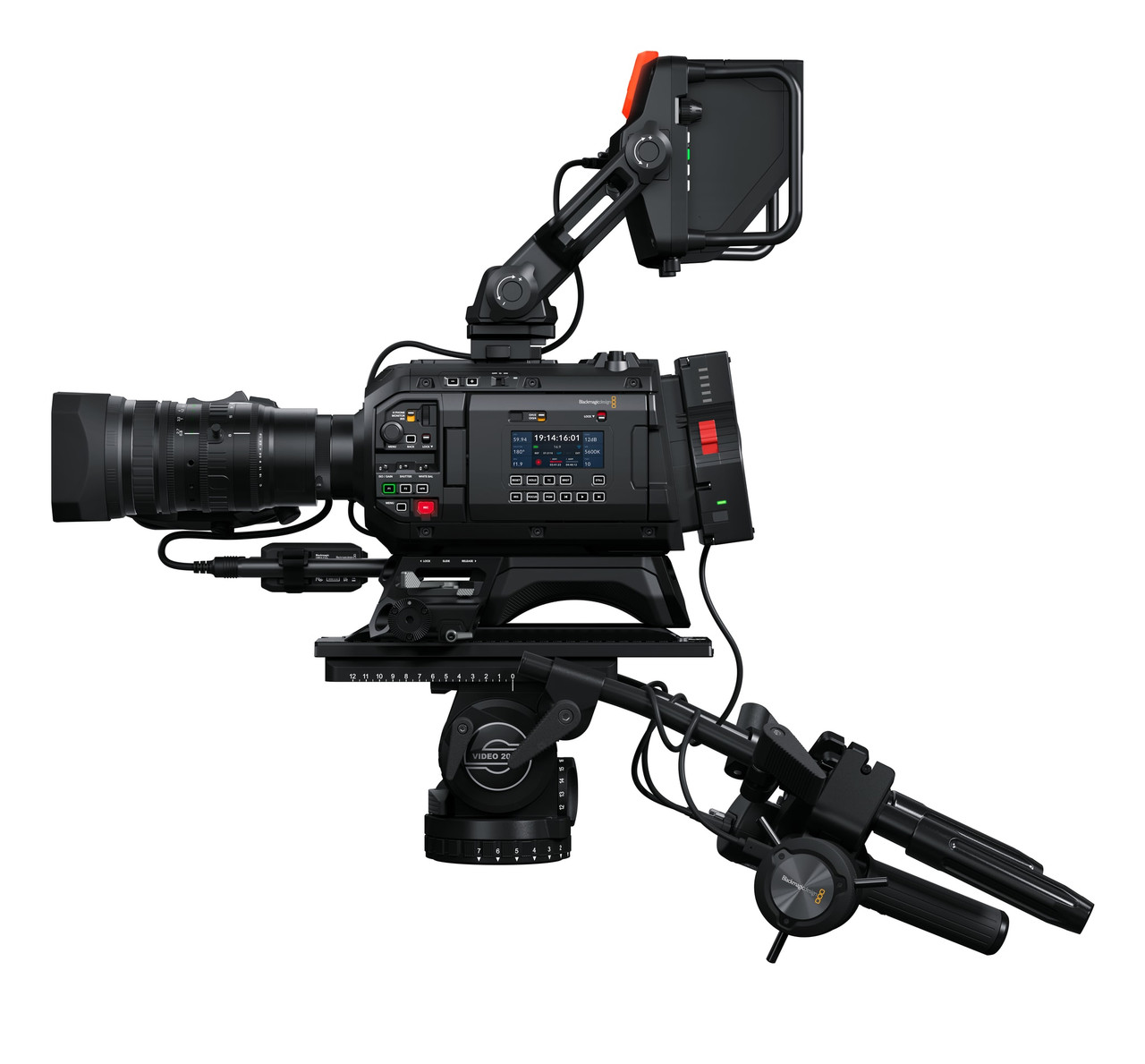

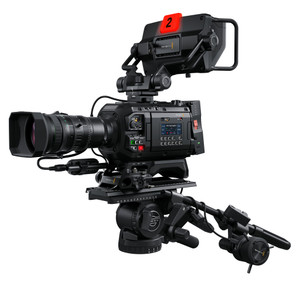

The URSA Cine 12K LF 100G EVF combines the 100G camera with the URSA Cine EVF, a 1920 x 1080 OLED viewfinder with a -5 to +5 diopter range and six assignable shortcut keys. The 100G QSFP28 Ethernet port sends and receives SMPTE-2110 live video up to 2160p60, and with the B4 lens mount for broadcast lenses the camera can deliver up to 240 fps for live sport and replay.

The large format RGBW 35.64 x 23.32mm sensor gives 16 stops of dynamic range, shooting 12,288 x 8040 in 12K 3:2 open gate at up to 80 fps with 16:9, 17:9, 2.4:1 and 6:5 formats alongside. Blackmagic RAW records to the included 8TB Blackmagic Media Module in constant bitrate 3:1 to 18:1 or constant quality Q0 to Q5, with a PL mount fitted, a lockable EF mount included and built in 2, 4 and 6-stop IR ND filters.

The EVF connects over a locking USB-C carrying power, data and video, and can trigger record plus camera functions assigned to its VF1, VF2, VF3, Zoom, Exp and Record buttons. Dual 5 inch 1500 nit HDR touchscreens sit on the body, with a dedicated assist station on the right side so crew can work around the camera without external monitors.

Alongside the 100G connection there are two 12G-SDI outputs, dual XLR audio inputs switchable between mic, line and AES with phantom power, and Tri-Sync and timecode reference. PTP v2 timing and NMOS IS-04 and IS-05 handle discovery and connection management on 2110 networks, with SRT and RTMP streaming built in over Ethernet, WiFi or USB-C cellular data.

Key features

• URSA Cine EVF included — 1920 x 1080 OLED, -5 to +5 diopter
• Six assignable shortcut keys on the viewfinder
• Large format 35.64 x 23.32mm RGBW sensor — 2.9 micron pixel pitch
• 16 stops of dynamic range
• 100G QSFP28 Ethernet for SMPTE-2110 live video in and out
• Up to 240 fps with the B4 broadcast lens mount
• 12K 3:2 open gate at 12,288 x 8040 up to 80 fps
• PL mount fitted, lockable EF mount included
• 8TB Blackmagic Media Module included
• Blackmagic RAW from 3:1 to Q5
• Built in 2, 4 and 6-stop IR ND filters
• Two 12G-SDI outputs plus dual XLR audio inputs
• NMOS IS-04/IS-05 and PTP v2 support
• SRT and RTMP direct streaming
