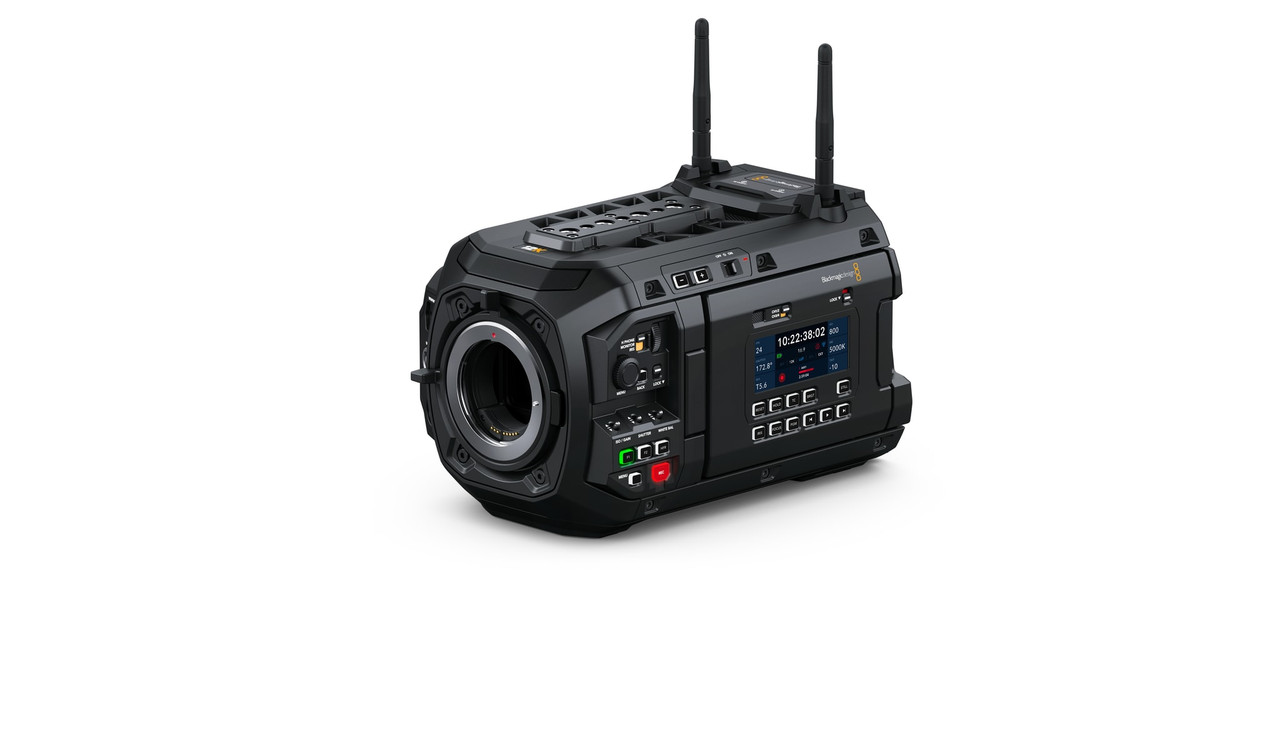

The URSA Cine 12K LF 100G Body is the body only version of the 100G camera, built for crews with existing accessories and media who want to rig it their own way. It carries the same large format RGBW 35.64 x 23.32mm sensor with a 2.9 micron pixel pitch and 16 stops of dynamic range, plus a 100G QSFP28 Ethernet port sending and receiving SMPTE-2110 live video.

This model ships with the lockable EF mount fitted, interchangeable with the optional URSA Cine PL mount, and the optional B4 broadcast lens mount lifts frame rates to 240 fps for live sport and replay. Blackmagic RAW records to the included Media Module CF with two CFexpress Type B slots, and the camera also takes the optional 8TB or 16TB Blackmagic Media Modules. Built in ND filters give 2, 4 and 6-stop IR ND.

Shooting formats run to 12,288 x 8040 in 12K 3:2 open gate at up to 80 fps, with 16:9, 17:9, 2.4:1 and 6:5 formats alongside. Set to SMPTE-2110 Live the camera outputs real time IP video up to 2160p60 over the 100G connection, with the optional Blackmagic IP10 codec adding 2160p59.94 and 2160p60, PTP v2 timing and NMOS IS-04 and IS-05 discovery and connection management.

Alongside the 100G port there are two 12G-SDI outputs, dual XLR audio inputs switchable between mic, line and AES with phantom power, and Tri-Sync and timecode reference. Dual 5 inch 1500 nit HDR touchscreens cover both sides of the body, and SRT and RTMP streaming, SMB file sharing, FTP and a browser based web media manager are built in.

Key features

• Body only configuration for custom rigs
• Large format 35.64 x 23.32mm RGBW sensor — 2.9 micron pixel pitch
• 16 stops of dynamic range
• 100G QSFP28 Ethernet for SMPTE-2110 live video in and out
• 12K 3:2 open gate at 12,288 x 8040 up to 80 fps
• Up to 240 fps with the optional B4 broadcast lens mount
• Lockable EF mount fitted, optional PL mount
• Media Module CF with two CFexpress Type B slots included
• Optional 8TB and 16TB Blackmagic Media Modules
• Built in 2, 4 and 6-stop IR ND filters
• Two 12G-SDI outputs plus dual XLR audio inputs
• NMOS IS-04/IS-05 and PTP v2 support
• Optional Blackmagic IP10 codec for 2160p59.94 and 2160p60 IP video
• SRT and RTMP direct streaming
