Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter

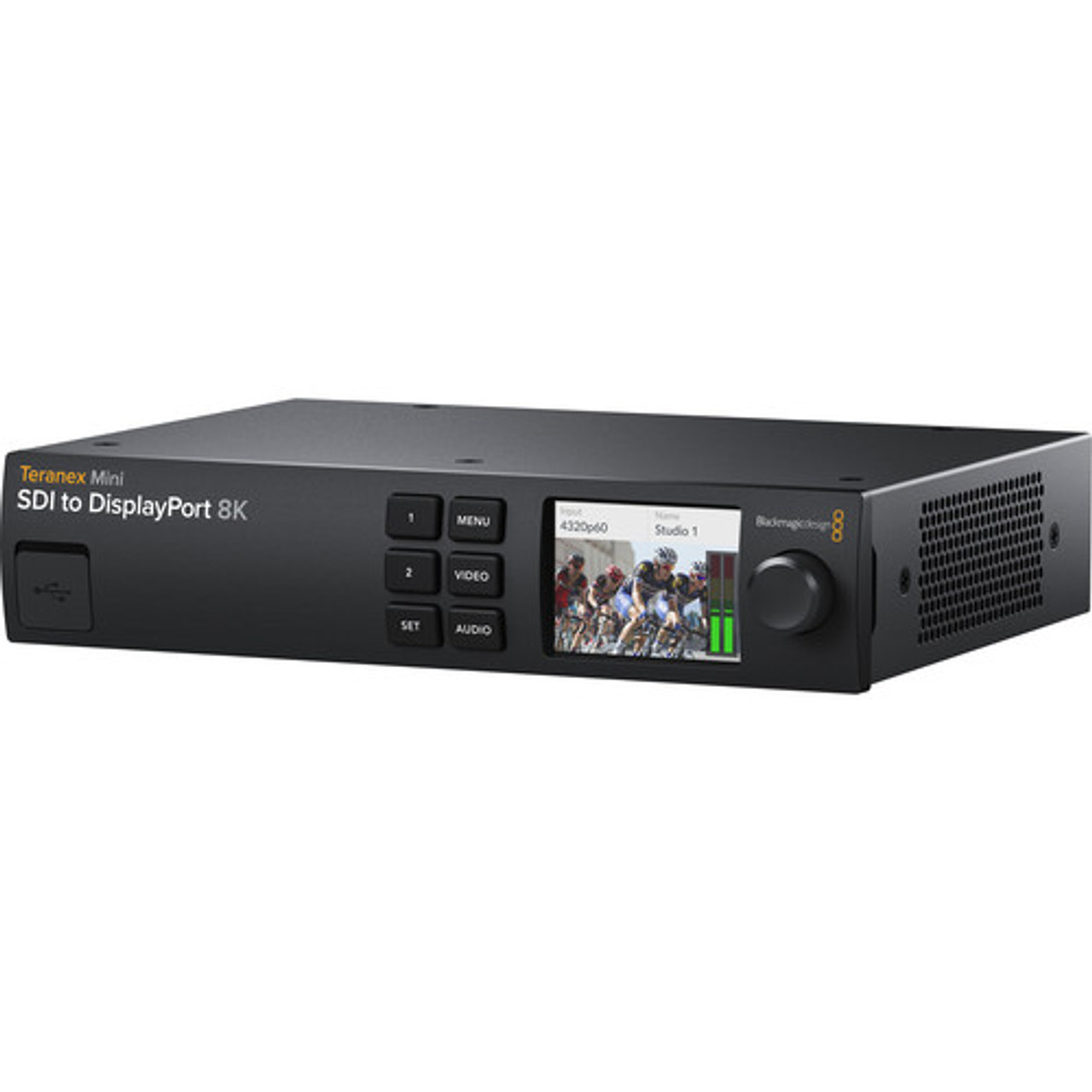

Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter. The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup.
The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color.
- Supports DCI 8K, 8K, DCI 4K, UHD, 2K, HD
- Accepts Third-Party Calibration Probes
- 12G-SDI I/O / DisplayPort/USB-C D.P. Out
- 2 x Selectable, On-Screen Scopes
- Auto-Convert 2SI and Square Division
- Supports HDR Workflows
- Supports 33-Point 3D LUTs
- Front-Panel Interface, Audio Meters
- Rack-Mountable with Separate Kit
Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
The Teranex Mini SDI to DisplayPort 8K HDR Converter from Blackmagic Design provides an advanced 8K monitoring solution. Its DisplayPort outputs enable you use pro monitors like the Apple Pro Display XDR as part of your on-set or post-production monitor setup. The four 12G-SDI inputs support 4K signals independently or an 8K input signal together, either DCI 8K or 8K video split into four UHD signals. It can use third-party calibration probes such as the SpectraCal C6, X-Rite i1 Display Pro, or the Klein K10-A probe to accurately align connected displays for precise color. The built-in, color LCD screen displays not only the video image, but it can also display two on-screen scopes selected from WFM, Parade, Vector, and Histogram options.The 8K is available on the four SDI outputs, via the single USB-C DisplayPort output, or the two full-size DisplayPort outputs for monitors that support quad HDMI inputs. If you are not connected to an 8K monitoring solution, a built-in down-converter enables you to display the 8K input video on an Ultra HD or HD monitor. This unit will convert between 2SI and square division automatically. The Mini SDI to DisplayPort 8K HDR solution supports a variety of HDR workflows including PQ and HLG, and it supports both Rec. 202 and Rec. 709 as well as 100% of the DCI-P3 format. Two independent 3D LUTs can be loaded at the same time, and you can switch between them from the unit's front panel. In addition to the LCD video screen, the front of the Teranex Mini SDI to DisplayPort 8K HDR Converter features a rotating selection knob and six front-panel buttons for navigating. Use the included rubber feet for desktop mounting or support the converter with the separately available Teranex Mini Rack Shelf.
- Converts SDI sources to DisplayPort, supporting up to DCI 8K60 input
- Quad-link 12G-SDI inputs with loop outs
- Quad-link 12G-SDI output, one USB-C DisplayPort output, and two full-size DisplayPort outputs
- Compatible with pro monitors like the Apple 32" Pro Display XDR
- Supports third-party calibration probes like the SpectraCal C6, X-Rite i1 Display Pro, and the Klein K10-A for accurate alignment on connected displays
- Supports SDR and both HLG or PQ HDR via the SDI and DisplayPort outputs
- Overlay up to two live scopes on the monitor
- Supports 3D, 10-bit LUTs with two front-panel control buttons
Video Inputs | 4 x BNC (12G-SDI) |
Audio Inputs | None |
Video Outputs | 4 x BNC (12G-SDI) (Loop Output) 2 x DisplayPort (DisplayPort 1.4) 1 x USB-C (DisplayPort 1.4) |
Audio Outputs | 2 x RCA Analog |
Other I/O | 1 x RJ45 Control 1 x USB-C |
Input Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Video Format | SDI (4:4:4/4:2:2 RGB, YUV) DCI 8K at 25/29.97/30/47.95/48/50/59.94/60 fps 8K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps DCI 2KPsF 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Output Audio Format | Analog: 48 kHz / 24-Bit |
Embedded Audio | SDI: 16-Channel |
Video Standard Compliance | SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
Display Size | 2.2" |
OS Compatibility | Windows 10 macOS 10.14 macOS 10.1 or Later *As of April, 2020: Check with manufacturer for the most up-to-date compatibility |
Power I/O | 1 x IEC C14 Input |
Power Consumption | Device: 100 to 240 VAC (35 W) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
Dimensions | 8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm |
Weight | 2.6 lb / 1.18 kg |
Package Weight | 1.35Kg |
Box Dimensions (LxWxH) | 28.96cm x 21.84cm x 8.89cm |
In The Box
- 1 x Blackmagic Design Teranex Mini SDI to DisplayPort 8K HDR Converter
- 4 x Rubber Foot
- 1 x Limited 1-Year Warranty
