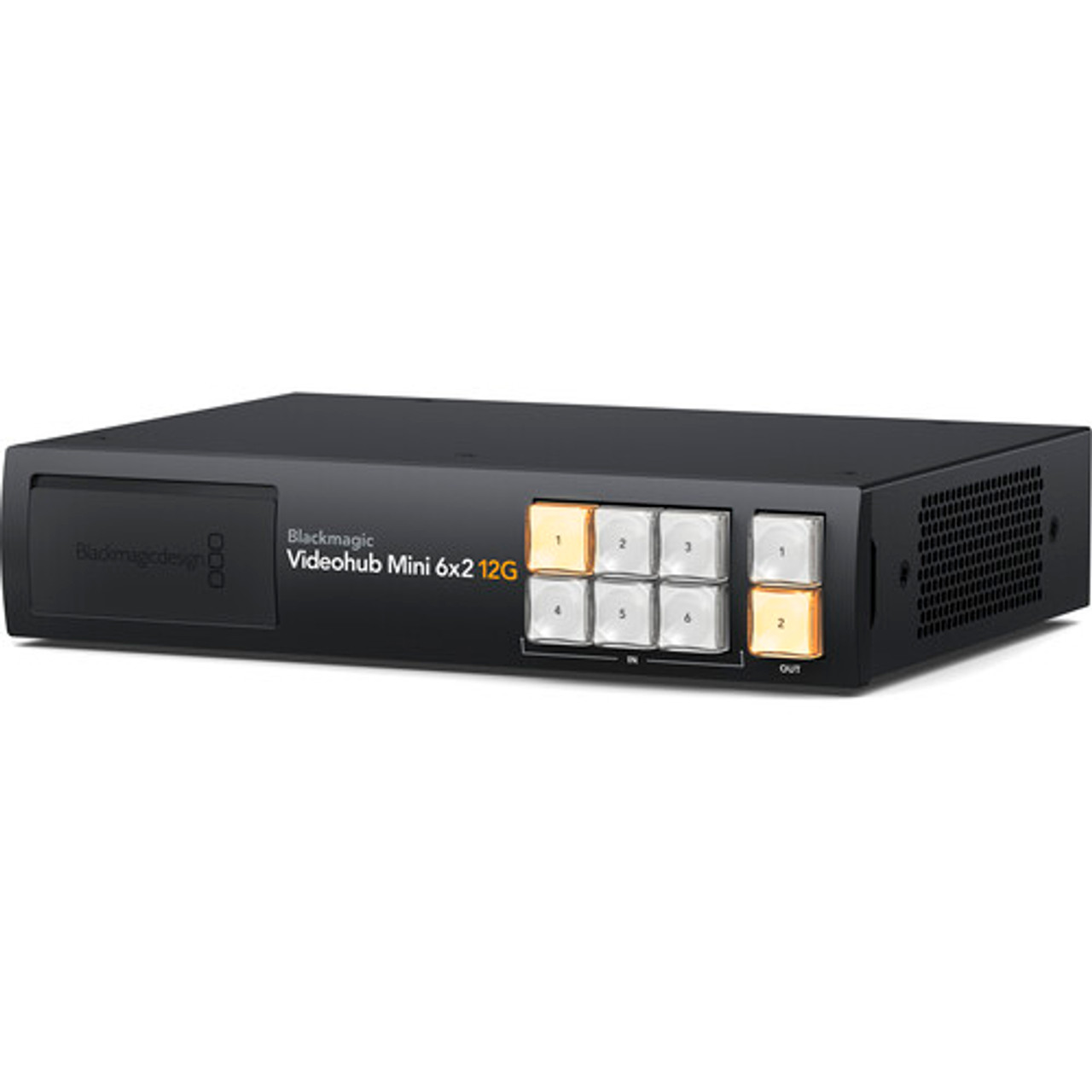

Blackmagic Design Videohub Mini 6X2 12G
SKU VHUBSMTI12G0602 Blackmagic Design
Blackmagic Design Videohub Mini 6X2 12G
SKU VHUBSMTI12G0602 Blackmagic Design
Description
The Videohub Mini 6x2 12G Router from Blackmagic Design packs six 12G-SDI inputs, six 12G-SDI loop outputs and two 12G-SDI outputs on its back panel into a chassis just half a rack width wide, built for live production flexibility. It combines SD, HD, UHD 4K and DCI 4K video, with control over the I/O ports available from the front push buttons, the knob, or an Ethernet connection for automated switching. The front panel adds its own 12G-SDI input, which overrides rear input 6 whenever a new source needs routing on the fly, plus a 12G-SDI output that mirrors rear output 2 -- and a USB-C output, separate from the SDI I/O, that registers on a connected computer as a webcam for streaming straight off the router. Dedicated reference I/O ports lock the clean switch function to a Blackburst or Tri-sync signal, so switches land cleanly between frames, and an internal universal AC supply plus a separate 12V DC input with reverse-polarity protection can be used together for power redundancy, making the 6x2 a compact companion to the 8x4 in the same Mini range.
Key features
- Six 12G-SDI inputs, six 12G-SDI loop outputs and two 12G-SDI outputs on the back panel.
- Combines SD, HD, UHD 4K and DCI 4K video.
- Control over the I/O ports from front push buttons, knob, or Ethernet.

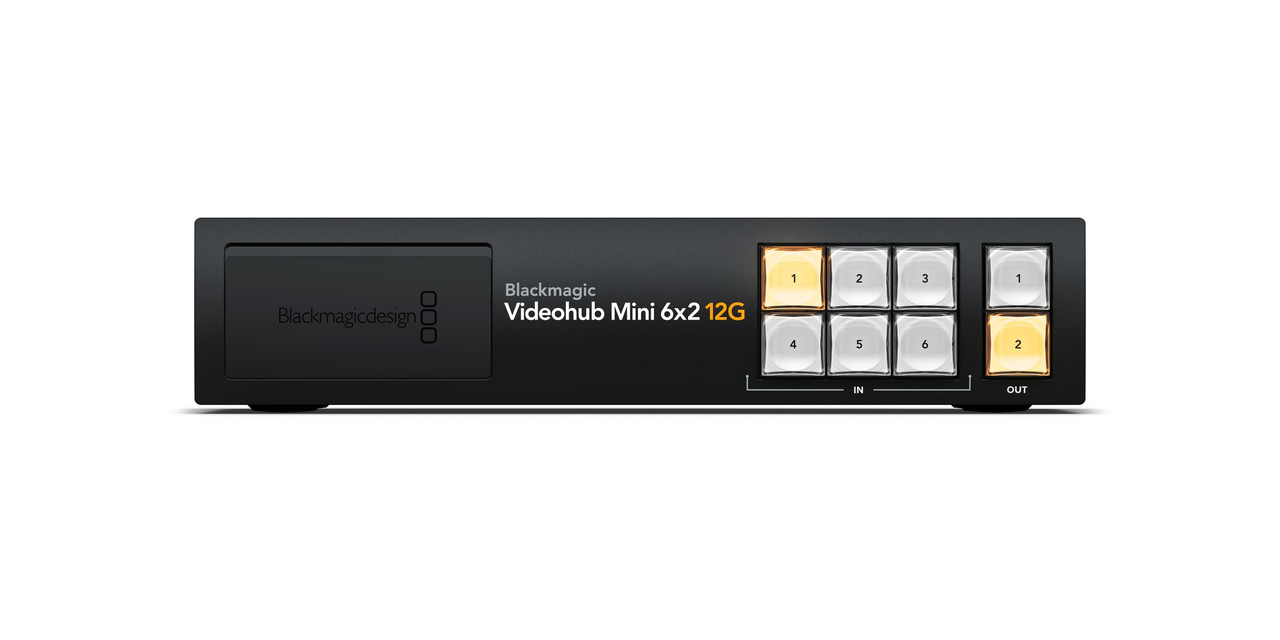

- Front panel adds a 12G-SDI input that overrides rear input 6, and a 12G-SDI output that mirrors rear output 2.
- USB-C output registers on a computer as a webcam for direct streaming from the router.
- Dedicated reference I/O locks the clean switch function to a Blackburst or Tri-sync signal.
- Internal universal AC power supply plus a separate 12V DC input with reverse-polarity protection; usable together for power redundancy.
