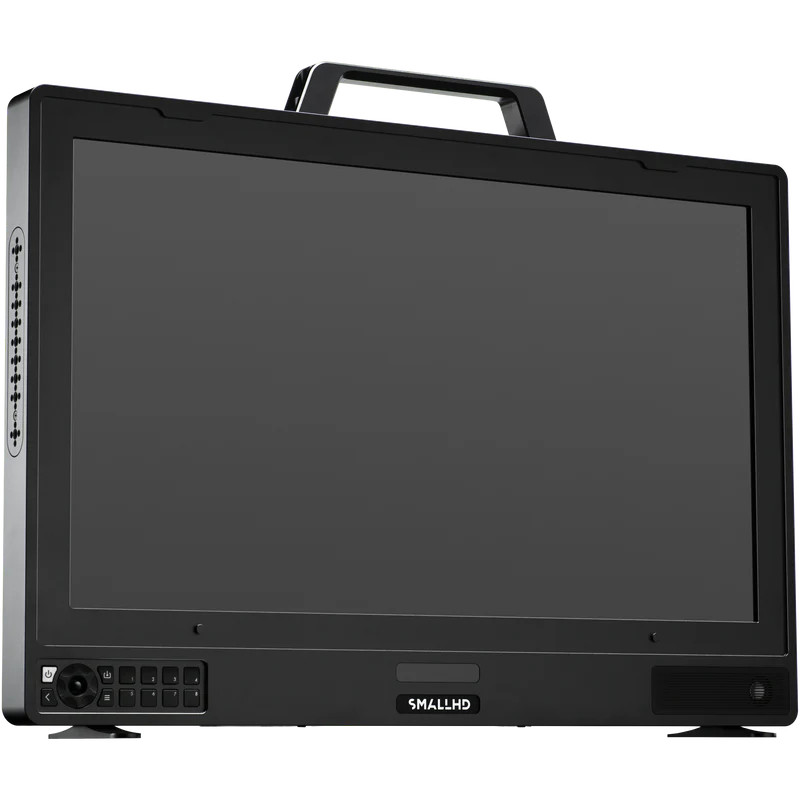

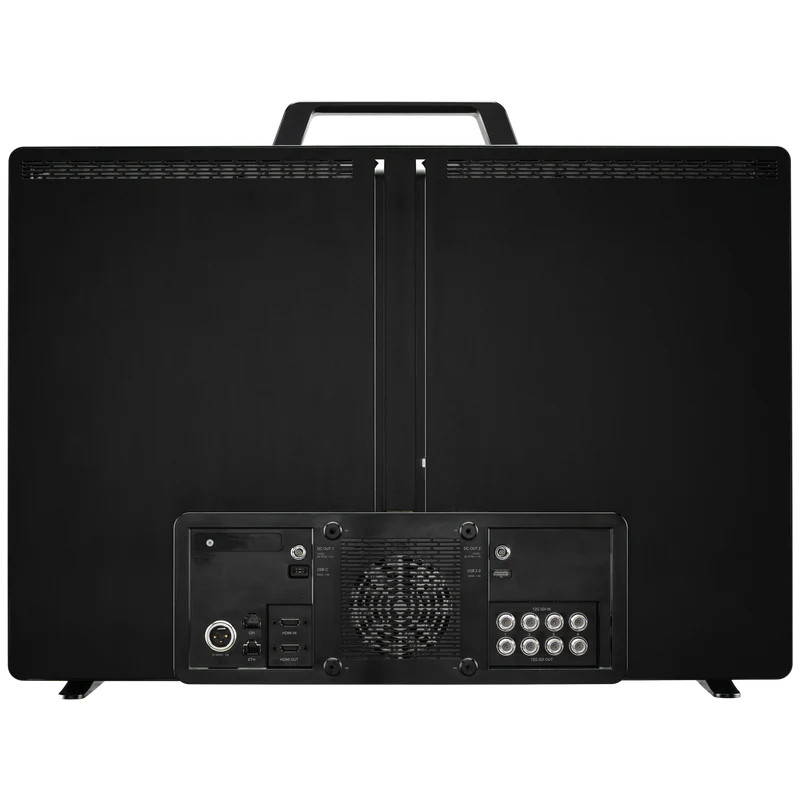

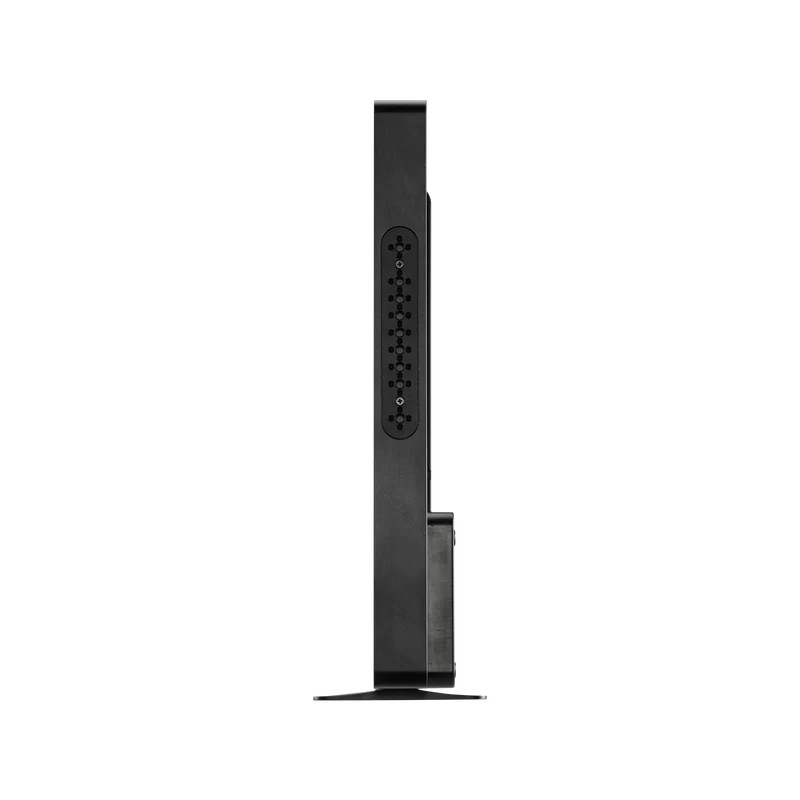

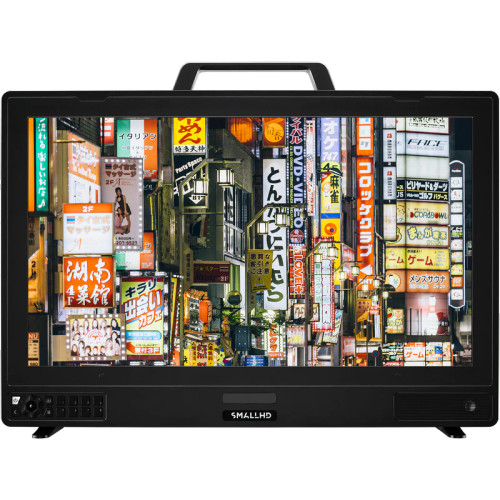

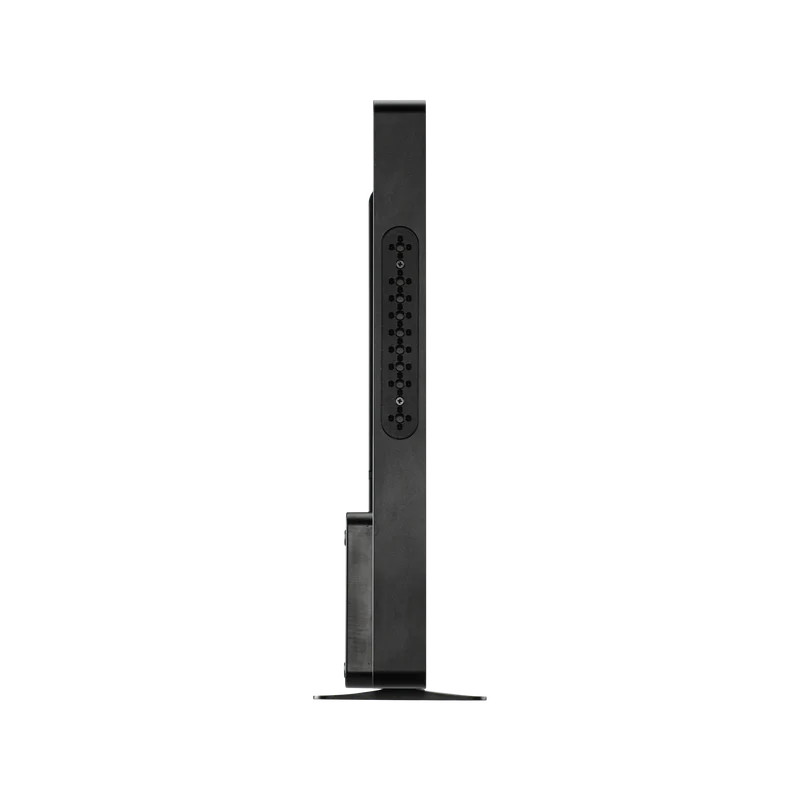

Cine 24 is the largest panel in SmallHD's High-Bright Cine series, built for 4K daylight-viewable monitoring on set or in a broadcast video village. Its 24.1" edge-lit LCD sustains 1350 cd/m2 brightness for clear viewing in direct sunlight without a sun hood or viewing tent, at 3840x2160 resolution with 10-bit colour depth and 100% DCI-P3 colour gamut. Four 12G-SDI inputs and outputs plus one HDMI 2.0 input and output handle 4K signal chains, and hot-swappable dual power inputs accept Gold Mount or V-Mount battery plates. The Unibody Smart Chassis adds a Dovetail Mounting Rail for battery and accessory mounting, further interchangeable mounting points, and two 2-pin accessory power outputs. PageOS software runs personalised frame guides, Focus & Exposure Assist, high-resolution 3D LUT overlays, histogram, vectorscope and waveform tools via customisable Page Profiles.

Key features

• 24.1" edge-lit LCD, 3840x2160 resolution, 10-bit colour depth.
• 1350 cd/m2 sustained brightness for daylight viewing.
• 100% DCI-P3 colour gamut.
• Four 12G-SDI inputs and outputs, plus one HDMI 2.0 input and output.
• Hot-swappable dual power inputs for Gold Mount or V-Mount battery plates.
• Dovetail Mounting Rail plus two 2-pin accessory power outputs.
• Runs PageOS with Focus & Exposure Assist, 3D LUT overlays, histogram, vectorscope and waveform.
