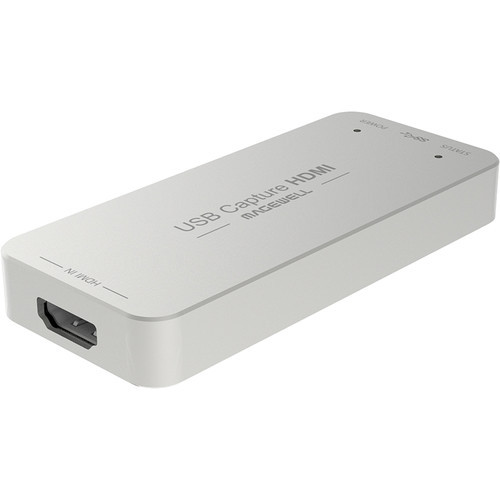

Magewell USB Capture HDMI Gen 2

SKU: 32060
(No reviews yet) Write a Review
$620.00
(Inc. GST)
$539.13
(Ex. GST)

In Stock

At a glance:

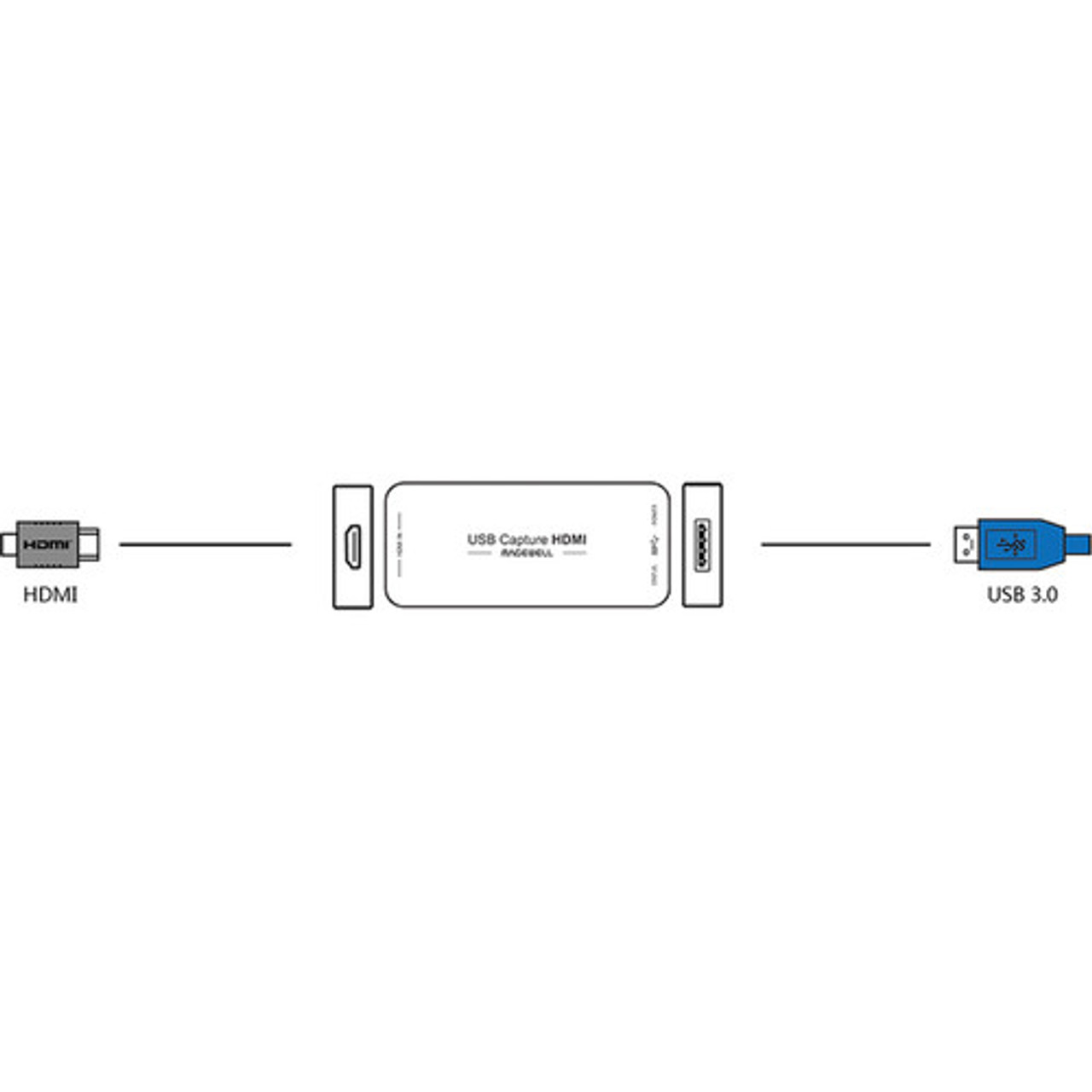

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution.

It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.No drivers needed for Windows, Mac, or LinuxAutomatically determines input video format and converts it to the specified output size and frame rateAutomatically converts input audio formats to 48 kHz PCM stereo audio64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied.

  • Supports up to 1920 x 1200p60 Resolution
  • Hardware Scaling and Deinterlacing
  • Performs Frame Rate Conversion
  • Plug-and-Play Using Existing Drivers
  • Backward Compatible with USB 2.0
  • Onboard RAM for Stream Buffering

Magewell USB Capture HDMI Gen 2

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.

Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.

No drivers needed for Windows, Mac, or LinuxAutomatically determines input video format and converts it to the specified output size and frame rateAutomatically converts input audio formats to 48 kHz PCM stereo audio64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied
Host ConnectionUSB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)
Video Input Connectors1 x HDMI (HDMI 1.4a / DVI) Female
Input Video FormatHDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
2048 x 2160
1080p: 60/75 fps
Audio Input ConnectorsNone
Embedded Audio InputHDMI: 2-Channel
OS CompatibilityWindows 7 or Later
macOS 10.9 or Later
Linux
Chrome OS
Power ConnectorNone
Power Consumption5 VDC at 0.5 A (2.5 W)
Operating Temperature32 to 122°F / 0 to 50°C
Storage Temperature-4 to 158°F / -20 to 70°C
Operating Humidity5 to 90%
Dimensions3.63 x 1.58 x 0.48" / 92.2 x 40.2 x 12.3 mm
Warranty LengthLimited 1-Year Warranty
Package Weight0.18Kg
Box Dimensions (LxWxH)12.95cm x 12.19cm x 2.54cm

In The Box

  • 1 x Magewell USB Capture HDMI Gen 2
  • 1 x USB 3.0 Cable
  • 1 x Limited 1-Year Warranty
