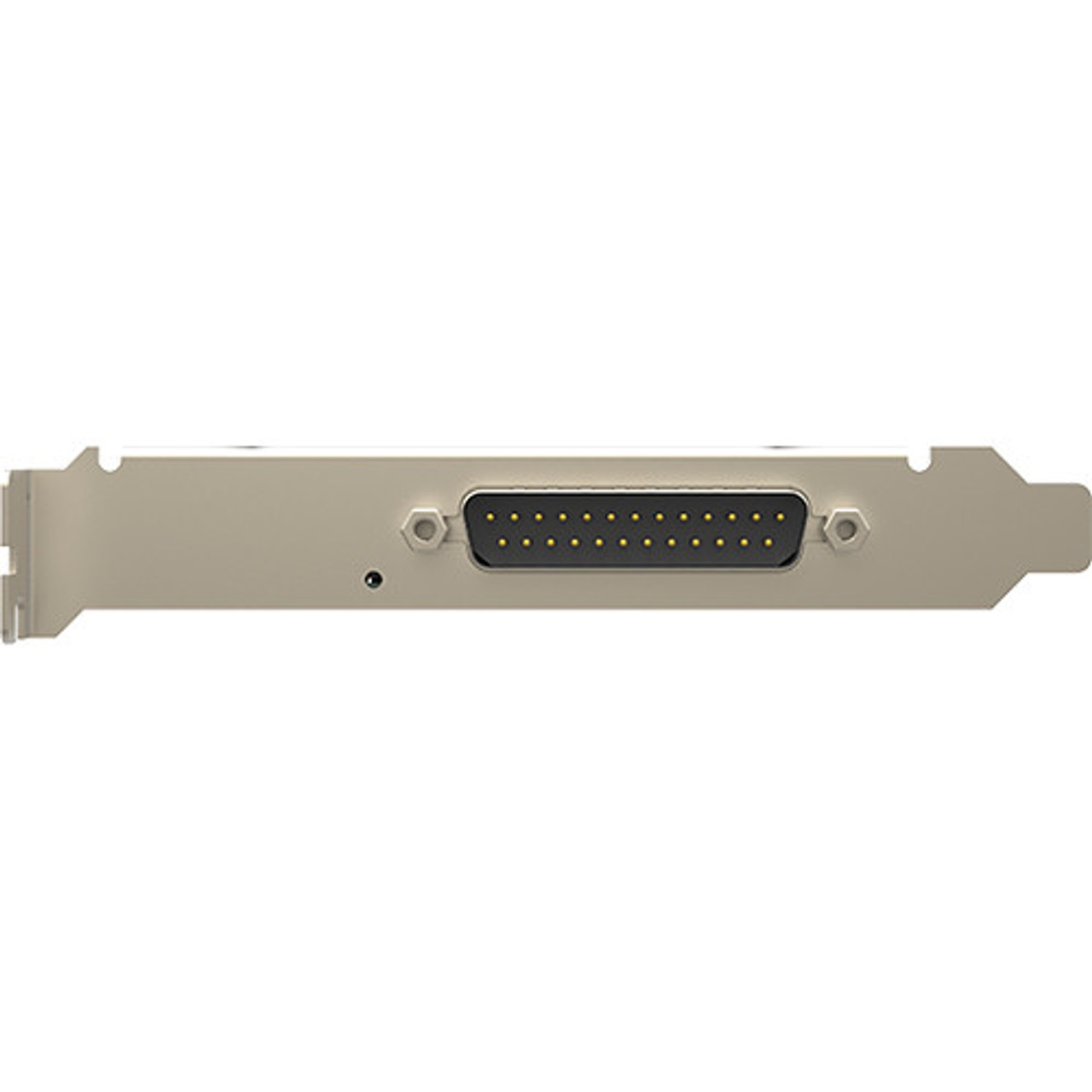

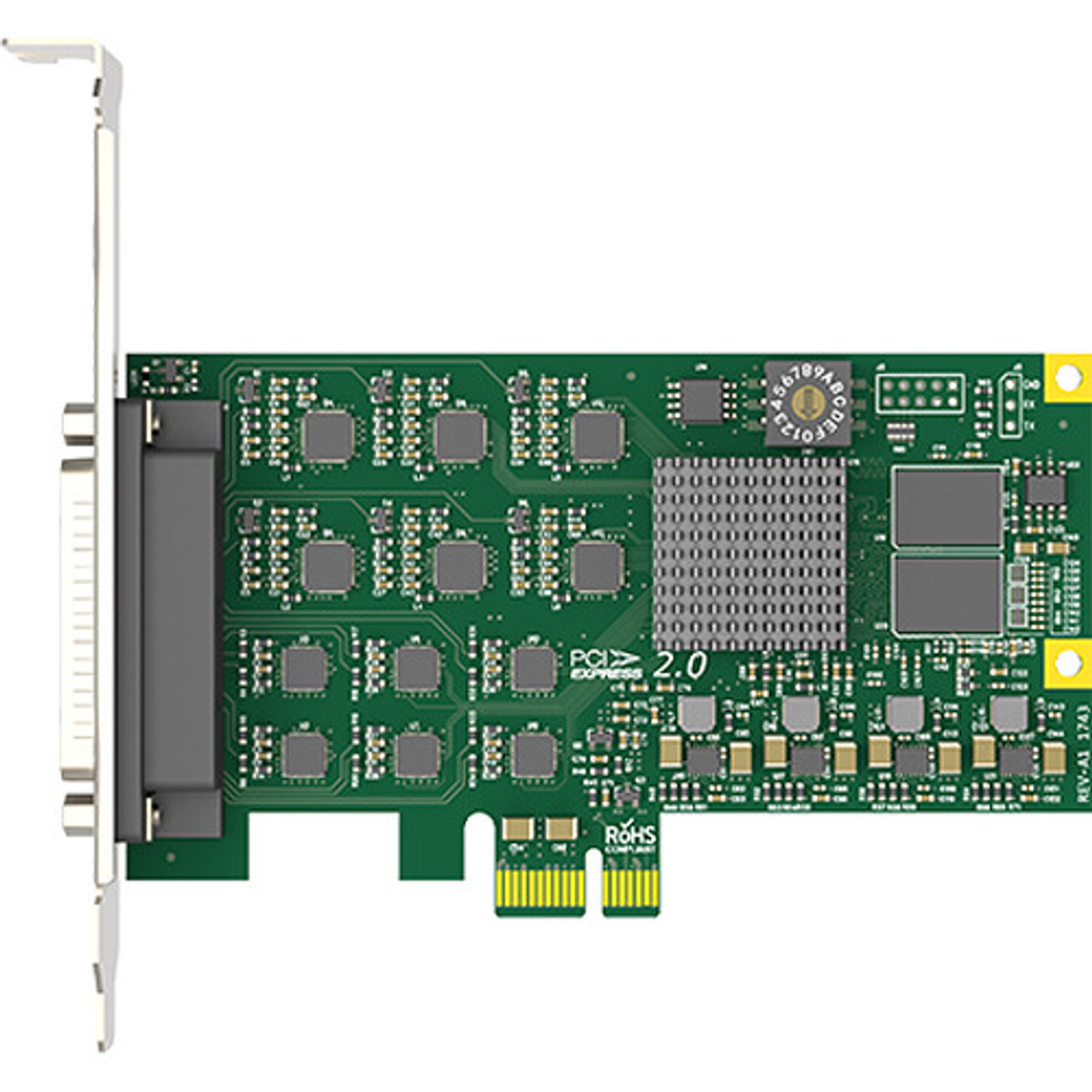

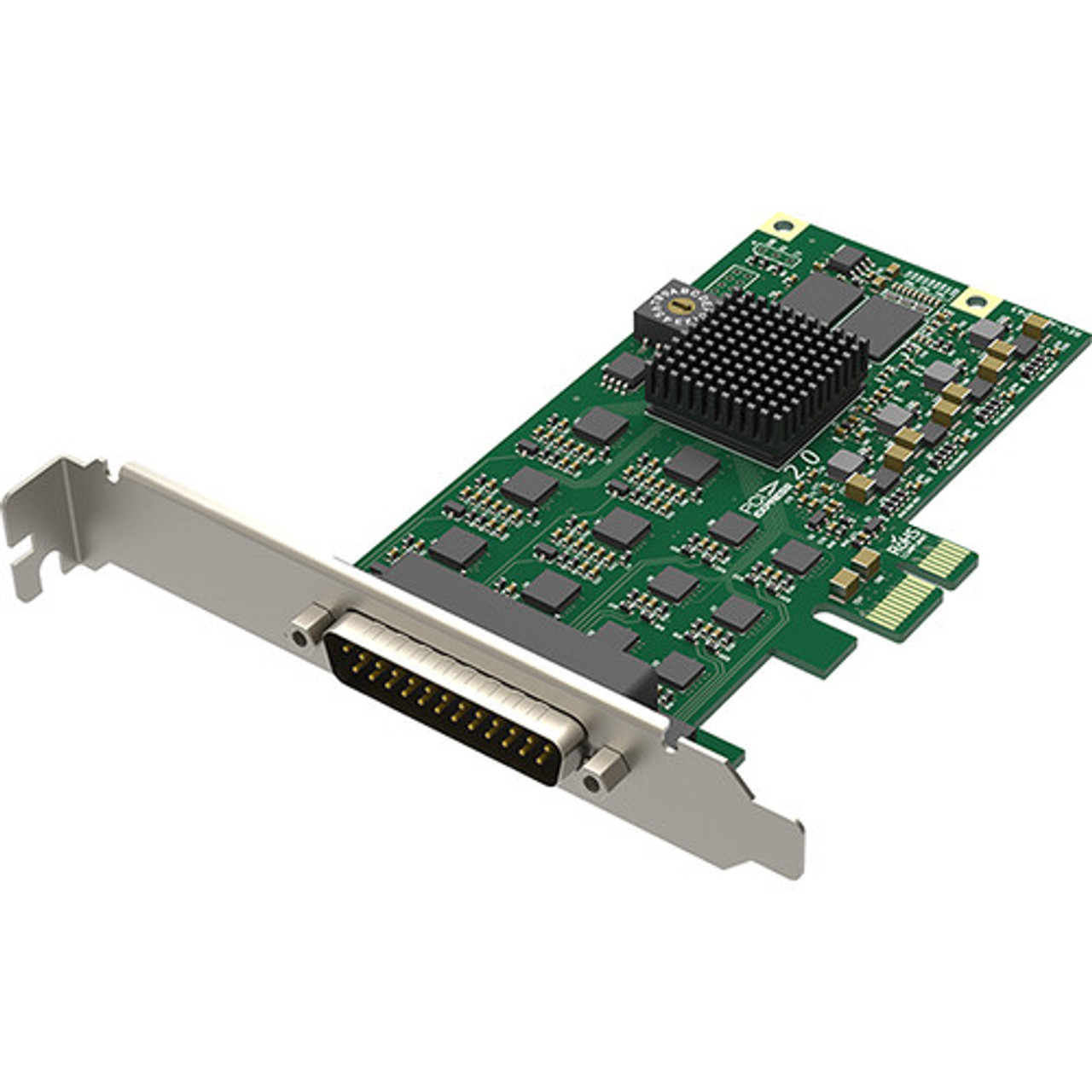

Capture up to six channels of composite A/V with the low-profile 6-Channel Pro Capture Hexa CVBS Capture Card from Magewell. This PCI Express x1 capture card is compatible with composite video formats up to 720 x 576. It is equipped with a 25-pin Sub D port for connecting the included breakout cable.The 6-Channel Pro Capture Hexa CVBS Capture Card is compatible with Windows and Linux systems.
Multiple color spaces in 8-bit formats are supported. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion.
- 6 x Composite A/V Input Channels
- PCIe x1 Interface
- Supports up to 720 x 576 Resolution
- 8-Bit Processing
- Multiple Capture Streams
- Cropping, Scaling, De-Interlacing
- Frame-Rate & Aspect-Ratio Conversion
- Windows and Linux Compatible
- DirectShow, DirectKS, V4L2 Compatible
- LP Bracket & Breakout Cable Included
Magewell 6-Channel Pro Capture Hexa CVBS Capture Card
Capture up to six channels of composite A/V with the low-profile 6-Channel Pro Capture Hexa CVBS Capture Card from Magewell. This PCI Express x1 capture card is compatible with composite video formats up to 720 x 576. It is equipped with a 25-pin Sub D port for connecting the included breakout cable.
The 6-Channel Pro Capture Hexa CVBS Capture Card is compatible with Windows and Linux systems. Multiple color spaces in 8-bit formats are supported. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11250 cards can be used and numbered in one system.
Composite-Specific Features
- Support for NTSC, PAL, and SECAM standards
- Auto detection of video input standard
Video Capture Format Support
- Image-capture resolutions up to 720 x 576 pixels
- Capture frame rates up to 30 fps
- 4:2:0 8-bit capture formats: NV12, I420, YV12
- 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
- 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
- Additional capture formats are supported via Capture SDK for DirectKS
Video Processing Features
- Two video processing pipelines with ~180 MP/s processing bandwidth for each one
- Video cropping and scaling
- Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only - Video aspect-ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
(Letterbox or Pillarbox) - Video color-format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Supports RGB, YCbCr 601, YCbCr 709 color formats
Supports limited or full quantization range
Supports limited, full & 'extended gamut' saturation range - Video frame-rate conversion
- Video OSD composition:
Supports PNG OSD image (up to 720 x 576)
Supports dynamic loading of RGBA OSD image via SDK
Host Connection | PCIe x1 (PCIe 2.0) |
Video Input Connectors | 1 x DB-25 (Composite) Male |
Input Video Format | Composite (8-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC) 576p |
Audio Input Connectors | None |
OS Compatibility | Windows 7 Windows 8 Windows 8.1 Windows 10 Windows Server Linux 12.4 Linux 14.4 Linux 16.4 Linux 17.4 Linux 17.10 Linux 18.4 Linux 6.5 Linux 7 Linux 25 Linux 26 Linux 27 Linux 6.5 Linux 2.6.35 |
Power Consumption | 6.12 W |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Operating Humidity | 5 to 90% |
Dimensions | 4.65 x 2.71" / 118.16 x 68.88 mm |
Warranty Length | Limited 1-Year Warranty |
Package Weight | 0.36Kg |
Box Dimensions (LxWxH) | 21.84cm x 19.81cm x 4.06cm |
In The Box
- 1 x Magewell 6-Channel Pro Capture Hexa CVBS Capture Card
- 1 x DB-25 to 6 A/V Cable
- 1 x Low-Profile Bracket
- 1 x Limited 1-Year Warranty
