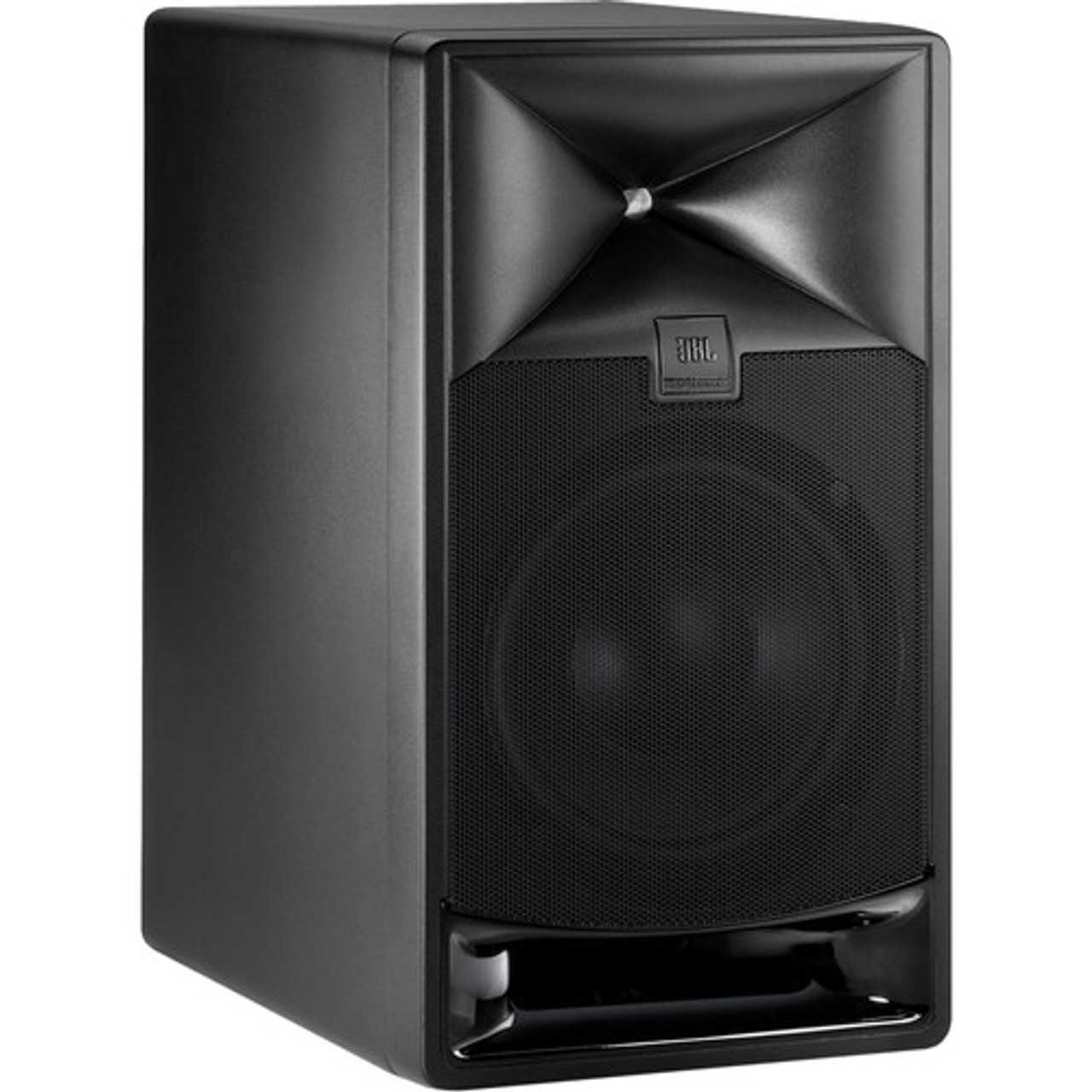

JBL 7-Series 708i 8" Master Reference Monitor (Single)
JBL 7-Series 708i 8" Master Reference Monitor (Single)
Designed as a modular and scalable monitoring solution for broadcast and post production applications, the single LSR708i 8" Master Reference Monitor from JBL can be combined with other 7 series monitors and JBL's Master Reference Monitor to create a range of systems depending on your needs. Its 8" woofer is capable of reproducing frequencies down to 35 Hz, while its high-frequency driver responds up to 36 kHz. Thanks to the 7 series' centralized amplification and processing, you do not need a power source at each location for stereo or surround set ups..
Image Control Waveguide. The Image Control Wave Guide technology allows for a seamless crossover and uncolored response in the critical dialog range, a neutral off-axis response for room-to-room consistency, and detailed imaging and coherent transition between screen channels, surrounds, and overhead speakers.
- For Post & Broadcast Applications
- 8" Woofer
- High-Frequency Response to 36 kHz
- Image Control Waveguide
- Modular & Scalable
- Mountable
- Harman HiQnet Compatible
JBL LSR708i 8" Master Reference Monitor (Single)
Designed as a modular and scalable monitoring solution for broadcast and post production applications, the single LSR708i 8" Master Reference Monitor from JBL can be combined with other 7 series monitors and JBL's Master Reference Monitor to create a range of systems depending on your needs. Its 8" woofer is capable of reproducing frequencies down to 35 Hz, while its high-frequency driver responds up to 36 kHz. Thanks to the 7 series' centralized amplification and processing, you do not need a power source at each location for stereo or surround set ups.
Image Control Waveguide
The Image Control Wave Guide technology allows for a seamless crossover and uncolored response in the critical dialog range, a neutral off-axis response for room-to-room consistency, and detailed imaging and coherent transition between screen channels, surrounds, and overhead speakersDriver Technology
Meeting the dynamic range and extended frequency response requirements of today's production formats, 7 Series incorporates JBL's "Super Drivers" that can deliver high-frequency response beyond 30 kHzCustom Low-Frequency Driver
The 728G 5" high-excursion low frequency driver delivers continuously high output with minimal power compression and low frequency response into the 30 Hz rangeModular and scalable for number of channels and room size7 Series Monitors and the JBL M2 Master Reference Monitor can be combined to produce a wide range of systemsCompact enclosures and mounting hardware allow versatile mounting options and unobstructed sight linesCentralized amplification and processing eliminates the requirement for power source at each speaker locationBSS BLU link Networked Audio for ease interface and reduced system noiseHarman HiQnet equipped components can be centrally controlled via hardware, software or wireless tabletFrequency Response | -1.5 dB @ 45 Hz to 23 kHz |
Frequency Range | 35 Hz to 36 kHz |
Maximum SPL | >108 dB SPL @ 1 m (80 Hz to 20 kHz) |
Max Peak SPL | >114 dB SPL @ 1 m (80 Hz to 20 kHz) |
Woofer | 8" (203.2 mm) |
Crossover Frequency | 1.7 kHz |
Input Type | Phoenix Terminals accept 12 gauge speaker wire |
Enclosure | Birch plywood reinforced for mounting |
Mounting | Bottom and rear mounting points, 4-hole mounting pattern |
Dimensions (H x W x D) | 17.25 x 9.75 x 14.00" (438 x 248 x 356 mm) |
Weight | 27 lb (12.3 kg) |
Packaging Info | |
Package Weight | 29.35 lb |
Box Dimensions (LxWxH) | 20.6 x 14.1 x 12.4" |
In The Box
- 1 x JBL LSR708i 8" Master Reference Monitor (Single)
- 1 x Limited 5-Year Warranty
