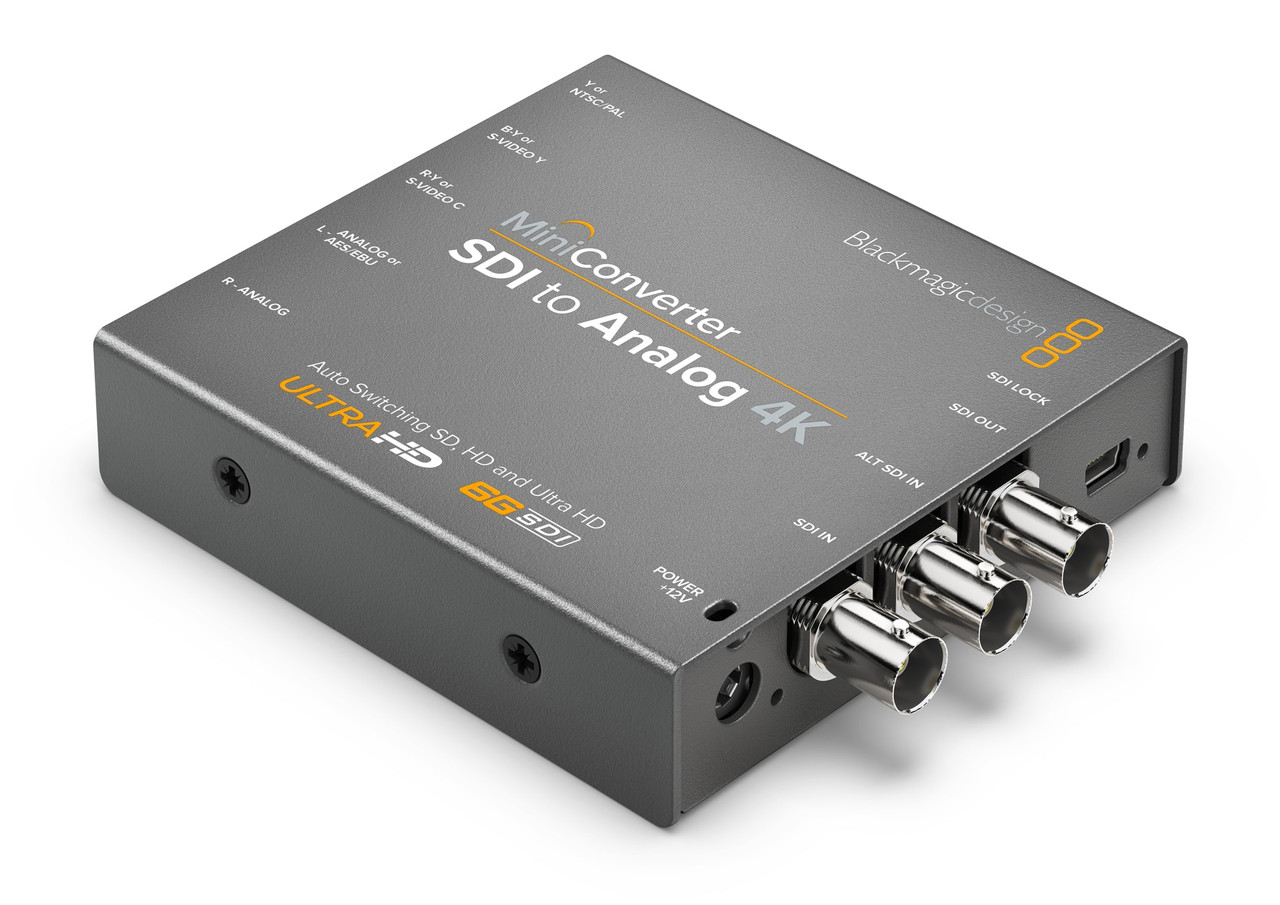

The Mini Converter SDI to Analog 4K takes a Single Link SD, HD, 3G or 6G-SDI signal and converts it down to analogue SD or HD component, composite or S-Video output, giving SDI equipment a way to feed standard analogue monitors and other analogue gear. Using 6G-SDI technology, it accepts source resolutions up to Ultra HD 4K (3840 x 2160) at up to 30 fps and DCI 4K (4096 x 2160) at 23.98p, 24p and 25p, as well as Single Link SD, HD and 3G-SDI signals, automatically detecting and switching between input formats. A redundant SDI input backs up the main feed, with the SDI signal also looped through for a downstream device. Audio comes off the SDI stream as analogue or AES/EBU digital, at 24-bit, 48kHz, with control available via DIP switches or software and firmware updates loaded over USB 2.0. A 12V universal power supply is included.
