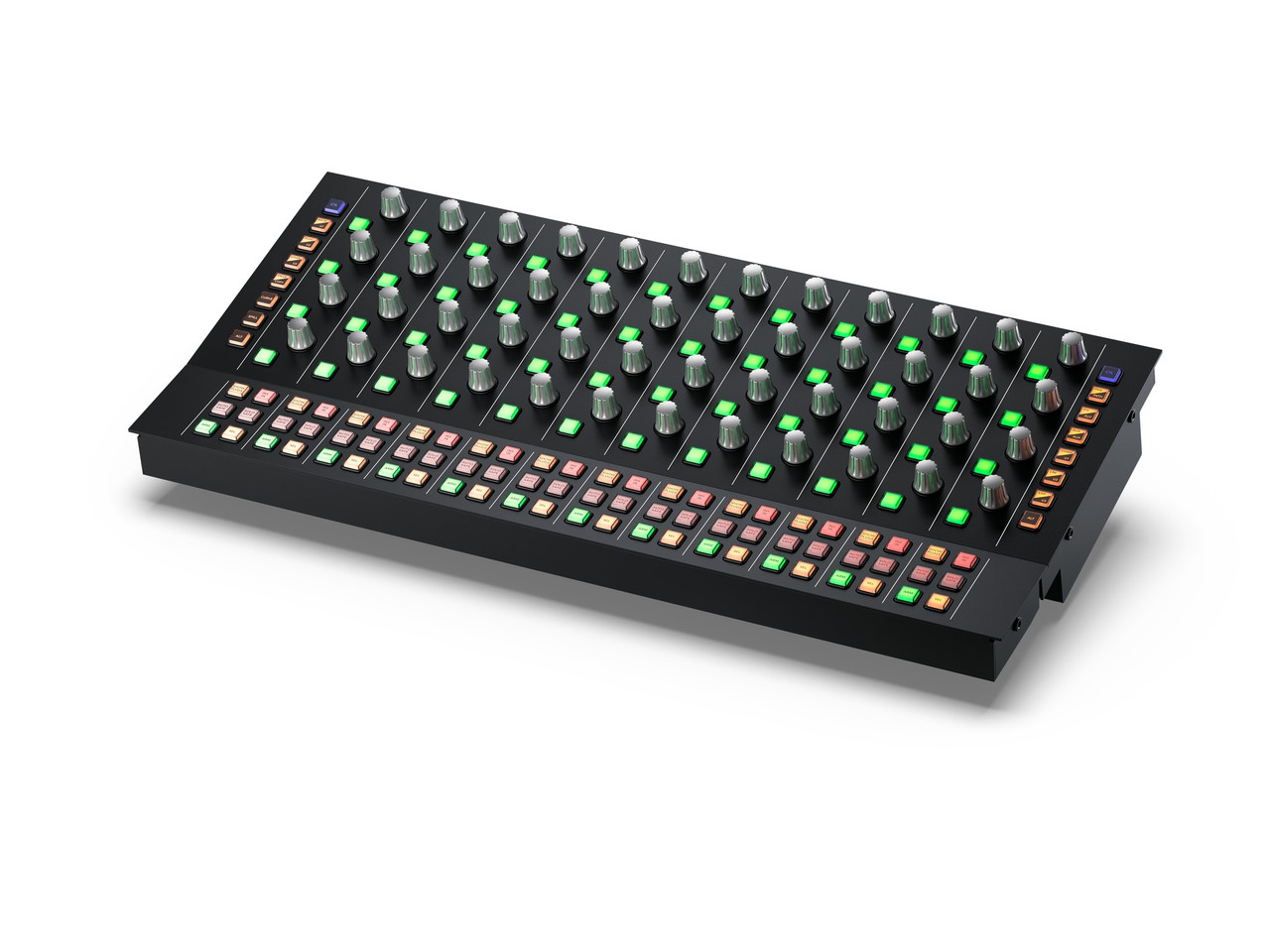

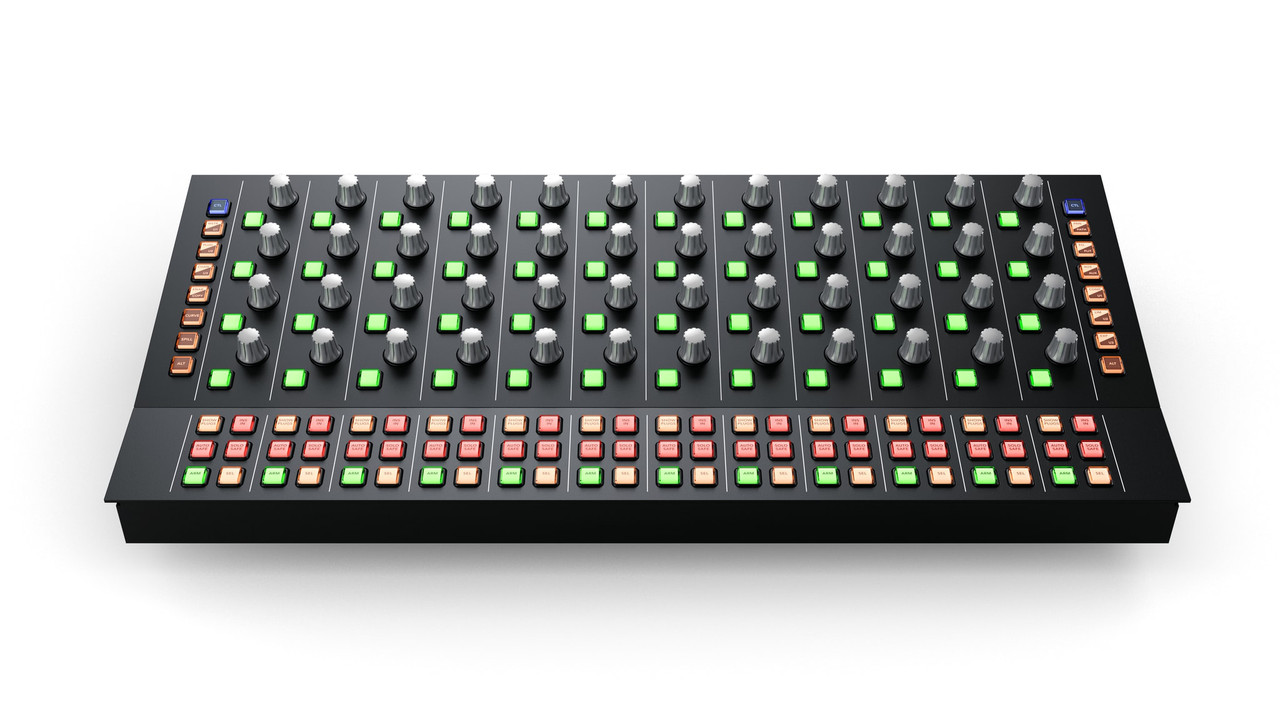

The Fairlight Console Channel Control is a multi function panel that extends the channel faders in a Fairlight console. It carries 12 groups of touch sensitive control knobs and illuminated buttons, putting hands-on processing control into the console surface itself. The panel mounts in the Fairlight studio console chassis alongside the Channel Fader, LCD Monitor and Audio Editor panels.

Each group can be assigned to a single channel, to the 12 adjacent fader channels or to the master bus. That assignment flexibility gives fast access to 192 different parameter controls per channel, so channel processing is adjusted directly from the surface rather than through menus — one panel working a single channel in depth, or spread across a whole fader bay.

Selections made on the panel drive the Fairlight Console LCD Monitor, so a precise display of every change appears as you make it. It is designed to work alongside the Fairlight Console Channel Fader, extending the 12 fader channels with dedicated processing control in each console bay.

Connection is a single Ethernet cable supporting 10/100/1000 BaseT. Power comes from an internal 100-240V AC 50/60Hz supply with a standard IEC C14 mains input, drawing a maximum of 20W, with an operating range of 0° to 40°C and 0% to 90% non-condensing humidity.

Key features

• Multi function panel extending the console channel faders
• 12 groups of touch sensitive control knobs
• Illuminated buttons in every control group
• Assignable to a single channel, the 12 adjacent fader channels or the master bus
• Fast access to 192 parameter controls per channel
• Selections drive the Fairlight Console LCD Monitor for a precise display of changes
• Designed to pair with the Fairlight Console Channel Fader
• Part of the modular Fairlight console panel family
• Ethernet connection supporting 10/100/1000 BaseT
• Internal 100-240V AC 50/60Hz power supply with IEC C14 input
• 20W maximum power draw
• 0° to 40°C operating temperature
