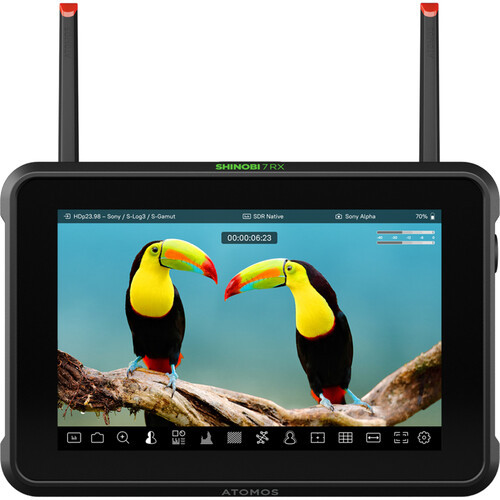

The Shinobi 7 RX is a 7" 2200 cd/m2 HDR on-camera monitor built for live production — a monitor only, with no recording to media. Its 1920x1200 touchscreen pairs HD 3G-SDI with 4K60 HDMI 2.0 loop-through input and output, so it drops into mixed SDI/HDMI chains. As a wireless receiver in an Atomos TX/RX environment, it can display 4K footage over Wi-Fi. Camera control and touch-to-focus are wired USB-C functions, with Z CAM support via an optional USB-C-to-serial cable, plus LANC control. AtomOS drives the interface, with 3D LUT support, a 10-stop dynamic range and a variety of supported log formats for accurate monitoring. Dual L-series battery slots and USB-C PD input keep it powered on set.

Key features

• 7" 1920x1200 HDR touchscreen, 2200 cd/m2 brightness.
• HD 3G-SDI and 4K60 HDMI 2.0 loop-through input/output.
• Wireless receiver — displays 4K footage remotely via Wi-Fi in an Atomos TX/RX setup.
• Camera control and touch-to-focus via wired USB-C, with Z CAM support via an optional USB-C-to-serial cable.
• AtomOS interface with 3D LUT support and LANC control.
• 10-stop dynamic range; supports a variety of log formats.
• Dual L-series battery slots plus USB-C PD input.
• Monitor only — no recording to media.
