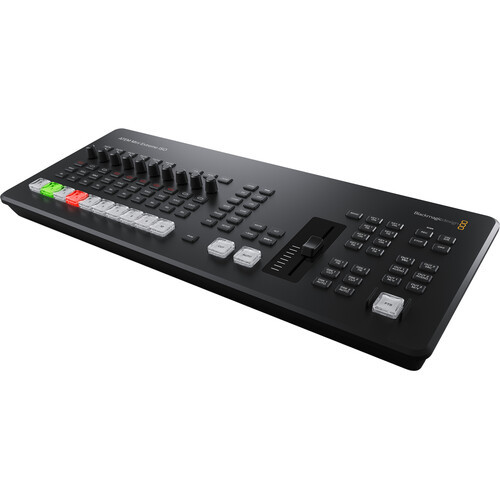

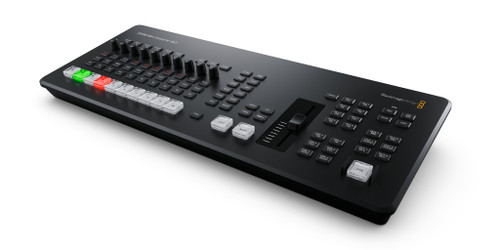

The ATEM Mini Extreme ISO G2 is an 8-channel HDMI live production switcher for live streaming, built around a redesigned integrated control panel with a hardware fader and backlit NKK red/green source-select buttons. It streams via RTMP over Ethernet, and its USB connection can also present the switcher's output to a computer as a webcam. The G2 update adds 1G and 10G Ethernet ports and a CFexpress slot for on-board recording, alongside dual USB-C and Thunderbolt ports and three independently assignable HDMI outputs for monitoring or downstream feeds. A 26-input, 2-channel audio mixer takes MADI and analogue line/mic XLR sources alongside the HDMI inputs, with an input frame rate and format converter keeping mismatched sources in sync. Four upstream and two downstream keyers support layered production, and an HD multiview shows up to 16 sources at once — all inputs and outputs run up to 1080p60.

Key features

• 8-channel HDMI live production switcher with a redesigned integrated control panel.
• Supports input and output up to 1080p60.
• Live streaming via RTMP over Ethernet, plus a USB output that can present the program as a webcam.

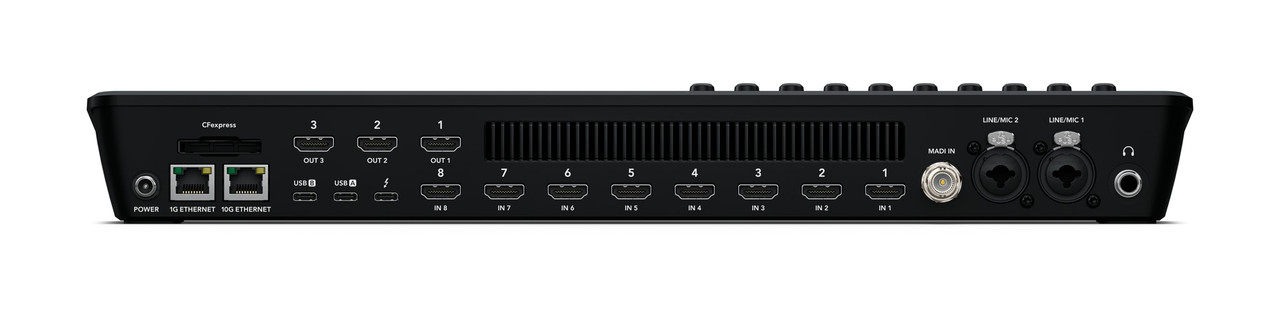

• 1G and 10G Ethernet ports, plus a CFexpress slot for recording.
• Dual USB-C and Thunderbolt ports.
• Three independently assignable HDMI outputs.
• 26-input, 2-channel audio mixer with MADI input and analogue line/mic XLR inputs.
• HD multiview output with up to 16 views, 4 upstream and 2 downstream keyers, and an input frame rate and format converter.
