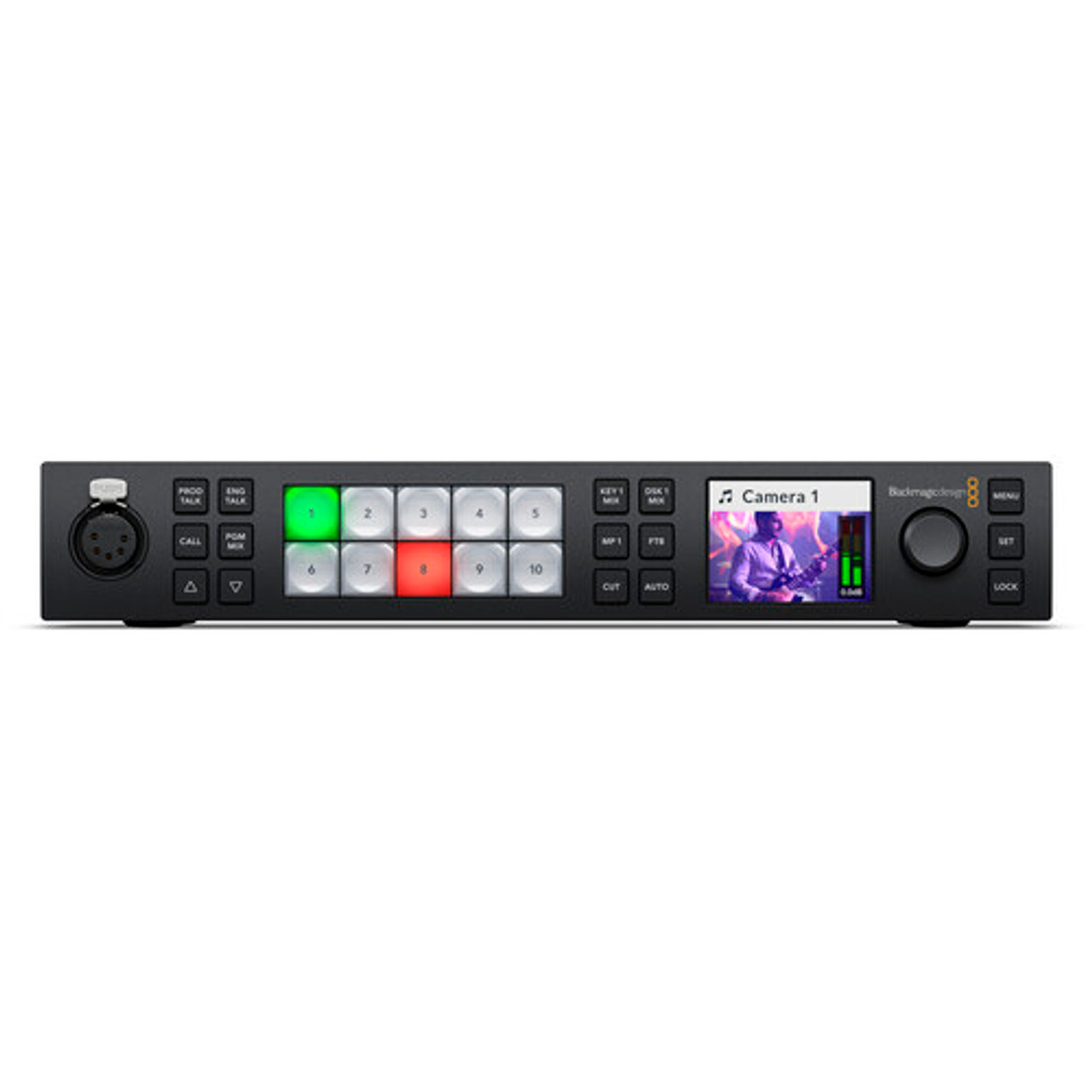

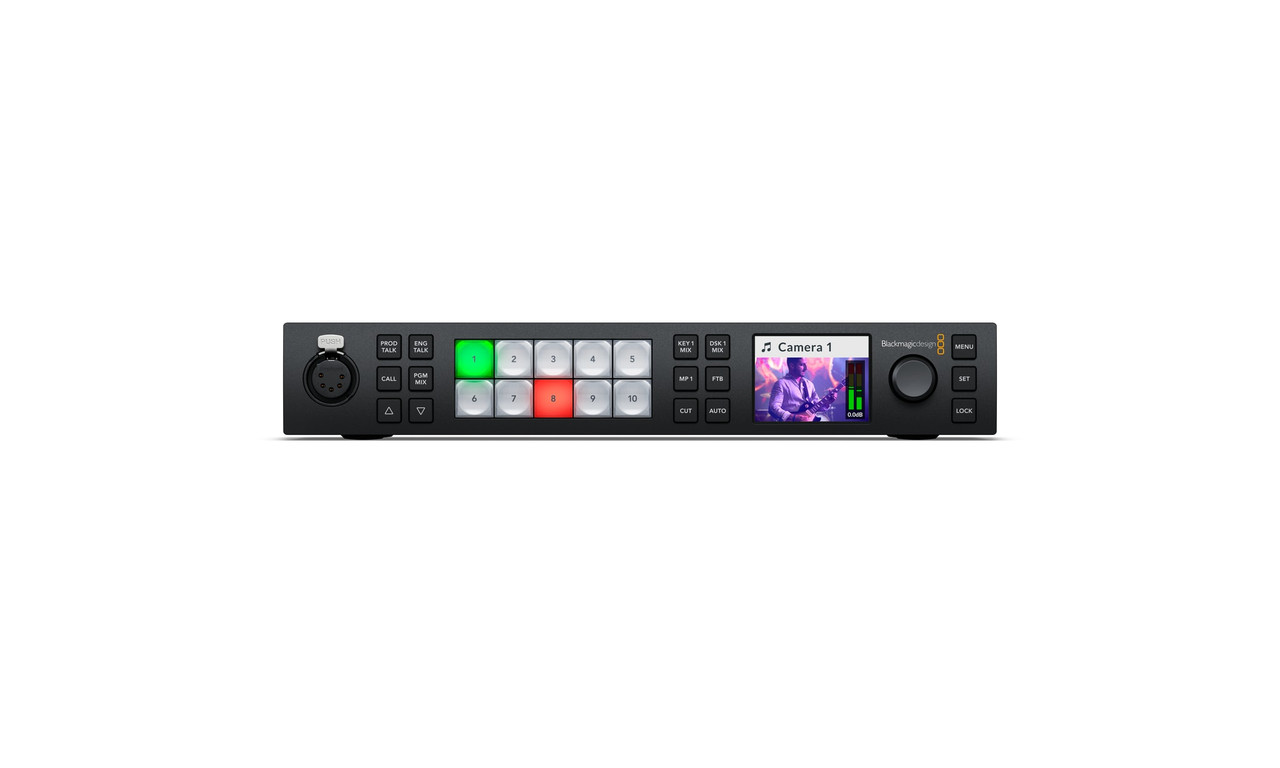

The ATEM 1 M/E Constellation 4K is the entry model in Blackmagic's 4K Constellation range, adding UHD 4K capability and 12G-SDI ports to the familiar Constellation switcher construction. Ten individual 12G-SDI inputs support 12G/3G/HD-SDI signals and deliver to six 12G-SDI outputs, or to a webcam output via USB-C. A multiview output gives up to 16 routable windows, showing inputs, keyed video, graphics and stills from the media pool alongside the programme output, and each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio. A reference video input is built in, and every input carries its own frame synchroniser, frame rate converter and format converter, so cameras, formats, non-genlocked sources and computer video can all be mixed and matched. Upstream and downstream keyers and effects run live and in real time with no rendering required, across 4 upstream and 1 downstream keyer with chroma and luma keying plus colour and pattern generators. Control runs from the integrated front panel, optional Blackmagic ATEM panels, or downloadable software for Mac and Windows.

Key features

• 10 x 12G-SDI inputs supporting 12G/3G/HD-SDI signals, delivering to 6 x 12G-SDI outputs, or webcam output via USB-C.
• Multiview output with up to 16 routable windows, showing inputs, keyed video, graphics, media-pool stills and programme output.
• 28-channel built-in Fairlight audio mixer.
• Built-in reference video input.
• Frame synchroniser, frame rate converter and format converter on every input, for mixing non-genlocked cameras and computer sources.
• 4 upstream and 1 downstream keyer, with chroma/luma keying and colour/pattern generators.
• Controllable from the integrated front panel, optional Blackmagic ATEM panels, or downloadable software (Mac/Windows).
