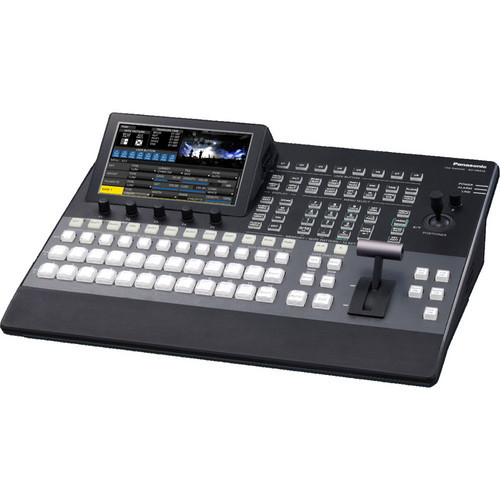

The AV-HS410E is a compact HD/SD multi-format live production switcher, pairing broadcast-standard SDI and DVI I/O with an integrated colour screen and chroma-key tools built for studio and OB truck switching desks.

Standard I/O with room to grow

Nine standard inputs (eight SDI, one DVI) and six standard outputs (five SDI, one DVI) cover a typical desk, expandable by four more inputs and outputs with optional hardware.

A colour screen built into the panel

An integrated 7.0-inch (17.8cm) multi-mode colour LCD at 800 x 480 resolution displays menus, an image monitor and a waveform/vectorscope, so the operator can monitor without an external screen.

Chroma keying and multiviewer tools

Primatte chroma keying and an enhanced MultiViewer display support layered production work, alongside video memory, memory preview, and shot and event memory for repeatable camera and transition set-ups.

Plug-in expansion for different studios

Plug-in API functionality lets the switcher be adapted to different studio requirements as workflows change, extending the standard I/O and control set beyond its out-of-the-box configuration.

Key features

• 9 standard inputs: 8 SDI and 1 DVI.
• 6 standard outputs: 5 SDI and 1 DVI.
• Expandable by 4 more inputs and 4 more outputs with optional hardware (not included).
• Integrated 7.0-inch (17.8cm) multi-mode colour LCD, 800 x 480 resolution.
• Built-in screen shows menus, an image monitor, and waveform/vectorscope.
• Primatte chroma keying and an enhanced MultiViewer display.
• Video memory, memory preview, shot and event memory.
• Supports plug-in API functionality for expansion.
