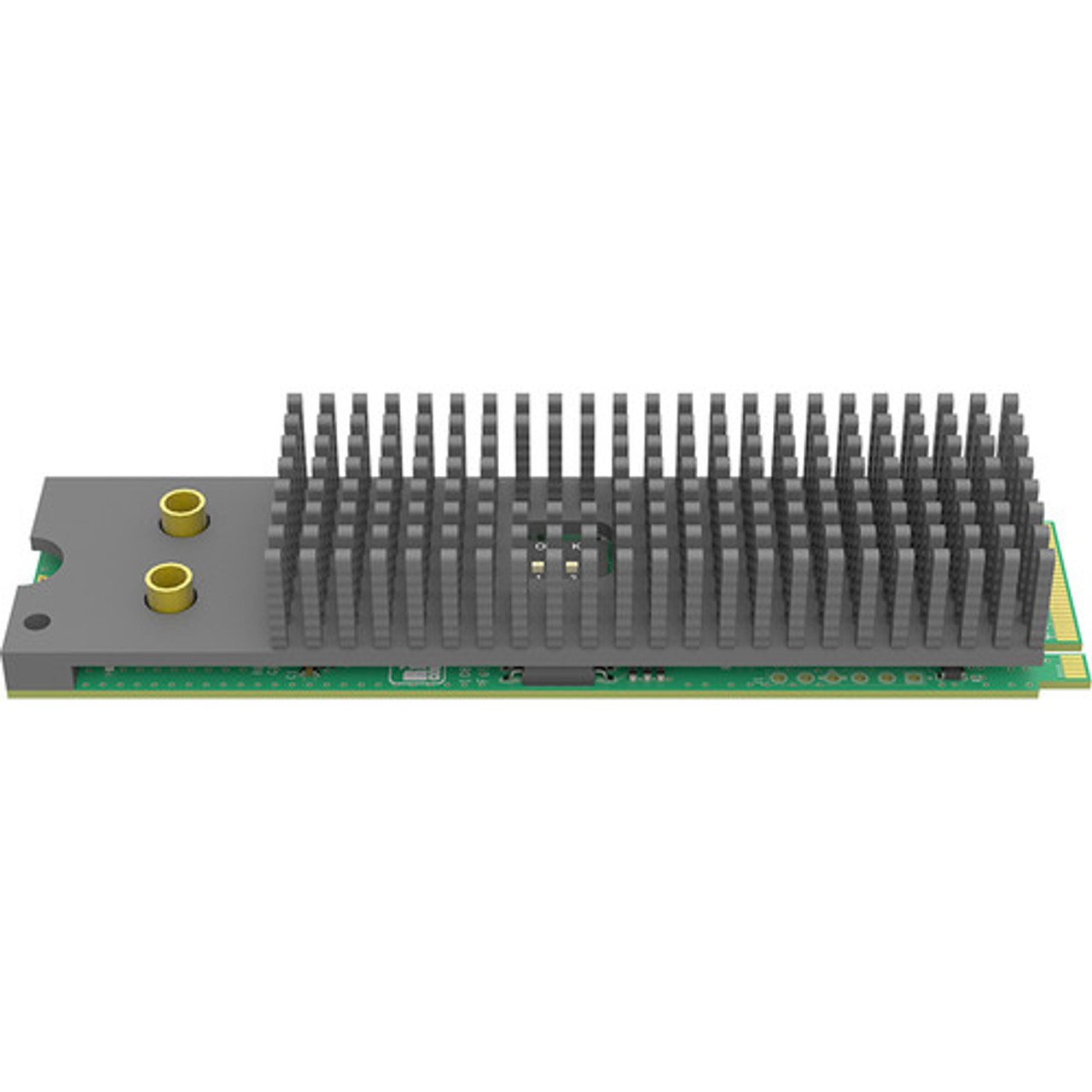

The Eco Capture Dual SDI M.2 takes two SDI inputs simultaneously — 2K/3G/HD/SD-SDI — each capturing up to 2048×1080 resolution with embedded audio to the host computer independently of the other. It's built in the compact M.2 (PCIe 2.0) form factor for compact and thin-form-factor PCs — including tablet computers and other small-form-factor systems — where full-size PCIe slots are at a minimum. The card carries two native MMCX input connectors, supplied with MMCX-to-BNC adapter cables, and is rated for 24/7 operation, with an LED indicator showing input state — idle, signal locked, memory failure, or FPGA configuration. Processing on board includes resolution scaling, timestamping, and a high-fidelity pipeline, with support for a range of output colour spaces. It's compatible with Windows and Linux operating systems.

Key features

• Two SDI inputs (2K/3G/HD/SD-SDI) captured simultaneously, each with embedded audio.
• Captures up to 2048×1080 resolution per input.
• M.2 (PCIe 2.0) card, small-form-factor design.
• Two native MMCX input connectors; MMCX-to-BNC adapter cables included.
• Rated for 24/7 operation.
• LED status indicator (idle / signal locked / memory failure / FPGA configuration).
• On-board resolution scaling, timestamping, and high-fidelity processing pipeline.
• Support for multiple output colour spaces.
