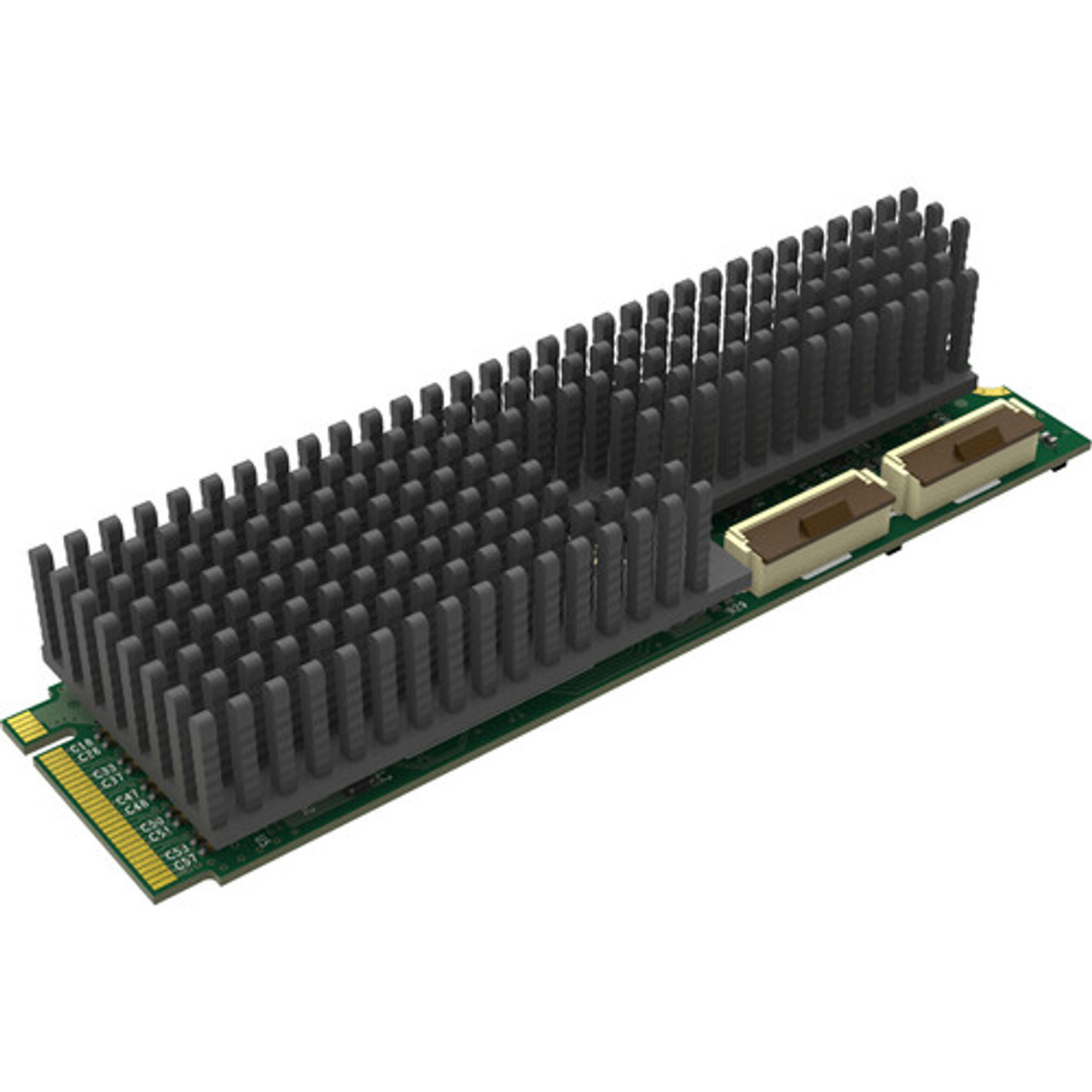

The Eco Capture Dual HDMI M.2 takes two HDMI inputs simultaneously, each capturing up to 2048×2160 resolution with embedded audio to the host computer independently of the other. It's built in the compact M.2 (PCIe 2.0) form factor for compact and thin-form-factor PCs — including tablet computers and other small-form-factor systems — where full-size PCIe slots are at a minimum. It's rated for 24/7 operation, with an LED indicator showing input state — idle, signal locked, memory failure, or FPGA configuration. Processing on board includes resolution scaling, timestamping, and a high-fidelity pipeline, with support for a range of output colour spaces. It's compatible with Windows and Linux operating systems.

Key features

• Two HDMI inputs captured simultaneously, each with embedded audio.
• Captures up to 2048×2160 resolution per input.
• M.2 (PCIe 2.0) card, small-form-factor design.
• Rated for 24/7 operation.
• LED status indicator (idle / signal locked / memory failure / FPGA configuration).
• On-board resolution scaling, timestamping, and high-fidelity processing pipeline.
• Support for multiple output colour spaces.
