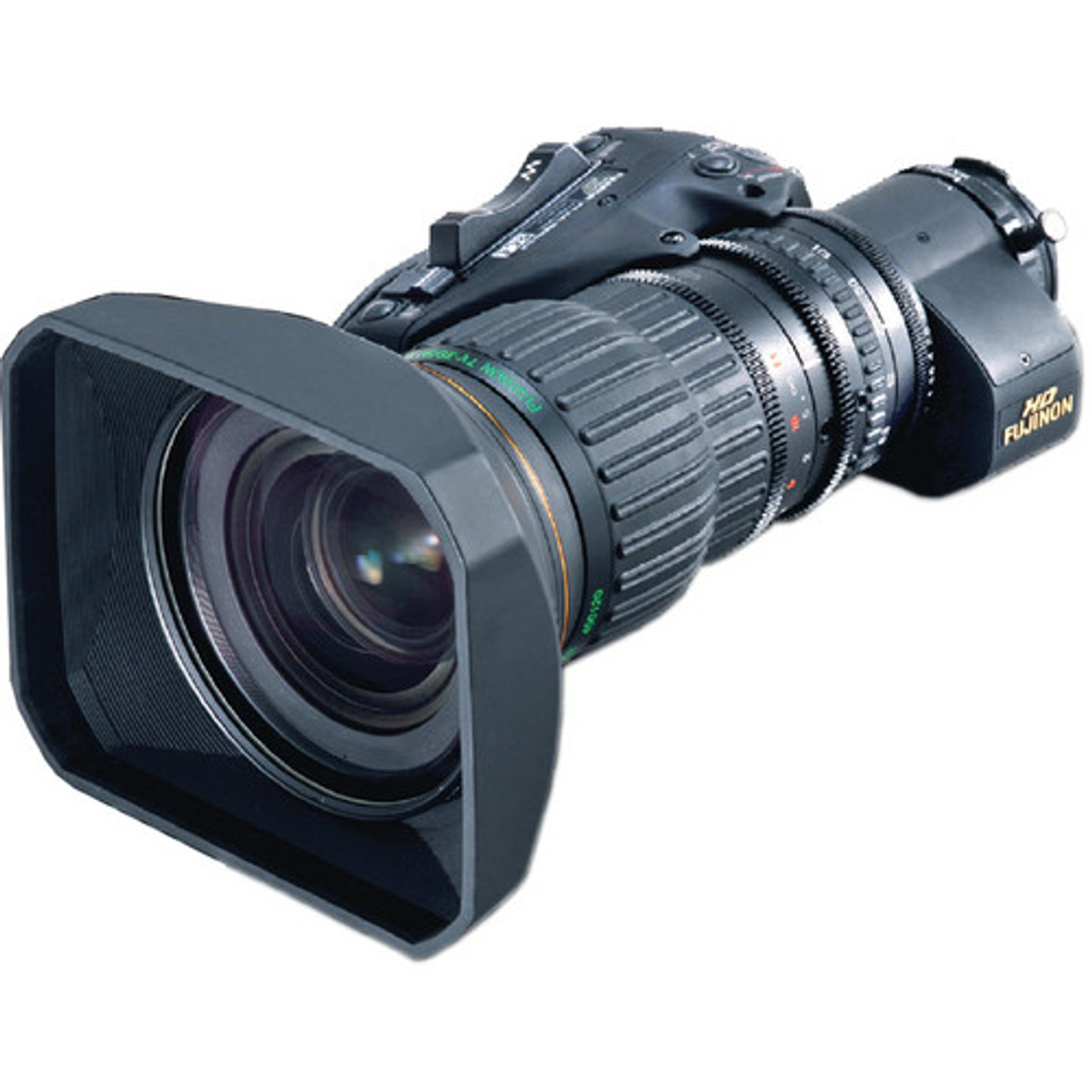

Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom
Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom
The Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom is a 7.6-137mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 18x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-105mm and stops down to f/2.4 at 137mm.
The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232. Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end.
- 7.6-137mm Lens for 2/3" Cameras
- 18x Zoom Ratio and 2x Extender
- Fast f/1.8 Max Aperture at 7.6-105mm
- Digital Servo for Focus and Zoom
- Full Studio Remote Control via RS-232
- Innerfocus, QuickZoom, and Zoom Limit
- Focused Intelligent Network Diagnosis
Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom
The Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom is a 7.6-137mm lens, designed to provide 2/3" cameras with a wide to telephoto angle-of-view. The lens has a zoom ratio of 18x, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-105mm and stops down to f/2.4 at 137mm. The lens also includes a digital servo for focus and zoom, which enables full studio control via RS-232.
Innerfocus minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. QuickZoom improves zoom speed to 0.7 seconds end to end. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end to check focus. Releasing the button automatically returns the lens to the previously selected focal length. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.7.6-137mm wide to telephoto zoom lens for 2/3" cameras18x zoom ratio and 2x extenderFast f/1.8 max aperture at 7.6-105mm and f/2.4 at 137mmDigital servo for focus and zoom and full studio control via RS-232Innerfocus, QuickZoom, and Zoom LimitFocused Intelligent Network Diagnosis
Sensor Compatibility | 2/3" (16:9) |
Focal Length | 7.6 to 137mm |
Built-In Extender | 2x |
Zoom Ratio | 18x |
Angle of View | 16:9 Wide: 64.5 x 39.05° (H x V) Tele: 4.02 x 2.25° (H x V) |
Maximum Aperture | f/1.8 to 2.4 (T9 to 2.6) |
Filter Thread | M82 x 0.75 mm |
Minimum Focus Distance from Image Plane | 2.76' / 0.84 m |
Minimum Object Distance | 1.97' / 0.6 m |
Dimensions | 3.4 x 8.0" / 85.0 x 204.0 mm (ø x L) |
Weight | 3.6 lb / 1.6 kg |
Packaging Info | |
Package Weight | 6.65 lb |
Box Dimensions (LxWxH) | 14 x 11.6 x 10.8" |
In The Box
- 1 x Fujinon HA18x7.6BERD-S6B ENG Lens with Digital Servo for Focus and Zoom
- 1 x 2-Year Warranty on Parts and Labor
