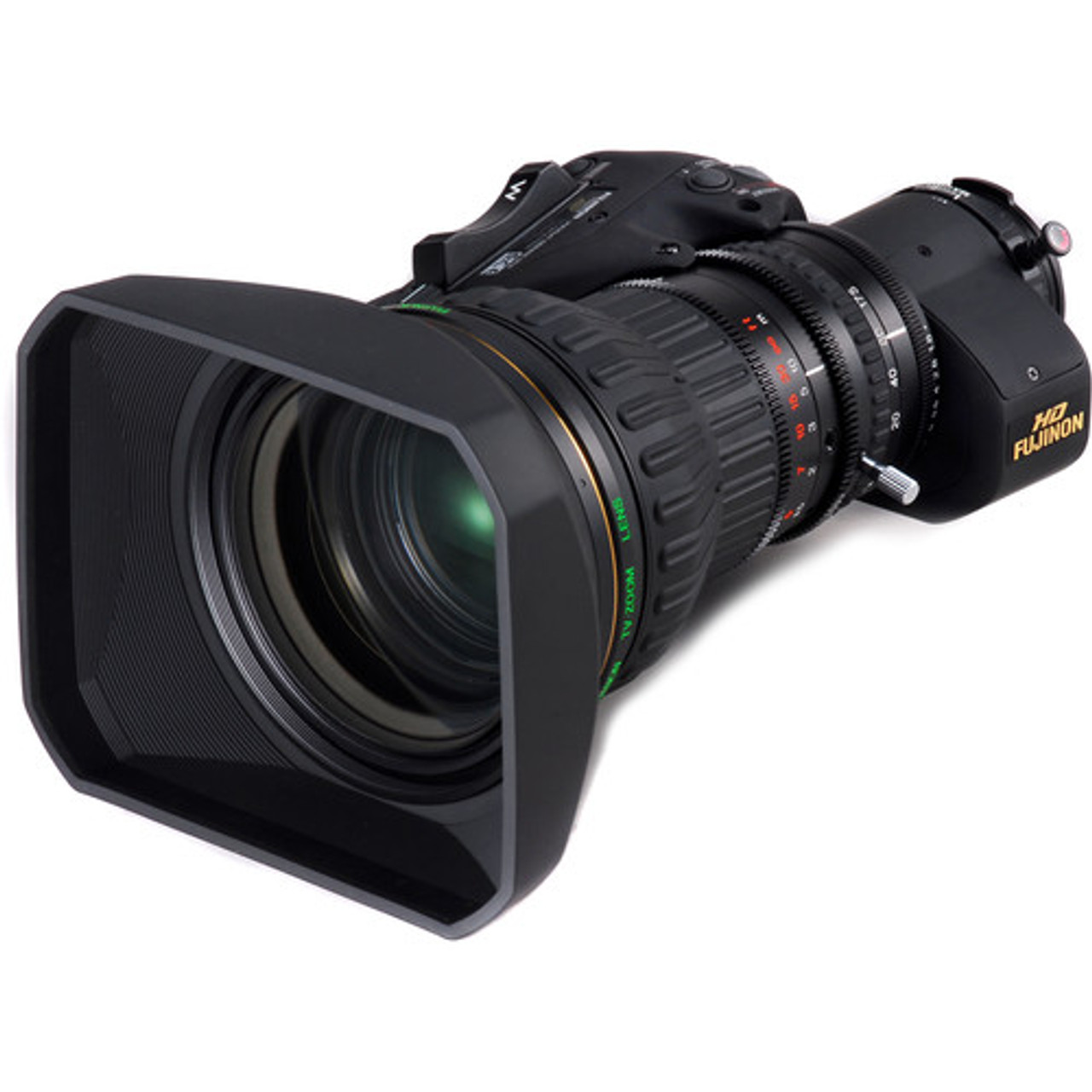

Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom
Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom
The Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom is a 7.6-175mm lens, designed to provide 2/3" cameras with a wide to super telephoto angle-of-view. The lens has a 23x zoom ratio, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-175mm and stops down to f/2.65 at 175mm.
The lens also includes a digital servo for zoom control and manual focus. Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments.
- 7.6-175mm Lens for 2/3" Cameras
- 23x Zoom Ratio and 2x Extender
- Fast f/1.8 Max Aperture at 7.6-122mm
- Servo zoom and manual focus
- Innerfocus, QuickZoom, and Zoom Limit
- Focused Intelligent Network Diagnosis
Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom
The Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom is a 7.6-175mm lens, designed to provide 2/3" cameras with a wide to super telephoto angle-of-view. The lens has a 23x zoom ratio, and a 2x extender effectively doubles the focal range. The maximum aperture is a fast f/1.8 at 7.6-175mm and stops down to f/2.65 at 175mm. The lens also includes a digital servo for zoom control and manual focus.
Internal focusing minimizes the effects of lens breathing, which ensures a more consistent angle-of-view when making focus adjustments. With the push of a button, QuickZoom facilitates a rapid shift to the telephoto end of the lens to check focus. Releasing the button automatically returns the lens to the previously selected focal length. Zoom Limit purposefully constrains the focal range to only desirable focal lengths. The Focused Intelligent Network Diagnosis (FIND) system aids in preventive maintenance and troubleshooting by evaluating electronic and mechanical parameters.7.6-175mm wide to telephoto zoom lens for 2/3" cameras23x zoom ratio and 2x extenderFast f/1.8 max aperture at 7.6-122mm and f/2.65 at 175mmServo zoom and manual focusInnerfocus, QuickZoom and Zoom LimitFocused Intelligent Network Diagnosis
Sensor Compatibility | 2/3" (16:9) |
Focal Length | 7.6 to 175mm |
Built-In Extender | 2x |
Zoom Ratio | 23x |
Angle of View | 16:9 Wide: 64.5 x 39.05° (H x V) Tele: 3.13 x 1.77° (H x V) |
Maximum Aperture | f/1.8 to 2.65 (T9 to 2.8) |
Filter Thread | M95 x 1 mm M107 x 1 mm |
Minimum Focus Distance from Image Plane | 3.51' / 1.07 m |
Minimum Object Distance | 2.62' / 0.8 m |
Dimensions | 3.9 x 8.8" / 100.0 x 223.6 mm (ø x L) |
Weight | 4.1 lb / 1.9 kg |
Packaging Info | |
Package Weight | 6.95 lb |
Box Dimensions (LxWxH) | 14.567 x 9.842 x 8.74" |
In The Box
- 1 x Fujinon HA23x7.6BERM-M6 ENG Lens with Digital Servo Zoom
- 1 x 2-Year Warranty on Parts and Labor
