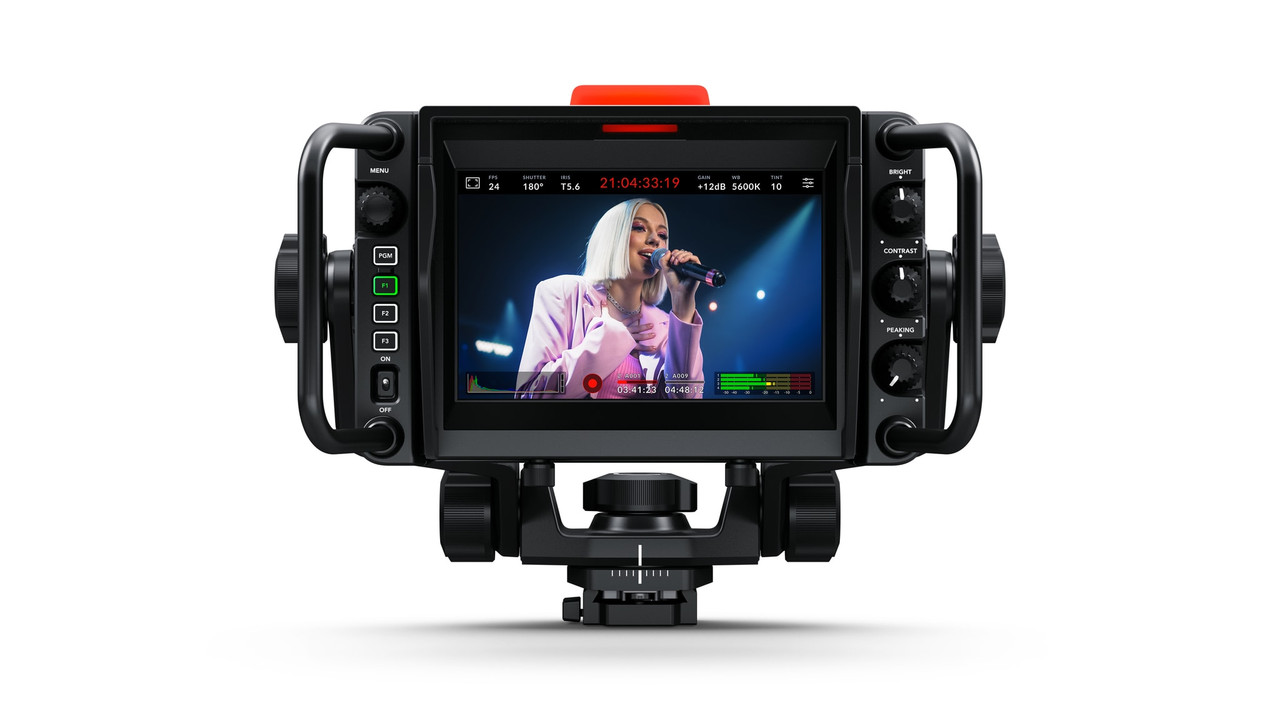

The URSA Cine Studio Viewfinder is a large 7 inch HDR touchscreen viewfinder with full camera control, designed for URSA Cine in live production environments. The 1920 x 1200 LCD runs at 2000 nits with frame rates up to 60 fps, with physical knobs for brightness, contrast and focus peaking plus F1, F2 and F3 assignable function buttons and a BACK button.

On screen overlays include focus peaking, frame guides and histograms, with touchscreen access to every camera setting — frame rate, shutter, iris, timecode, ISO, white balance, tint, record start/stop, media, audio, focus zoom and the digital slate. The function buttons recall preset parameters or toggle functions such as clean feed, and a large talent facing LED tally light takes customisable perspex camera numbers.

It connects over a single locking USB-C cable carrying video, power, metadata, camera control and software updates, plugging into the viewfinder port on the front of the camera. A 5.5mm locking barrel socket takes +12V to +17V DC where a separate power feed is preferred.

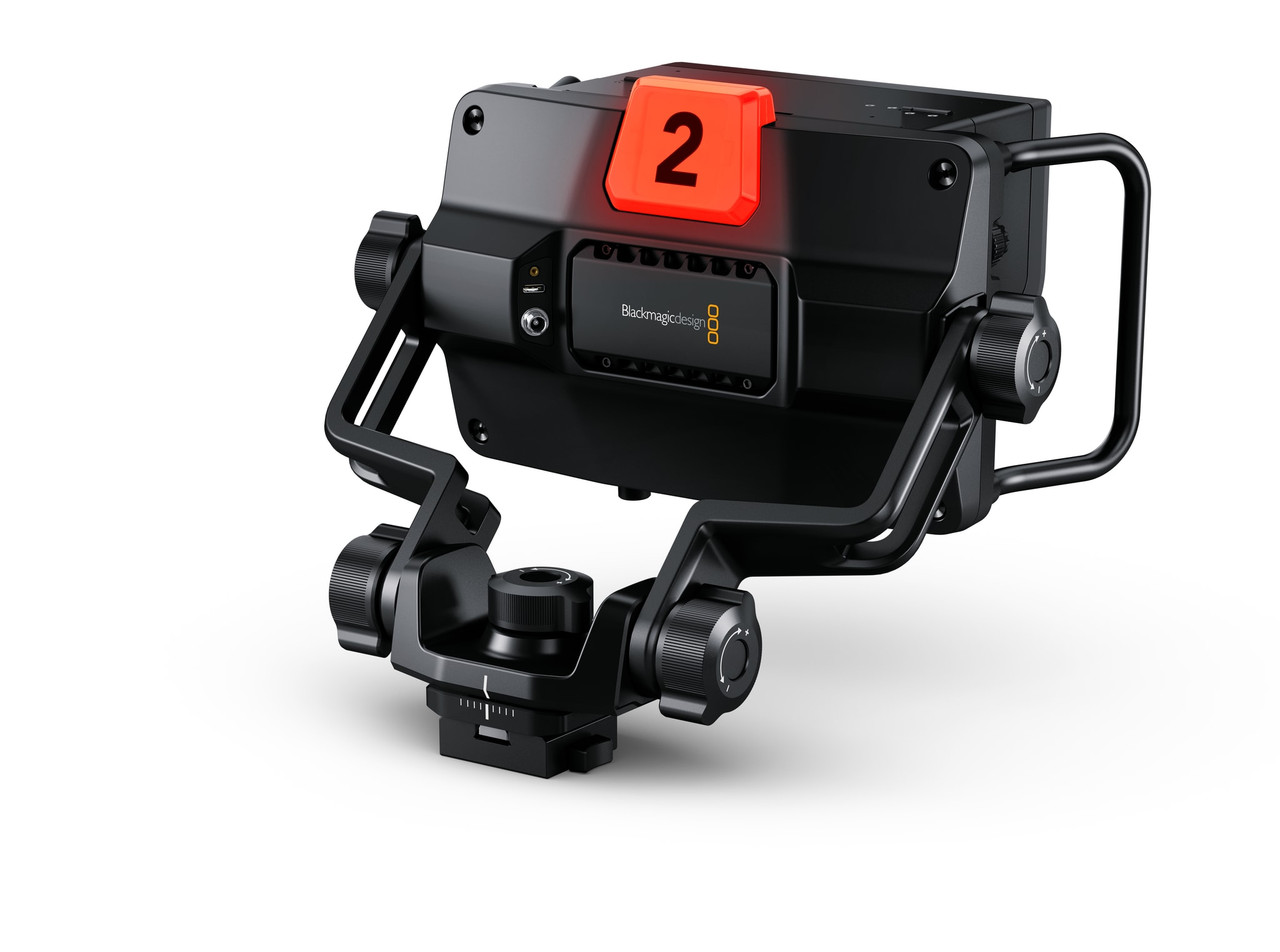

The articulated yoke uses variable tension pivots and built in grab handles for forward, back, up, down, pan and tilt adjustment, positioning the monitor independently of the camera. A detachable foldable sunshade is included, and the quick release V-lock bracket attaches to the URSA Cine 12K body or to any mounting surface with two 1/4-20 screws.

Key features

• 7 inch 1920 x 1200 HDR touchscreen
• 2000 nit brightness
• Frame rates up to 60 fps
• Full Blackmagic OS camera control from the screen
• Physical knobs for brightness, contrast and focus peaking
• F1, F2 and F3 assignable function buttons plus BACK
• Focus peaking, frame guide and histogram overlays
• Talent facing LED tally with perspex camera numbers
• Single locking USB-C for video, power, metadata and control
• 5.5mm barrel socket for +12V to +17V DC power
• Articulated yoke with variable tension pivots and grab handles
• Detachable foldable sunshade
• Quick release V-lock bracket — mounts with two 1/4-20 screws
