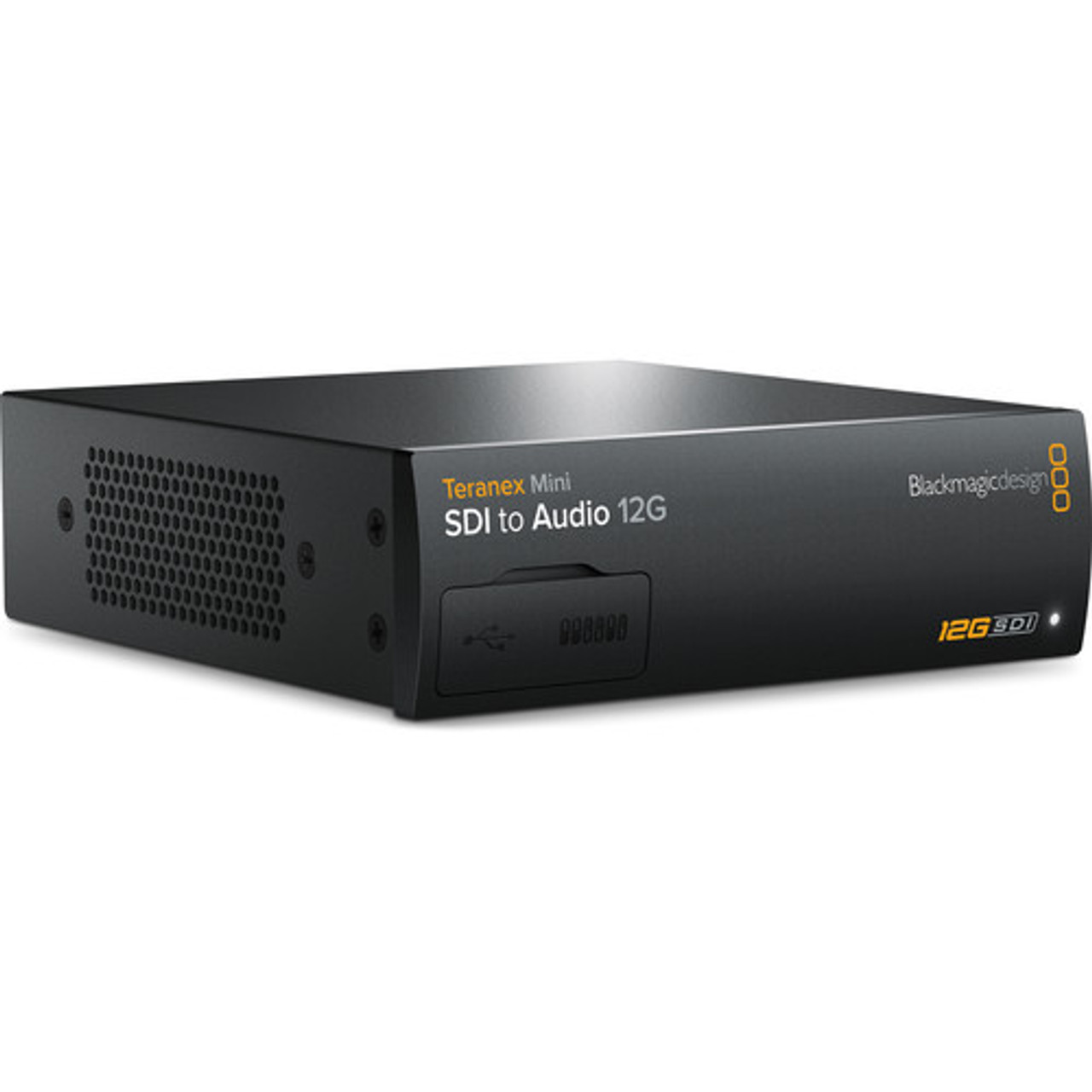

Blackmagic Design Teranex Mini SDI to Audio 12G Converter. Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering multiple audio output connections and an Ethernet control and PoE port, the Teranex Mini SDI to Audio 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Connect any SDI signal in up to Full 4K DCI 4096x2160p resolution via a 12G-SDI input, and de-embed audio from the signal and output it via a diverse set of audio connections.

Output two channels of analog audio or up to four channels of AES/EBU digital audio via full-size, professional balanced XLR ports, two channels of unbalanced analog line-level audio via RCA connectors, or optical S/PDIF audio via a TOSLINK output. Connect the audio signal to a wide range of audio equipment, such as mixers, decks, and audio monitors.

• Advanced High-Data Rate De-Embedder
• De-Embed Audio from up to 4K SDI Signals
• Output via XLR, AES/EBU, RCA, or S/PDIF
• 12G-SDI Input and Output
• Supports up to Full 4K DCI 4096x2160p
• XLR Connections Switchable to AES/EBU
• Ethernet Port for Remote Control or PoE
• Supports Optional LCD Smart Front Panel
• Intelligent Thermal Heat Dissipation
• 3 Units 1U Rack-Mountable in 19" Rack
