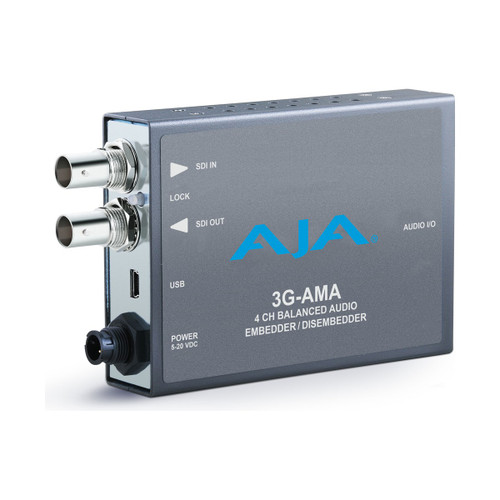

AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
SKU:
3G-AMA-R0
Availability:
Call for Availability
(No reviews yet)
Write a Review
Write a Review
AJA
AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
$2,230.00
Inc. GST
$1,939.13
Ex. GST
AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter. Embed or disembed up to four channels of SDI audio with the AJA 3G-AMA Mini Converter. The 3G-AMA includes a breakout cable which can provide up to four channels of XLR analog audio input or output depending on how the unit is configured.
The 3G-AMA can be set up to accept four channels of balanced XLR audio to be embedded in an SDI video feed, or to disembed four channels of digital SDI audio and output them as analog signals via the four XLR output cables. The output SDI signal is re-clocked to preserve the signal integrity over long cable runs. Setting the 3G-AMA up is made simple with AJA's free software solution, MiniConfig.
- Embed XLR Audio in an SDI Signal
- Disembed SDI Audio to Analog XLR Audio
- Works with AJA MiniConfig Software
- Re-Clocked SDI Output
AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
Embed or disembed up to four channels of SDI audio with the AJA 3G-AMA Mini Converter. The 3G-AMA includes a breakout cable which can provide up to four channels of XLR analog audio input or output depending on how the unit is configured. The 3G-AMA can be set up to accept four channels of balanced XLR audio to be embedded in an SDI video feed, or to disembed four channels of digital SDI audio and output them as analog signals via the four XLR output cables. The output SDI signal is re-clocked to preserve the signal integrity over long cable runs.Setting the 3G-AMA up is made simple with AJA's free software solution, MiniConfig. The 3G-AMA connects to your computer running MiniConfig with an included USB 2.0 cable enabling your computer to access the unit's internal programming so you can set it up for your specific workflow.
| Video Input | 1 x SDI (BNC): SD SMPTE 259M HD SMPTE 292/296M 3G SMPTE 424/425M |
| Input Formats | 3G-SDI: 2048x1080p 23.98/24/25/29.97/30/50/59.94/60 2048x1080psf 23.98/24/25/29.97/30 1920x1080p 23.98/24/25/29.97/30/50/59.94/60 1920x1080psf 23.98/24/25/29.97/30 1920x1080i 25/29.97/30 1280x720p 50/59.94/60 HD-SDI: 2048x1080p 23.98/24/25/29.97/30 2048x1080psf 23.98/24/25/29.97/30 1920x1080p 23.98/24/25/29.97/30 1920x1080psf 23.98/24/25/29.97/30 1920x1080i 25/29.97/30 1280x720p 23.98/24/25/29.97/30/50/59.94/60 SD-SDI: 525i 625i |
| Video Output | 1 x SDI (BNC) |
| Output Formats | Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input. Video Latency: SD-SDI - 17.2 µsec HD-SDI - 6.3 µsec 3G-SDI level A - 3.2 µsec 3G-SDI level B - 6.1 µsec |
| Audio I/O | 1 x DB-25 for 4 channels I/O DB-25 Breakout cable: 4 x XLR female input breakout connectors 4 x XLR male output breakout connectors |
| Audio Converters | 24-bit |
| Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden. Up to 16 channels supported. NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio. |
| Audio Latency | Embed from audio input: 1100 µsec Disembed from video input: 1200 µsec |
| Audio Level Control | Settings Configured via MiniConfig Software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu |
| User Controls | External DIP switch USB port for MiniConfig software application |
| Power | 5 to 20 VDC, 5 W |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Operating Relative Humidity: 10-90% non-condensing Operating Altitude: <8,000' / <2,500 m Safe Storage Temperature (Power OFF): -40 to 140°F / -40 to 60°C |
| Dimensions | 5.8 x 3.1 x 1" / 147 x 79 x 25 mm |
| Package Weight | 1.22Kg |
| Box Dimensions (LxWxH) | 25.91cm x 14.35cm x 9.65cm |
In The Box
- 1 x AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
- 1 x Breakout Cable
- 1 x Universal Power Supply
- 1 x Limited 5-Year Warranty
AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
Embed or disembed up to four channels of SDI audio with the AJA 3G-AMA Mini Converter. The 3G-AMA includes a breakout cable which can provide up to four channels of XLR analog audio input or output depending on how the unit is configured. The 3G-AMA can be set up to accept four channels of balanced XLR audio to be embedded in an SDI video feed, or to disembed four channels of digital SDI audio and output them as analog signals via the four XLR output cables. The output SDI signal is re-clocked to preserve the signal integrity over long cable runs.Setting the 3G-AMA up is made simple with AJA's free software solution, MiniConfig. The 3G-AMA connects to your computer running MiniConfig with an included USB 2.0 cable enabling your computer to access the unit's internal programming so you can set it up for your specific workflow.
| Video Input | 1 x SDI (BNC): SD SMPTE 259M HD SMPTE 292/296M 3G SMPTE 424/425M |
| Input Formats | 3G-SDI: 2048x1080p 23.98/24/25/29.97/30/50/59.94/60 2048x1080psf 23.98/24/25/29.97/30 1920x1080p 23.98/24/25/29.97/30/50/59.94/60 1920x1080psf 23.98/24/25/29.97/30 1920x1080i 25/29.97/30 1280x720p 50/59.94/60 HD-SDI: 2048x1080p 23.98/24/25/29.97/30 2048x1080psf 23.98/24/25/29.97/30 1920x1080p 23.98/24/25/29.97/30 1920x1080psf 23.98/24/25/29.97/30 1920x1080i 25/29.97/30 1280x720p 23.98/24/25/29.97/30/50/59.94/60 SD-SDI: 525i 625i |
| Video Output | 1 x SDI (BNC) |
| Output Formats | Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input. Video Latency: SD-SDI - 17.2 µsec HD-SDI - 6.3 µsec 3G-SDI level A - 3.2 µsec 3G-SDI level B - 6.1 µsec |
| Audio I/O | 1 x DB-25 for 4 channels I/O DB-25 Breakout cable: 4 x XLR female input breakout connectors 4 x XLR male output breakout connectors |
| Audio Converters | 24-bit |
| Embedded Audio | SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden. Up to 16 channels supported. NOTE: 2048x1080p/psf 29.97 and 30 formats support a maximum of 8 channels embedded audio. |
| Audio Latency | Embed from audio input: 1100 µsec Disembed from video input: 1200 µsec |
| Audio Level Control | Settings Configured via MiniConfig Software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu |
| User Controls | External DIP switch USB port for MiniConfig software application |
| Power | 5 to 20 VDC, 5 W |
| Environmental | Operating Temperature: 32 to 104°F / 0 to 40°C Operating Relative Humidity: 10-90% non-condensing Operating Altitude: <8,000' / <2,500 m Safe Storage Temperature (Power OFF): -40 to 140°F / -40 to 60°C |
| Dimensions | 5.8 x 3.1 x 1" / 147 x 79 x 25 mm |
| Package Weight | 1.22Kg |
| Box Dimensions (LxWxH) | 25.91cm x 14.35cm x 9.65cm |
In The Box
- 1 x AJA 3G-AMA 3G-SDI 4-Channel Analog Audio Embedder/Disembedder Mini-Converter
- 1 x Breakout Cable
- 1 x Universal Power Supply
- 1 x Limited 5-Year Warranty
