  • Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card

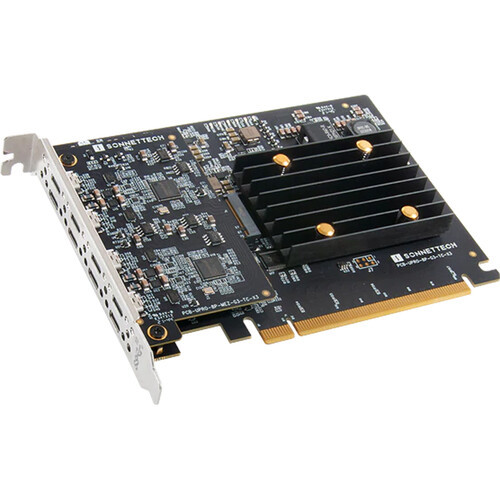

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card

SKU:

USB3C-8PM-E

Availability:

Enquire for ETA

star star star star star (No reviews yet) Write a Review

Write a Review

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card
Sonnet
Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card

MSRP:
Sale Price
Now: $1,250.00
Inc. GST
MSRP:
Now: $1,086.96
Ex. GST
(You save )

Adding to cart… The item has been added

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card. Add eight USB 3.2 Gen 2 Type-C ports to your compatible computer with the Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card from Sonnet. Equipped with four ASMedia 3142 USB 3.2 Gen 2 controllers and capable of transferring up to 10 Gb/s per port with compatible devices, this PCIe 3.0 x16 card can supply up to 7.5W, 1.5A of power per port to connected hard drives, SSDs, and other supported USB Type-C devices.

The card is compatible with select versions of Windows, Mac, and Linux.Four independent USB 3.2 Gen 2 controllers control a pair of Type-C ports each, concurrently delivering a full 10 Gb/s of bandwidth through each port.Independent, per-port power regulation prevents power glitches that may disconnect drives.Sonnet's Allegro Pro card draws all the power necessary to operate connected drives from the slot it's installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system, regardless of it having extra power connectors available.A resettable fuse on each port protects both the card and computer should a cable or peripheral fail.

  • 8 x USB 3.2 Gen 2 Type-C Ports
  • PCIe 3.0 x16 Interface
  • Up to 10 Gb/s Throughput per Port
  • Up to 7.5W / 1.5A of Power per Port
  • 4 x ASMedia 3142 Controllers
  • Windows, Mac, and Linux Compatible
  • Description
  • Specifications
  • 0 Reviews

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card. Add eight USB 3.2 Gen 2 Type-C ports to your compatible computer with the Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card from Sonnet. Equipped with four ASMedia 3142 USB 3.2 Gen 2 controllers and capable of transferring up to 10 Gb/s per port with compatible devices, this PCIe 3.0 x16 card can supply up to 7.5W, 1.5A of power per port to connected hard drives, SSDs, and other supported USB Type-C devices.

The card is compatible with select versions of Windows, Mac, and Linux.Four independent USB 3.2 Gen 2 controllers control a pair of Type-C ports each, concurrently delivering a full 10 Gb/s of bandwidth through each port.Independent, per-port power regulation prevents power glitches that may disconnect drives.Sonnet's Allegro Pro card draws all the power necessary to operate connected drives from the slot it's installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system, regardless of it having extra power connectors available.A resettable fuse on each port protects both the card and computer should a cable or peripheral fail.

  • 8 x USB 3.2 Gen 2 Type-C Ports
  • PCIe 3.0 x16 Interface
  • Up to 10 Gb/s Throughput per Port
  • Up to 7.5W / 1.5A of Power per Port
  • 4 x ASMedia 3142 Controllers
  • Windows, Mac, and Linux Compatible

Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card

Add eight USB 3.2 Gen 2 Type-C ports to your compatible computer with the Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card from Sonnet. Equipped with four ASMedia 3142 USB 3.2 Gen 2 controllers and capable of transferring up to 10 Gb/s per port with compatible devices, this PCIe 3.0 x16 card can supply up to 7.5W, 1.5A of power per port to connected hard drives, SSDs, and other supported USB Type-C devices. The card is compatible with select versions of Windows, Mac, and Linux.

  • Four independent USB 3.2 Gen 2 controllers control a pair of Type-C ports each, concurrently delivering a full 10 Gb/s of bandwidth through each port.
  • Independent, per-port power regulation prevents power glitches that may disconnect drives.
  • Sonnet's Allegro Pro card draws all the power necessary to operate connected drives from the slot it's installed in. This enables you to install the Sonnet card in any compatible computer or Thunderbolt expansion system, regardless of it having extra power connectors available.
  • A resettable fuse on each port protects both the card and computer should a cable or peripheral fail. Resetting a tripped fuse is simple. Just shut down and then restart your computer.
  • Plug in and disconnect peripherals without shutting off your computer.
Inputs/Outputs8 x USB-C 3.1/3.2 Gen 2
Expansion Slot CompatibilityPCIe 3.0 x16
Slot CompatibilityFull Height
OS CompatibilityWindows 10 or Later
macOS 10.12.6 or Later
Linux 5.4 or Later
Ubuntu 20.4.4 or Later
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Inputs/Outputs8 x USB-C 3.1/3.2 Gen 2
USB Bus-Power Support1.5 A, 7.5 W per Port
Expansion Slot CompatibilityPCIe 3.0 x16
Slot CompatibilityFull Height
ChipsetASMedia ASMedia 3142
OS CompatibilityWindows 10 or Later
macOS 10.12.6 or Later
Linux 5.4 or Later
Ubuntu 20.4.4 or Later
*As of July, 2022: Check with manufacturer for the most up-to-date compatibility
Operating Temperature32 to 95°F / 0 to 35°C
Package Weight0.23Kg
Box Dimensions (LxWxH)23.11cm x 15.75cm x 3.30cm

In The Box

  • 1 x Sonnet Allegro Pro 8-Port USB 3.2 Gen 2 Type-C PCIe 3.0 Card
  • 1 x Limited 2-Year Manufacturer Warranty
