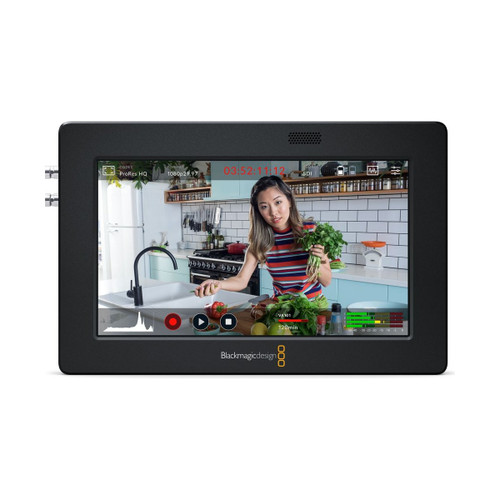

Blackmagic Design Video Assist 3G-SDI/HDMI 5" HYPERD/AVIDA03/5

Description
Specifications
0 Reviews

Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor. Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 5" Recording Monitor from Blackmagic Design. It features a bright 5" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras.

You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use.

1920 x 1080 5" Touchscreen LCD
HDMI & 3G-SDI Video Inputs
Records up to 1080p60 Video
USB Type-C Webcam Video Output
Stores to 1 x SDXC/SDHC Memory Card
Loop-Through Video Outputs
Waveform, Vectorscope & Histogram
Focus Peaking, False Color & Zebra
11 x Display Language Options
Dual Sony L-Series Type Battery Slots

Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor

Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 5" Recording Monitor from Blackmagic Design. It features a bright 5" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.

The Video Assist 3G 5" records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

Supports video formats up to 1080p60

Can be used to upgrade viewing and recording options with older cameras

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools

3G-SDI and HDMI input ports with loop-through outputs provide compatibility with a variety of cameras and wireless video receivers

3D LUT support for customized viewing

Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam

A tally light on top of the monitor indicates it is operating and recording

Direct metadata entry

Single SD card slot for ProRes recording

Ability to select which audio channels you are monitoring

Power the monitor using the included 12V power adapter or the separately available Sony L-Series type batteries on the dual battery slots

Choose from 11 languages for easier use of on-screen text displays and menu options:
- English
- Chinese
- French
- German
- Italian
- Japanese
- Korean
- Portuguese
- Russian
- Spanish
- Turkish

macOS 10.15 Catalina
macOS 10.14 Mojave
USB 2.0 port for updates

Microsoft Windows 10 64-bit
USB 2.0 port

Panel Type	LCD
Display Size	5.0" / 12.7 cm
Resolution	1920 x 1080
Aspect Ratio	16:9
Viewing Angle	Horizontal: 135°
Touchscreen	Yes
Maximum Brightness	300 cd/m²
HDR Compatibility	None
Pixels Per Inch (ppi)	441 ppi
Color Gamut	100% Rec. 709
Real-Time LUT Monitoring	SDR
Image Controls	Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
Video I/O	1 x HDMI Input 1 x Micro BNC (3G-SDI) Input 1 x HDMI Output 1 x Micro BNC (3G-SDI) Output 1 x USB-C Output
HDCP Support	Yes
Embedded Audio	HDMI: 8-Channel SDI: 16-Channel
Audio I/O	1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker	1
Power I/O	1 x Barrel Input
Media/Memory Card Slot	Single Slot: SD/SDHC/SDXC (UHS-I)
Wi-Fi	None
Video Format	SDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94 HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576i: 50 480i: 59.94
Timecode Support	Yes
Pulldown Conversion	None
Camera Trigger	None
Pre-Roll Record	None
Encoding Formats	Up to 1920 x 1080 ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps
Maximum Audio Tracks	16
Metadata Tagging	Yes
Phantom Power	None
DC Input Power	12 VDC
Built-In Battery	None
Battery Type	2 x L-Series
Mounting	6 x 1/4"-20 Female
Operating Temperature	32 to 72°F / 0 to 40°C
Operating Humidity	0 to 90%
Storage Temperature	-4 to 113°F / -20 to 45°C
Material of Construction	Aluminum
Dimensions	5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm
Weight	14.46 oz / 410 g
Package Weight	0.95Kg
Box Dimensions (LxWxH)	19.81cm x 19.05cm x 10.41cm

In The Box

1 x Blackmagic Design Video Assist 3G-SDI/HDMI 5" Recorder/Monitor
1 x Blackmagic Design Power Supply for Video Assist
1 x Limited 1-Year Warranty
