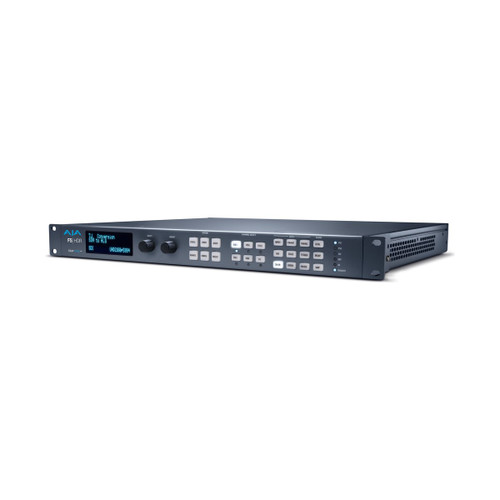

AJA FS-HDR HDR/WCG Converter/Frame Synchronizer

Firmware update 4.1 increases the buffer depth from 6 to 20 frames and adds both BBC HLG format conversion LUTs v1.5 and NBCU (NBCUniversal) HLG LUTS. Update 4.1 also offers expanded Closed Captioning (CC) support and the ability to pass through or translate critical ancillary data, even while performing a conversion. The FS-HDR offers a Colorfront Engine TV Mode with enhanced color-correction and camera control functions. Features include knee point and knee slope controls for better highlights and roll-offs in SDR and HDR conversion, seamless round-tripping to help maintain branded SDR color fidelity, and improved use of HDR image information in SDR down-conversions and SDR to HDR expansion. Update 4.0 introduced BBC 3D HLG LUTs v1.4, a LUT 9 for HLG to SDR display-light conversions, and metadata support for additional cameras and lenses. It also brought the ability to configure HDR components of the SDI output VPID on a channel-by-channel basis. Cinematic color spaces like ARRI Log C, Canon Log 2/3, Panasonic V-Log, RED Log3G10/Wide Gamut, and Sony S-Gamut3/S-Log3 are accurately reproduced and converted from log to either HDR or SDR output.

With a wide range of connection options for both video and audio, in frame synchronizer mode the FS-HDR does the work of four separate devices in 2K/HD/SD. Combine all the processors and channels together for maximum flexibility for UHD/4K productivity. UHD/4K input and output options include quad 1.5G, dual 3G, and quad 3G, 6G, and 12G over a range of SDI and optional fiber choices.

In single-channel mode, the FS-HDR will upscale your HD or SD materials to UHD/4K and back, with a wide array of audio channels over Fiber, 3G-SDI, AES, and MADI connectors. In four-channel mode, the FS-HDR provides multi-channel conversion with up to 4-channels of simultaneous processing for 2K/HD and SD signals. Closed captioning is preserved even when converting between formats, and a looping Reference input enables locking to your housed reference signal.

These multiple conversion/synchronizer features are housed within the FS-HDR's compact 1 RU frame. Control the FS-HDR using the front-panel buttons, or the web-based user interface via the built-in 10/100/1000Mb Ethernet port. When working with large installations, configurations can be applied and saved to multiple FS-HDR units, ensuring consistency and speed.

• Buffer now supports up to 20-frame delays
• Updated BBC HLG LUTs to v1.5 including two new LUTs and:
• LUT1 had 105% output clip to the EBU R103 “preferred” signal range removed
• LUT8 has improved color saturation and softer tone-mapping to enhance image highlights
• LUT9 has improved color saturation, especially in highlights and tone-mapping has been adjusted to avoid clipping of the HLG nominal signal range
• LUT17 and LUT18 are new LUTs for SDR BT.2020 to HLG BT.2100 conversion
• New NBCU LUT Transform category includes:
  • 1-NBCU_SDR2HLG_DL_v1, SDR UpMap to HLG using Display Light
  • 2-NBCU_SDR2HLG_SL_v1, SDR to HLG using Scene Light
  • 3-NBCU_HLG2SDR_DL_v1.1, HLG to SDR using Display Light
  • 4-NBCU_SDR2PQ_DL_v1, SDR UpMap to PQ using Display Light
  • 5-NBCU_PQ2SDR_DL_v1, PQ to SDR using Display Light
  • 7-NBCU_HLG10002PQ_v1, HLG 1000 Nits to PQ
  • New ability to automatically pass through SCTE-104 packets for a wide range of formats and conversions
  • New Timecode Xlator to pass-through or translate Ancillary Timecode (ATC) packets for a wide range of formats and conversions.
  • Supports LTC, VITC1, or VITC2
  • Real-time High Dynamic Range (HDR) conversion from SDR to HDR, HDR to SDR, and HDR to HDR; BT.709 and BT.2020 support
  • Colorfront Engine video processing of a single channel of 4K/UltraHD/2K/HD (including down-conversion to HD HDR), or up to four channels of 2K/HD simultaneously
  • Real-time conversion of your camera's log output to 4K/UltraHD or 2K/HD, then output as either HDR or SDR; wide support of popular log formats
  • HDR workflow support for a range of UHD/4K and HD/2K configurations
  • Knee point and slope control for improved highlights and roll-off in SDR and HDR conversions
  • Includes BBC 3D HLG LUTs v1.5 and a LUT 9 for HLG to SDR display-light conversions
  • Support for wider array of camera and lens metadata pass-through
  • Configure HDR components of the SDI output VPID on a channel-by-channel basis
  • Cross conversion including upscaling, ROI scaling, color correction, proc amp control, motion-adaptive deinterlacing, etc.
  • Supports up, down, cross-conversion from SD, HD, or 2K over 12G/6G/3G-SDI video to UHD/4K video and back
  • Utilizes standard BNC as well as optional SFP inputs and outputs, supports SDI workflows up to 12G
  • BNC and Fiber inputs and outputs accept UHD/4K/2K/HD/SD resolution SDI signals in single-channel mode
  • 2K/HD/SD inputs can be routed to up to four locations simultaneously
  • Looping reference input allows the synchronizer to be locked to your house reference signal for rock-solid stability
  • Carry multiple SDI, MADI, and AES signals along a single cable for an array of routing possibilities including 1 to 1, or 1 to many
  • Configure and control using the front panel buttons, or the web-based user interface via the integrated 10/100/1000MB Ethernet port
  • Closed caption conversion between 2K/HD/SD and UHD/4K formats
  • Compact, 1 RU size is suitable for broadcast trucks, studios, and post facilities

In The Box

• 1 x AJA FS-HDR HDR/WCG Converter/Frame Synchronizer
• 1 x Limited 5-Year Warranty
