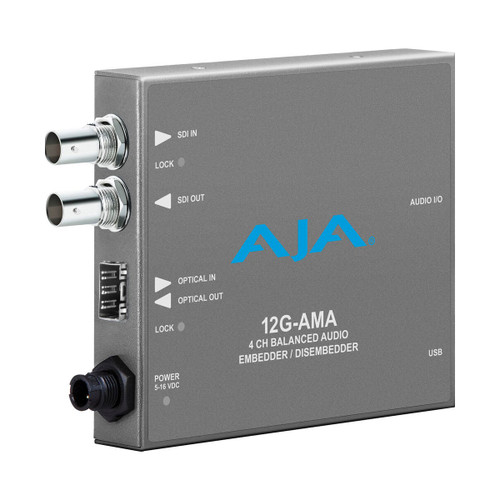

AJA 12G-AMA 12G-SDI Balanced Audio Embedder/Disembedder with Fiber Options. The AJA 12G-AMA mini-converter is an analog audio embedder/disembedder with 12G-SDI input and output supporting up to UHD 4K60/DCI 4K60. It also features an SPF slot where SPFs such as the AJA FIBERLC-TR-12G can be user-installed at a later time to support single-mode fiber I/O with LC or ST connectors. The converter has a 25-pin port for an included breakout cable that offers 4-channel XLR audio input and output.
The audio disembedding feature is constantly functional. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio from the breakout cable.
- Audio Embed/De-Embed Mini Converter
- 12G-SDI Input and Output up to DCI 4K60
- SFP Slot for Optional Fiber Input/Output
- 4-Channel XLR Audio I/O Breakout Cable
- User-Selectable Embedding (Channel Pair)
- Selectable Analog Audio Levels
- USB Connection to Mini-Config Software
- Dipswitch Configuration
AJA 12G-AMA 12G-SDI Balanced Audio Embedder/Disembedder with Fiber Options
The AJA 12G-AMA mini-converter is an analog audio embedder/disembedder with 12G-SDI input and output supporting up to UHD 4K60/DCI 4K60. It also features an SPF slot where SPFs such as the AJA FIBERLC-TR-12G can be user-installed at a later time to support single-mode fiber I/O with LC or ST connectors.The converter has a 25-pin port for an included breakout cable that offers 4-channel XLR audio input and output. The audio disembedding feature is constantly functional. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or embed input analog audio from the breakout cable. Analog audio levels are selectable.
The converter interacts with the AJA Mini-Config software over a USB connection. The application is compatible with PC and Mac and is provided as a free download from the AJA website.
- 12G-SDI input and output up to UHD 4K60/DCI 4K60
- SFP slot for optional fiber input/output
- Included XLR breakout cable with 4-channel XLR audio input and output
- User-selectable embedding on a channel pair basis
- Automatically detects and configures the input video standard
- USB connectivity to free-download AJA Mini-Config software for PC and Mac
- Dipswitch configuration
Video Formats | 4096 x 2160 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 3840 x 2160 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080 at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 720p at 50, 59.94, 60 625i50 525i59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-Bit |
Video Input Digital | 1 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single-Link SD/HD/2K/UHD 4K/DCI 4K Single-Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425 |
Video Output Digital | 1 x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single-Link SD/HD/2K/UHD 4K/DCI 4K Single-Link 3G-SDI Level A, B-DL, or B-DS, SMPTE 425 |
Cable Equalization | Using a Belden 1694A Coax Cable: 12 Gb/s: 213' / 65 m 6 Gb/s: 410' / 125 m 3 Gb/s: 623' / 190 m 1.5 Gb/s: 656' / 200 m 270 Mb/s: 1,328.75' / 405 m |
Video Latency | 12G: 3.2 µsec 6G: 3.2 µsec 3G Level B (Dual Stream HD Mode): 6.3 µsec 3G Level A: 3.2 µsec HD (1.5 Gb/s): 6.3 µsec SD (270 Mb/s): 17.2 µsec |
Audio I/O | Balanced Analog Audio 1 x 25-Pin D Female Included 25-Pin D Male Breakout Cable: 4 x XLR Female Input 4 x XLR Male Output |
Audio Bit Depth | 24 Bit |
Embedded Audio | SMPTE 272M (SD): 20-Bit, 48 kHz Synchronous SMPTE 299M (12G/6G/3G/1.5G): 24-Bit, 48 kHz Synchronous Incoming Embedded Audio Can Be Passed, Removed, or Overridden. Up to 16 Channels Supported. 2048 x 1080p/PsF at 29.97/30 fps Support Maximum of 8 Channels of Embedded Audio. |
Audio Latency | Embed Path: 1100 µsec Disembed Path: 1200 µsec |
Analog Audio Levels | Configured via Mini-Config Software: Pro 1: 0 dBfs = +24 dBu Pro 2: 0 dBfs = +18 dBu Pro 3: 0 dBfs = +15 dBu Consumer 1: 0 dBfs = +12 dBu |
User Interface | External DIP Switch USB Port Used with Mini-Config Application (PC/Mac Compatible) |
Power | 5 to 16 VDC, 10 W |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -40 to 140°F / -40 to 60°C |
Relative Humidity | 10 to 90% |
Operating Altitude | <10,000' / <3,000 m |
Dimensions | 5.8 x 3.1 x 1" / 147.3 x 78.7 x 25.4 mm |
Weight | 0.6 lb / 0.3 kg |
Package Weight | 1.20Kg |
Box Dimensions (LxWxH) | 25.40cm x 14.48cm x 9.65cm |
In The Box
- 1 x AJA 12G-AMA 12G-SDI Balanced Audio Embedder/Disembedder with Fiber Options
- 1 x Power Supply
- 1 x Breakout Cable (25-Pin D Male)
- 1 x Limited 5-Year Warranty
