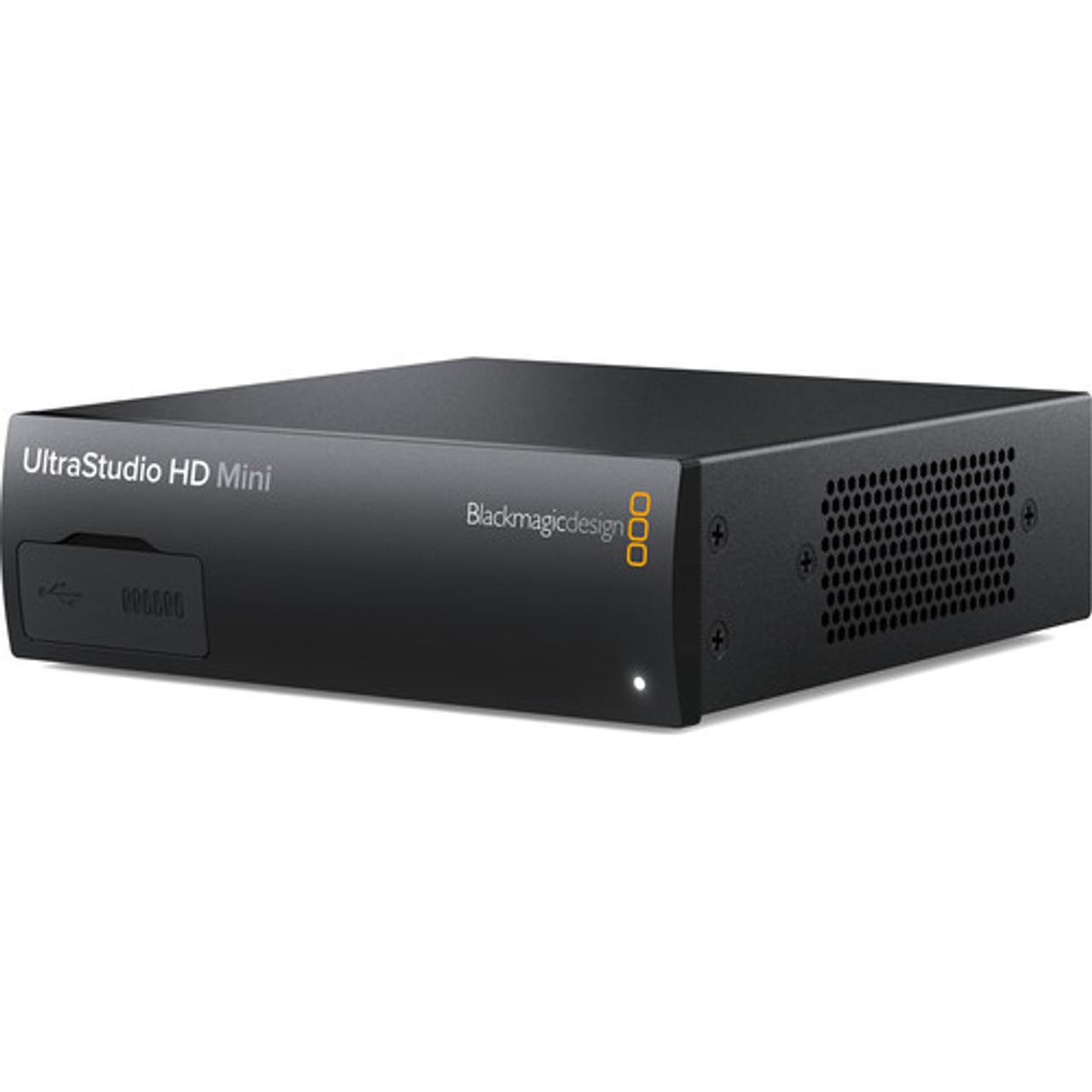

Blackmagic Design UltraStudio HD Mini
Blackmagic Design UltraStudio HD Mini
SKU:
BDLKULSDMINHD
Availability:
In Stock
(No reviews yet)
Write a Review
Write a Review
Blackmagic Design
Blackmagic Design UltraStudio HD Mini
$970.00
Inc. GST
$843.48
Ex. GST
Blackmagic Design UltraStudio HD Mini. Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment.
Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays.
- SD/HD/3G-SDI and Analog Inputs
- HDMI and Dual SDI Outputs
- Thunderbolt 3 Interface
- Supports SD and HD Resolutions
- 4:2:2 and 4:4:4 Color Sampling Support
- 8/10/12-Bit Color Depth
- RS-422 Deck Control
- HD to SD Down-Conversion
Blackmagic Design UltraStudio HD Mini
Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.- Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.
- Color Space Conversion: Hardware based real time.
HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. - Final Cut Pro X internal effects
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve - Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.
- Blackmagic Design: DaVinci Resolve, Fusion
Apple: Final Cut Pro X
Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
Avid: Media Composer, Pro Tools
Autodesk: Smoke
Steinberg: Cubase, Nuendo
Note: Check the Blackmagic Design website for updated application support lists.
| System Connection | USB-C (Thunderbolt 3) |
| Video Inputs | 1 x BNC (3G-SDI) Female 1 x 3BNC (Component / Composite) Female |
| Audio Inputs | 2 x 1/4" TRS Analog Female |
| Video Outputs | 2 x BNC (3G-SDI) Female 1 x HDMI (HDMI 1.4b) Female |
| Other I/O | 1 x DE-9/DB-9 RS-422 Input 1 x BNC Reference Input |
| Input Video Format | SDI (4:4:4/4:2:2) DCI 2K at 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 576i / 625 lines |
| Output Video Format | HDMI (8-Bit 4:4:4 RGB) 1080p at 30 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 30 fps |
| Embedded Audio | SDI: 16-Channel HDMI: 2-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M-A/425M-B |
| OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux *As of April, 2020: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | None |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
| Weight | 1.34 lb / 608 g |
| Package Weight | 0.83Kg |
| Box Dimensions (LxWxH) | 22.99cm x 19.94cm x 5.84cm |
In The Box
- 1 x Blackmagic Design UltraStudio HD Mini
- 1 x DaVinci Resolve SD Card
- 1 x SD Card with Software and Manual
- 1 x Limited 3-Year Warranty
Blackmagic Design UltraStudio HD Mini
Perform footage acquisition from digital or analog sources straight into your NLE of choice with the Blackmagic Design UltraStudio HD Mini. SDI and analog video inputs can import video from modern or legacy professional video equipment. Using the versatile Thunderbolt 3 interface, the UltraStudio HD Mini can send and receive SD and HD video up to 1080p at 60 fps with up to 16 channels of embedded audio. Available outputs include dual SDI for fill and key, as well as an HDMI output for driving consumer displays. With the built-in RS-422 connection, the UltraStudio HD Mini can also interface with professional broadcast decks.- Use the DIP switches on the front panel or the RS-422 deck control port on the rear for software control. The separately available Teranex Mini Smart Panel can be purchased separately and can be used to control the UltraStudio Mini as well as for confidence monitoring.
- Color Space Conversion: Hardware based real time.
HD Down Conversion: Real time 10-bit hardware down conversion on SDI B output, Composite and S-Video when working in HD video formats on playback. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles. - Final Cut Pro X internal effects
Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
DaVinci Resolve - Connects via Thunderbolt 3 to stream video. Bus-power over Thunderbolt 3 is sufficient to power the UltraStudio Mini, no separate power supply is required.
- Blackmagic Design: DaVinci Resolve, Fusion
Apple: Final Cut Pro X
Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
Avid: Media Composer, Pro Tools
Autodesk: Smoke
Steinberg: Cubase, Nuendo
Note: Check the Blackmagic Design website for updated application support lists.
| System Connection | USB-C (Thunderbolt 3) |
| Video Inputs | 1 x BNC (3G-SDI) Female 1 x 3BNC (Component / Composite) Female |
| Audio Inputs | 2 x 1/4" TRS Analog Female |
| Video Outputs | 2 x BNC (3G-SDI) Female 1 x HDMI (HDMI 1.4b) Female |
| Other I/O | 1 x DE-9/DB-9 RS-422 Input 1 x BNC Reference Input |
| Input Video Format | SDI (4:4:4/4:2:2) DCI 2K at 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 480i / 525 lines 576i / 625 lines |
| Output Video Format | HDMI (8-Bit 4:4:4 RGB) 1080p at 30 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 30 fps |
| Embedded Audio | SDI: 16-Channel HDMI: 2-Channel |
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M-A/425M-B |
| OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux *As of April, 2020: Check with manufacturer for the most up-to-date compatibility |
| Power I/O | None |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
| Dimensions | 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm |
| Weight | 1.34 lb / 608 g |
| Package Weight | 0.83Kg |
| Box Dimensions (LxWxH) | 22.99cm x 19.94cm x 5.84cm |
In The Box
- 1 x Blackmagic Design UltraStudio HD Mini
- 1 x DaVinci Resolve SD Card
- 1 x SD Card with Software and Manual
- 1 x Limited 3-Year Warranty
