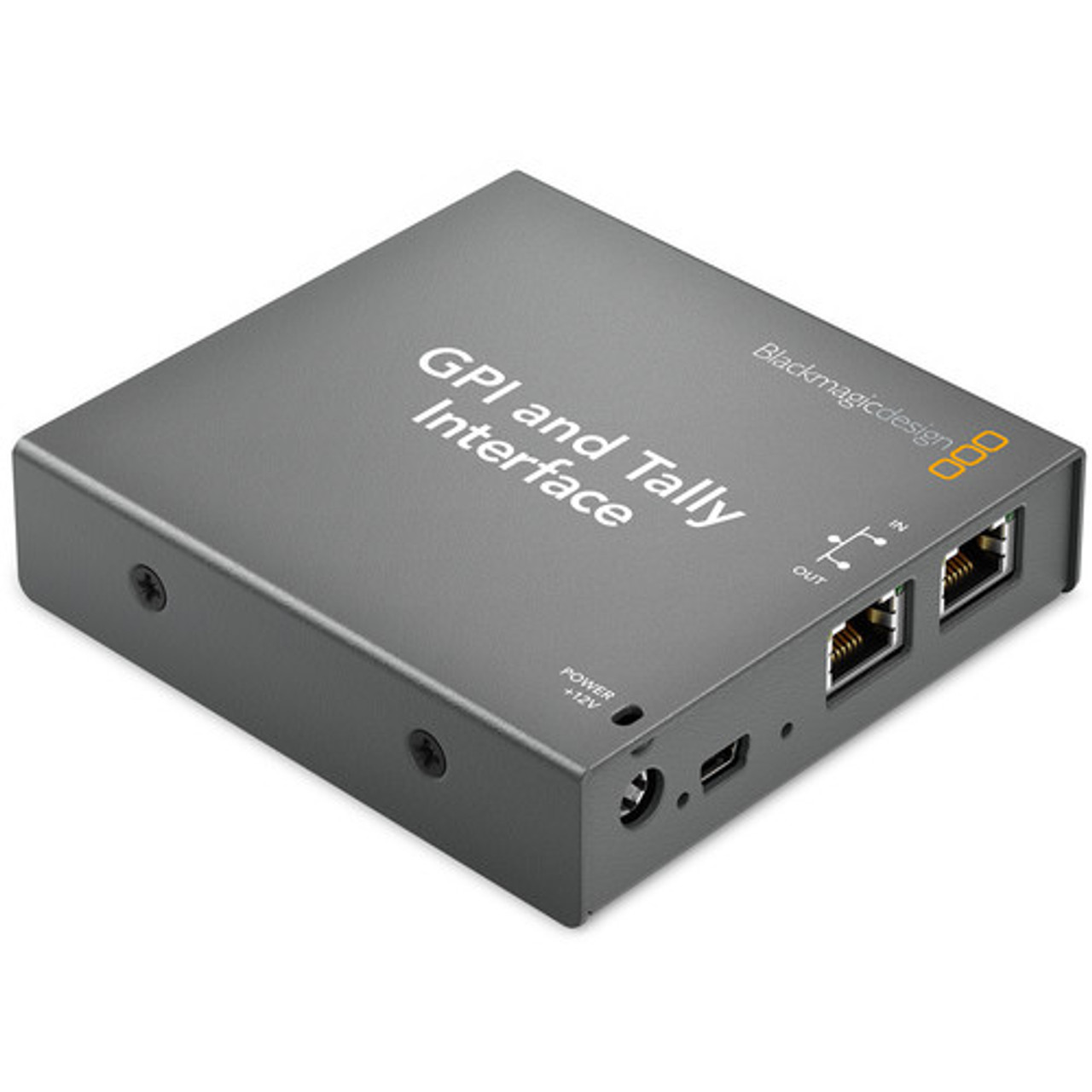

Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers. The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation.
Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.Displays tallies for indicating the on-air status of video signals8 contact closure inputs & 8 contact closure outputsCompatible with ATEM switchers and Videohub routersConnect to multiple interfaces offering enhance flexibility in operation.
- Displays Tallies for Video Signals
- Indicates On-air Status
- For ATEM Switchers / Videohub Routers
- 8 Contact Closure Inputs & Outputs
- Connects with Multiple Interfaces
Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
| Connections | dd |
| Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
| Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
| Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
| Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
| Extras | |
| Software Included | Configured via ATEM Switcher utility |
| Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
| Operating System | Microsoft Windows 7 and Apple Mac OS X |
| Power Supply | 12 V power supply included with international socket adapters for all countries |
| Package Weight | 0.42Kg |
| Box Dimensions (LxWxH) | 14.48cm x 13.84cm x 6.48cm |
In The Box
- 1 x Blackmagic Design GPI & Tally Interface for ATEM Production Switchers
- 1 x 12 V Power Supply
- 1 x 1-Year Limited Warranty
