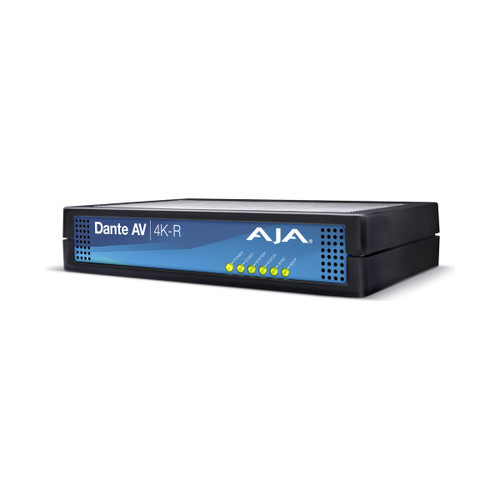

AJA Dante AV 12G-SDI/HDMI 4K Receiver DANTE-AV-4K-R DVT

Description
Specifications
0 Reviews

AJA Dante AV 12G-SDI/HDMI 4K Receiver. Use the AJA Dante AV 12G-SDI/HDMI 4K Receiver to decode Dante AV Ultra signals up to UHD 4K into 12G-SDI and HDMI video via your Ethernet network. In combination with the separately available transmitter, the receiver can operate in your conference room, lecture hall, or event space thanks to its modular system design.

Connect the unit to your Dante AV network using the primary Ethernet port. The receiver features one 12G-SDI and one HDMI 2.0 output capable of supporting signals up to 4Kp60.

Dante AV Ultra Signals up to UHD 4K
1 x 12G-SDI and 1 x HDMI 2.0 Output
Gigabit Ethernet Ports, PoE+
HDCP 2.2 Support, RS-422 Serial Control
2 x USB-A Ports, Mini-USB Host Port
1 x 3.5mm IR Input, 1 x 3.5mm IR Output
Dante Controller Software Compatible
Low Latency, PCM Digital Audio

AJA Dante AV 12G-SDI/HDMI 4K Receiver

Use the AJA Dante AV 12G-SDI/HDMI 4K Receiver to decode Dante AV Ultra signals up to UHD 4K into 12G-SDI and HDMI video via your Ethernet network. In combination with the separately available transmitter, the receiver can operate in your conference room, lecture hall, or event space thanks to its modular system design. Connect the unit to your Dante AV network using the primary Ethernet port. The receiver features one 12G-SDI and one HDMI 2.0 output capable of supporting signals up to 4Kp60. 8-channel, 48 kHz embedded PCM audio from those sources can be distributed across the network via TCP/IP protocols.

The receiver is compatible with Dante Controller software which allows you to route the video, audio, KVM, VISCA, and IR connections via your network to the destination of your choice. Two USB-A ports connect peripheral devices while a mini-USB port inputs your Windows or macOS computer. IR communication is facilitated using the 3.5mm input and output ports and included emitter and receiver units. The receiver supports HDCP 2.2 and has a DB-9 port for RS-422 serial control. Five LED indicators on the front panel of the unit display power, codec, system, sync, and HDCP status.

Dante AV is a 1 GigE networking solution that delivers up to UHD 4Kp60 video at a 0.5 frame latency over IP connection. It features a JPEG 2000 codec for high quality visuals with network efficiency. The codec supports lossy and lossless coding and has up to 16384 components. Easily integrate Dante-enabled audio products into your setup for a complete AV-over-IP ecosystem.
Use the Dante Controller software with your macOS or Windows computer to set up your video and audio signal routing between Dante devices. Control the video and audio connections and move them over in real time to an Ethernet network. Take the receiver's embedded audio and configure it as a separate audio source channel on the network using the Dante Via. The separately available Dante Virtual Soundcard can emulate a physical PC or Mac soundcard via the Dante network.
The primary Ethernet port supports PoE+ for reduced cable runs. Included with the receiver unit is a power adapter capable of converting 100-240 VAC at 50/60 Hz to 12 VDC. A DIN 4-pin power input accepts the power adapter cable.
The Dante AV receiver supports various VESA formats from WUXGA to VGA to allow efficient monitoring of your networked connections. An RCA analog audio port outputs audio signals to your monitor.

Audio Inputs	None
Video Outputs	1 x HDMI (2.0) Female 1 x BNC (12G-SDI) Female
Audio Outputs	1 x 2RCA Analog Female
Other I/O	1 x BNC Reference Input 1 x RJ45 LAN, PoE 1 x RJ45 LAN 1 x DE-9/DB-9 RS-422 Input 2 x USB-A 1 x Mini-USB Input 1 x 1/8" / 3.5 mm IR Input 1 x 1/8" / 3.5 mm IR Output
Expansion Slots	None
Latency	0.5 Frame
Output Video Format	SDI (10-Bit 4:2:2 YCC) DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 720p 50/59.94/60 fps HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K 23.98/24/25/29.97/30/50/59.94/60 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 720p 50/59.94/60 fps HDMI / SDI (8-Bit 4:4:4) WUXGA (1920 x 1200) 60 fps UXGA (1600 x 1200) 60 fps SXGA (1280 x 1024) 60 fps XGA (1024 x 768) 60 fps SVGA (800 x 600) 60 fps VGA (640 x 480) 60 fps
Output Audio Format	LPCM (Linear Pulse-Code Modulation): 48 kHz / 24-Bit
Embedded Audio	SDI Input: 8-Channel HDMI Input: 8-Channel
Video Standard Compliance	SMPTE 292M/424M/425M-A/ST-2081/ST-2082
HDCP Support	Version 2.2
EDID Support	None
HDR Compatibility	None
Tally Light	Yes
Wi-Fi	Yes
OS Compatibility	Windows macOS *As of April, 2023: Check with manufacturer for the most up-to-date compatibility
Power I/O	1 x XLR 4-Pin (12 VDC) Input
PoE Support	PoE+ 802.3at
Power Consumption	Power Supply: 100 to 240 VAC at 1.5 A
Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 90% (Non-Condensing)
Certifications	CE, EN 62868-1, FCC, ICES, IEC 62368-1, EN 55032: 2015 + A11: 2020, EN 55035: 2017 + A11: 2020, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 61000-4-2: 2009, EN 61000-4-3: 2006 + A1: 2008 + A2: 2010, EN 61000-4-4: 2012, EN 61000-4-5: 2014/A1:2017, EN 61000-4-6: 2014, EN 61000-4-8: 2010, EN 61000-4-11: 2020, Kcc, BSMI, VCCI *as per Manufacturer
Dimensions	8.74 x 7.09 x 1.65" / 22.2 x 18.01 x 4.19 cm
Weight	3.1 lb / 1.4 kg

In The Box

1 x AJA Dante AV 12G-SDI/HDMI 4K Receiver
1 x IR Emitter (3.5mm)
1 x IR Receiver (3.5mm)
1 x Power Adapter
1 x Limited 5-Year Manufacturer Warranty
