Designed for select models of their NAS arrays, the M2D20 M.2 Adapter Card from Synology will supercharge the I/O performance of your NAS. The multi-queue capability of NVMe SSDs benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments. Built as a PCIe card with a low profile and full height form factor, the M2D20 has M.2 slots, each of which supports an M.2 2280 or 22110 SSD. Another advantage of creating an SSD cache via a PCIe card, as compared to using your array's 2.5" drive bays, is that the 2.5" bays on your array are still available for file storage.
The M2D20 interfaces with your compatible NAS using a PCIe 3.0 x8 host bus interface and uses a PCIe NVMe storage interface.. NVMe Enabled.
- For Select Synology NAS Units
- Create an SSD Cache via PCIe
- Dual M.2 2280/22110 Slots
- PCIe 3.0 x8 Host Bus Interface
- Low Profile and Full Bracket

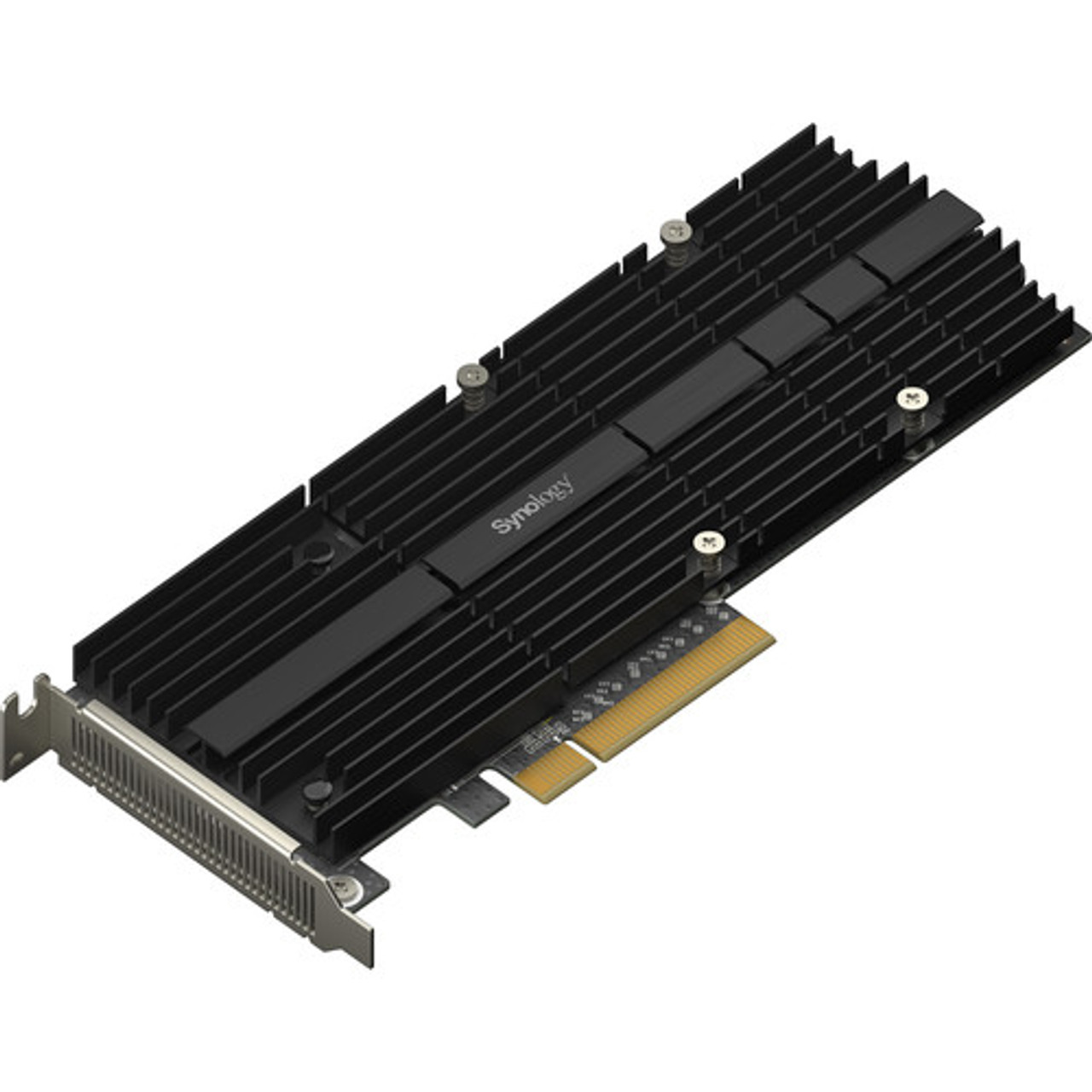

Synology M2D20 M.2 Adapter Card
Designed for select models of their NAS arrays, the M2D20 M.2 Adapter Card from Synology will supercharge the I/O performance of your NAS. The multi-queue capability of NVMe SSDs benefits latency-sensitive applications such as photo indexing, file search, and virtualization deployments.
Built as a PCIe card with a low profile and full height form factor, the M2D20 has M.2 slots, each of which supports an M.2 2280 or 22110 SSD. Another advantage of creating an SSD cache via a PCIe card, as compared to using your array's 2.5" drive bays, is that the 2.5" bays on your array are still available for file storage. The M2D20 interfaces with your compatible NAS using a PCIe 3.0 x8 host bus interface and uses a PCIe NVMe storage interface.
NVMe Enabled
Accelerate random I/O performance with the dual M.2 2280/22110 NVMe SSD slots.Dedicated Cache Slots
Free up primary drive bays for data storage. With the M2D20, you won't need to use 2.5" drive bays to create an SSD cache, since it installs into a PCIe slot.Matches with Synology SNV3000 Series NVMe SSDs
Install Synology SNV3000 Series NVMe SSDs on the M2D20 adapter card for fast and streamlined cache acceleration, and take full advantage of Synology SSD's enterprise-grade endurance, performance, and reliability with your Synology NAS.Easy IT Upgrade
Upgrade your existing storage infrastructure efficiently.SA Series
SA3600 and SA340020 Series
RS820RP+ and RS820+19 Series
DS2419+ and DS1819+18 Series
RS2818RP+, RS2418RP+, RS2418+, DS3018xs, and DS1618+Host Bus Interface | PCIe 3.0 x8 |
Bracket Height | Low Profile and Full Height |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -5 to 140°F / -21 to 60°C |
Relative Humidity | 5 to 95% |
Dimensions | 2.82 x 7.16 x 0.62" / 71.75 x 181.9 x 15.8 mm |
Weight | Not Specified by Manufacturer |
Storage Interface | PCIe NVMe |
Supported Form Factors | 2280 and 22110 |
Connector Type and Quantity | M-Key, 2 Slots |
In The Box
- 1 x Synology M2D20 M.2 Adapter Card
- 1 x Limited 5-Year Warranty (from date of purchase)
