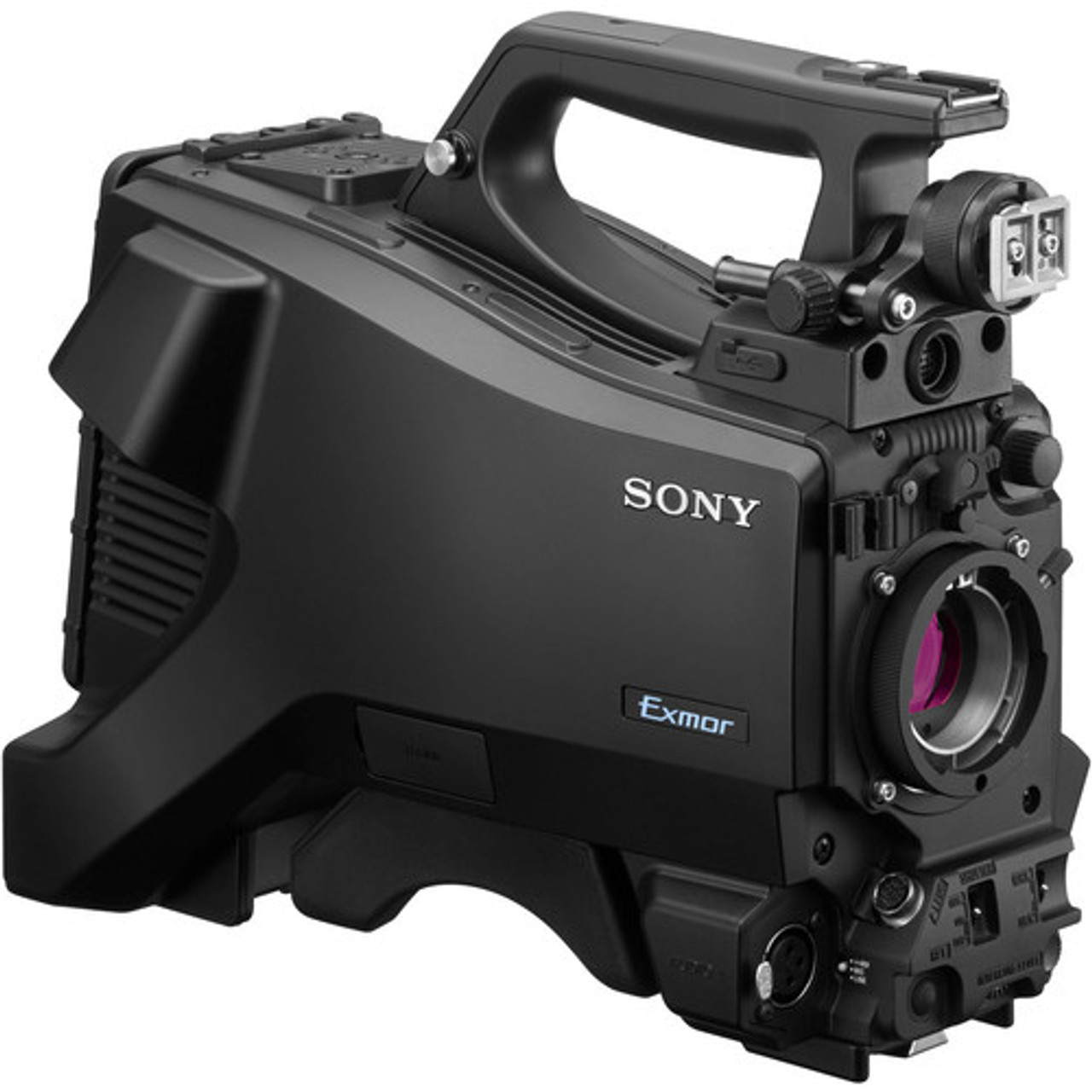

Sony HXC-FB80HN HD Portable Camera (Body Only)
Sony HXC-FB80HN HD Portable Camera (Body Only)
SKU:
HXCFB80HN
Availability:
Enquire for ETA
The HXC-FB80HN HD Portable Camera from Sony features three Sony 2/3" Exmor CMOS sensors offering full-HD picture quality. Built on a 3G-SDI platform, the HXC-FB80 is capable of 1080/50p, 59.94p signal processing while maintaining low power consumption. The HXC-FB80 also features 3G-SDI signals including 1080/50p and 59.94p.
The processor supports 1080p/23.98sF in addition to 25psF and 29.97psF. Combined with the HXCU-FB80 CCU, the camera's output is 4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma).
Sony HXC-FB80HN HD Portable Camera (Body Only)
The HXC-FB80HN HD Portable Camera from Sony features three Sony 2/3" Exmor CMOS sensors offering full-HD picture quality. Built on a 3G-SDI platform, the HXC-FB80 is capable of 1080/50p, 59.94p signal processing while maintaining low power consumption. The HXC-FB80 also features 3G-SDI signals including 1080/50p and 59.94p. The processor supports 1080p/23.98sF in addition to 25psF and 29.97psF. Combined with the HXCU-FB80 CCU, the camera's output is 4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma). The HXCU-FB80 CCU provides support for up to 24 units, forming a complete multi camera system. The system design is based on a 3G-HD platform. The camera head can pass an additional 1080i/50, 59.94 signal to the HXCU-FB80 while operating at 1.5G (1080i/50,59.94).Three Sony 2/3" Exmor CMOS sensors3G-SDI output signals including 1080/50p and 59.94p4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma) if combined with the HXCU-FB80 CCUSupports up to 24 unitsDistance between the camera head and CCU can be extended up to 1968'Transmission can be extended up to 10km using a local power supply with single-mode fiber cable (SMF)Comes equipped with a number of creative image control features such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation, and ALAC (Auto Lens Aberration Compensation)ND filter can be remotely controlled either by external RCP/RM or via the CCU because of the adopted filter servo motor in the camera head
| Camera | |
|---|---|
| Image Pickup Device | 3-chip 2/3" type CMOS |
| Effective Picture Elements | 1920 x 1080 (H x V) |
| Signal Format | HD: 1080p: 59.94, 50, 29.97sF, 25sF, 23.98sF 1080i: 59.94, 50 720p: 59.94, 50 SD: 480i: 59.94 576i: 50 |
| Lens Mount | Sony 2/3" type bayonet mount |
| Sensitivity | F12 (59.94 Hz), F13 (50 Hz) (at 2000 lux, 3200K, 89.9% reflectance) |
| Signal-to-Noise Ratio | Typical 60 dB (1080/59.94i) |
| Input/Output | |
| Audio Input | 2 x XLR Type: 3-pin, female |
| Prompter Output/Genlock Input | 1 x BNC |
| SDI | Input/Output: 1 x BNC SMPTE ST292-1, for HD prompter output or HD video trunk input |
| Test Output | Test output (Analog output with/without characters), or HD/SD Sync Out) |
| SDI Output | 1 x BNC SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable |
| CCU | (N): 1 x Optical fiber, CCFN cable or single mode fiber cable (LC type) (L): 1 x Optical fiber, LEMO cable |
| Power Supply | Distance of Power Supply with Portable Lens and HXCU-FB80 (N): 1968' (600 m) maximum by CCFN Sony Hybrid Type Fiber Cable (L): 1968' (600 m) maximum by LEMO cable Distance of Fiber Cable by Local Power Supply (with HXCU-FB80) (N): 10 km maximum by Single Mode Fiber Cable (LC type) |
| Intercom | 1 x XLR type: 5-pin, female |
| Trunk | Input/Output TRUNK LINE 1 x D-sub 9-pin, female, RS-232C, or Remote 8-pin, RS-422A |
| Input/Output | EXT 1 x D-sub 9-pin, female (in TRUNK I/O) |
| General | |
| Power Consumption | Approximately 19 W |
| Dimensions (W x H x D) | 6.4 x 10.5 x 12.4" (16.2 x 26.6 x 31.5 cm) |
| Weight | 7.5 lb (3.4 kg) |
| Packaging Info | |
| Package Weight | 9.655 lb |
| Box Dimensions (LxWxH) | 18.7 x 15.4 x 11.2" |
In The Box
- 1 x Sony HXC-FB80HN HD Portable Camera (Body Only)
- 1 x Limited 1-Year Warranty
Sony HXC-FB80HN HD Portable Camera (Body Only)
The HXC-FB80HN HD Portable Camera from Sony features three Sony 2/3" Exmor CMOS sensors offering full-HD picture quality. Built on a 3G-SDI platform, the HXC-FB80 is capable of 1080/50p, 59.94p signal processing while maintaining low power consumption. The HXC-FB80 also features 3G-SDI signals including 1080/50p and 59.94p. The processor supports 1080p/23.98sF in addition to 25psF and 29.97psF. Combined with the HXCU-FB80 CCU, the camera's output is 4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma). The HXCU-FB80 CCU provides support for up to 24 units, forming a complete multi camera system. The system design is based on a 3G-HD platform. The camera head can pass an additional 1080i/50, 59.94 signal to the HXCU-FB80 while operating at 1.5G (1080i/50,59.94).Three Sony 2/3" Exmor CMOS sensors3G-SDI output signals including 1080/50p and 59.94p4K up-scalable and capable of HD HDR (HLG, Hybrid Log-Gamma) if combined with the HXCU-FB80 CCUSupports up to 24 unitsDistance between the camera head and CCU can be extended up to 1968'Transmission can be extended up to 10km using a local power supply with single-mode fiber cable (SMF)Comes equipped with a number of creative image control features such as MultiMatrix, Skin Tone Detail, Low Key Saturation, Knee Saturation, and ALAC (Auto Lens Aberration Compensation)ND filter can be remotely controlled either by external RCP/RM or via the CCU because of the adopted filter servo motor in the camera head
| Camera | |
|---|---|
| Image Pickup Device | 3-chip 2/3" type CMOS |
| Effective Picture Elements | 1920 x 1080 (H x V) |
| Signal Format | HD: 1080p: 59.94, 50, 29.97sF, 25sF, 23.98sF 1080i: 59.94, 50 720p: 59.94, 50 SD: 480i: 59.94 576i: 50 |
| Lens Mount | Sony 2/3" type bayonet mount |
| Sensitivity | F12 (59.94 Hz), F13 (50 Hz) (at 2000 lux, 3200K, 89.9% reflectance) |
| Signal-to-Noise Ratio | Typical 60 dB (1080/59.94i) |
| Input/Output | |
| Audio Input | 2 x XLR Type: 3-pin, female |
| Prompter Output/Genlock Input | 1 x BNC |
| SDI | Input/Output: 1 x BNC SMPTE ST292-1, for HD prompter output or HD video trunk input |
| Test Output | Test output (Analog output with/without characters), or HD/SD Sync Out) |
| SDI Output | 1 x BNC SMPTE ST425-1/ST292-1/259M; 3G/HD-SDI or SD-SDI selectable |
| CCU | (N): 1 x Optical fiber, CCFN cable or single mode fiber cable (LC type) (L): 1 x Optical fiber, LEMO cable |
| Power Supply | Distance of Power Supply with Portable Lens and HXCU-FB80 (N): 1968' (600 m) maximum by CCFN Sony Hybrid Type Fiber Cable (L): 1968' (600 m) maximum by LEMO cable Distance of Fiber Cable by Local Power Supply (with HXCU-FB80) (N): 10 km maximum by Single Mode Fiber Cable (LC type) |
| Intercom | 1 x XLR type: 5-pin, female |
| Trunk | Input/Output TRUNK LINE 1 x D-sub 9-pin, female, RS-232C, or Remote 8-pin, RS-422A |
| Input/Output | EXT 1 x D-sub 9-pin, female (in TRUNK I/O) |
| General | |
| Power Consumption | Approximately 19 W |
| Dimensions (W x H x D) | 6.4 x 10.5 x 12.4" (16.2 x 26.6 x 31.5 cm) |
| Weight | 7.5 lb (3.4 kg) |
| Packaging Info | |
| Package Weight | 9.655 lb |
| Box Dimensions (LxWxH) | 18.7 x 15.4 x 11.2" |
In The Box
- 1 x Sony HXC-FB80HN HD Portable Camera (Body Only)
- 1 x Limited 1-Year Warranty
