Sony HDVF-EL20 0.7&quot; Full HD Color OLED HDVF-EL20

Description
Specifications
0 Reviews

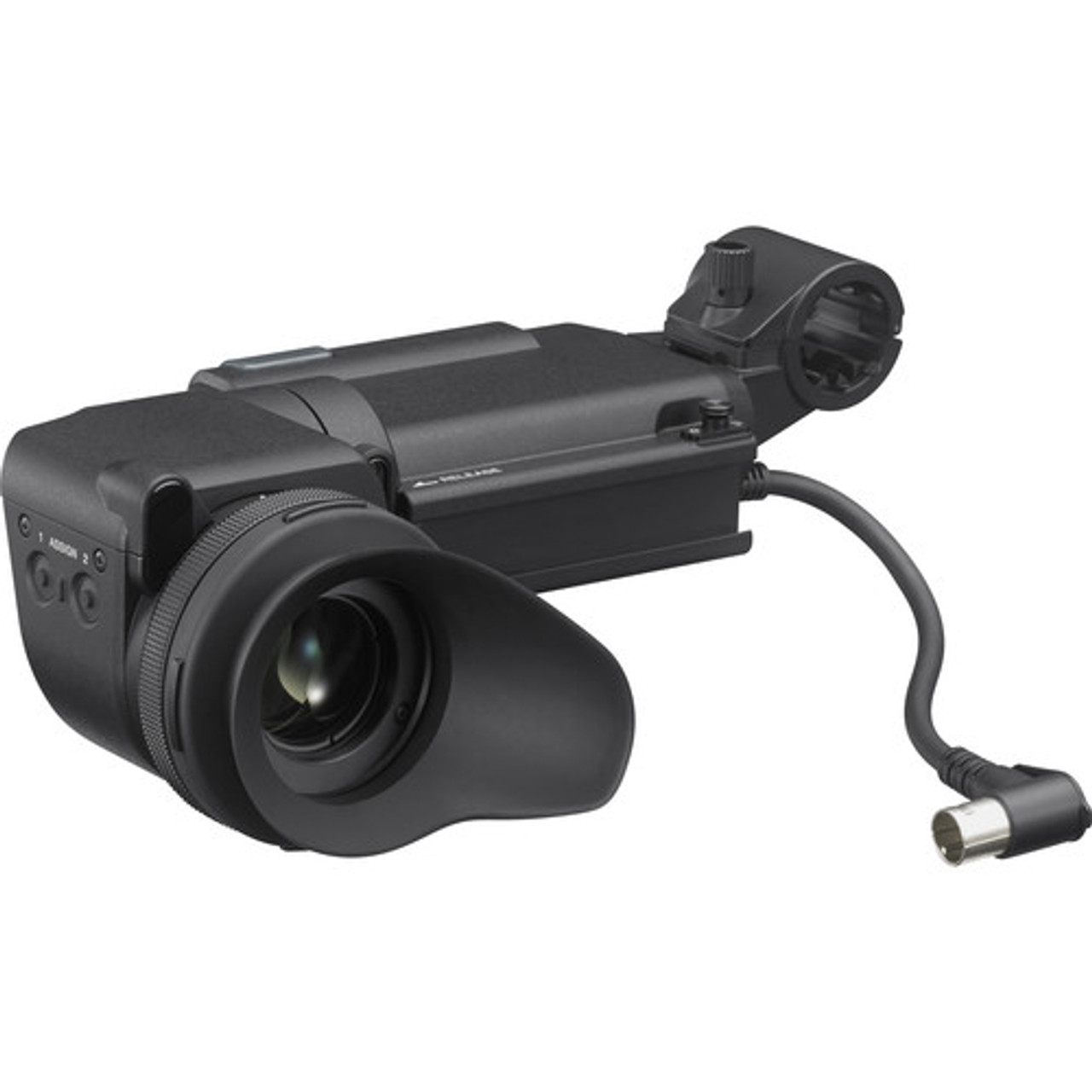

The Sony HDVF-EL20 0.7" Full HD Color OLED Viewfinder is used with a wide range of Sony cameras that feature the 20-pin round HDVF viewfinder interface. It features quick pixel response for tracking and focusing on moving objects. The use of OLED (Organic Light Emitting Diode) display technology helps deliver excellent contrast and a wide dynamic range.The viewfinder's specially developed optical loupe provides a high eye-point, which allows operators to see a wider area of the picture if they stand back from the eyepiece.

The image displayed on the viewfinder can be downscaled via the menu or assignable button to avoid vignetting.. Compatibility.

Sony HDVF-EL20 0.7" Full HD Color OLED Viewfinder for Select Sony 4K/HD Cameras

The viewfinder's specially developed optical loupe provides a high eye-point, which allows operators to see a wider area of the picture if they stand back from the eyepiece. The image displayed on the viewfinder can be downscaled via the menu or assignable button to avoid vignetting.

Compatibility

HD Color Camera: HDC-4300, HDC-2500 series, HSC-300R/100R series
Disc Camcorder: PDW-680/700/750/850/F800
Solid State Memory Camcorder: PMW-500, PXW-X400/X500
Digital Motion Picture Camera: F65

OLED Display Technology

Quick motion picture response and production of images with minimal blurring and ghosting
Performance for shooting on location is not influenced by changes in environmental temperature
OLED panel allows a pure black screen to be displayed
Thanks to high-peak brightness, the panel is capable of displaying brilliance of sparkling objects such as twinkling of stars or glittering glass
Self-luminescent OLED panel allows for excellent color reproduction across the entire spectrum in virtually any shade or brightness

Focus Assist Function

Peaking Function: Edge enhancement can be performed in the horizontal/vertical direction on the entire screen; coloring the edge enhancement part can improve visibility
Peaking Plus Function: Edge enhancement can be performed on the object that is specified using a color, an area selected, or both
Image Magnification (Focus Mag) Function: Displays a part of the image expanded to twice the size, allowing you to focus with ease

Assignable Switch and Presets

Brightness and contrast can be pre-set for selection through an assignable switch or a menu operation
Two assignable switches are provided for the storage of frequently used functions

Tally Lamps

The viewfinder has three tally lamps (red, green, and yellow), which light up in response to tally signals

High-Performance Loupe

The four-group seven-element lens (including aspheric lens) delivers pictures with low distortion and allows adjustment over a wide range of visibility
The separately available close-up lens (Ø37) enables shifting the visibility ratio to the far-sighted side


Display Type	0.7" (1.8 cm) Color OLED
Display Area (HxV)	0.6 x 0.4" (1.5 x 1.0 cm) 16:9 Aspect ratio
Diopter Range	For Loupe: -4.0 to +2.0 m^-1
Brightness	200 cd/m² (Typical)
Effective Pixels	1920 (H) x 1080 (V) x 3 (RGB)
Color Temperature	D65
Digital Scanning Frequency (H / V)	1080 Scanning Lines: 23.98PsF: 26.97 kHz / 47.95 Hz 24PsF: 27.00 kHz / 48 Hz 25PsF: 28.13 kHz / 50 Hz 29.97PsF: 33.72 kHz / 59.94 Hz 50i: 28.13 kHz / 50 Hz 59.94i: 33.72 kHz / 59.94 Hz 720 Scanning Lines: 50P: 36.00 kHz / 50 Hz 59.94P: 44.96 kHz / 59.94 Hz
Input Signals	Y: 1.0 Vpp, Synchronous, 75 Ohm terminated Pb, Pr: 0.7 Vpp, Asynchronous, 75 Ohm terminated
Camera Connector	Round type 20-pin
Power Supply	10.5 to 17.0 VDC (Supplied by the camera)
Power Consumption	6.9 W
Temperature	Storage: -4 to 140°F (-20 to 60°C) Operating: -4 to 113°F (-20 to 45°C)
Folded Dimensions	8.3 x 8.4 x 3.3" (20.7 x 21.2 x 8.0 cm)
Weight	1.7 lb (0.8 kg)
Packaging Info
Package Weight	3.15 lb
Box Dimensions (LxWxH)	12.9 x 10.6 x 6.2"
