Magewell Eco Capture Quad SDI M.2 Capture Card

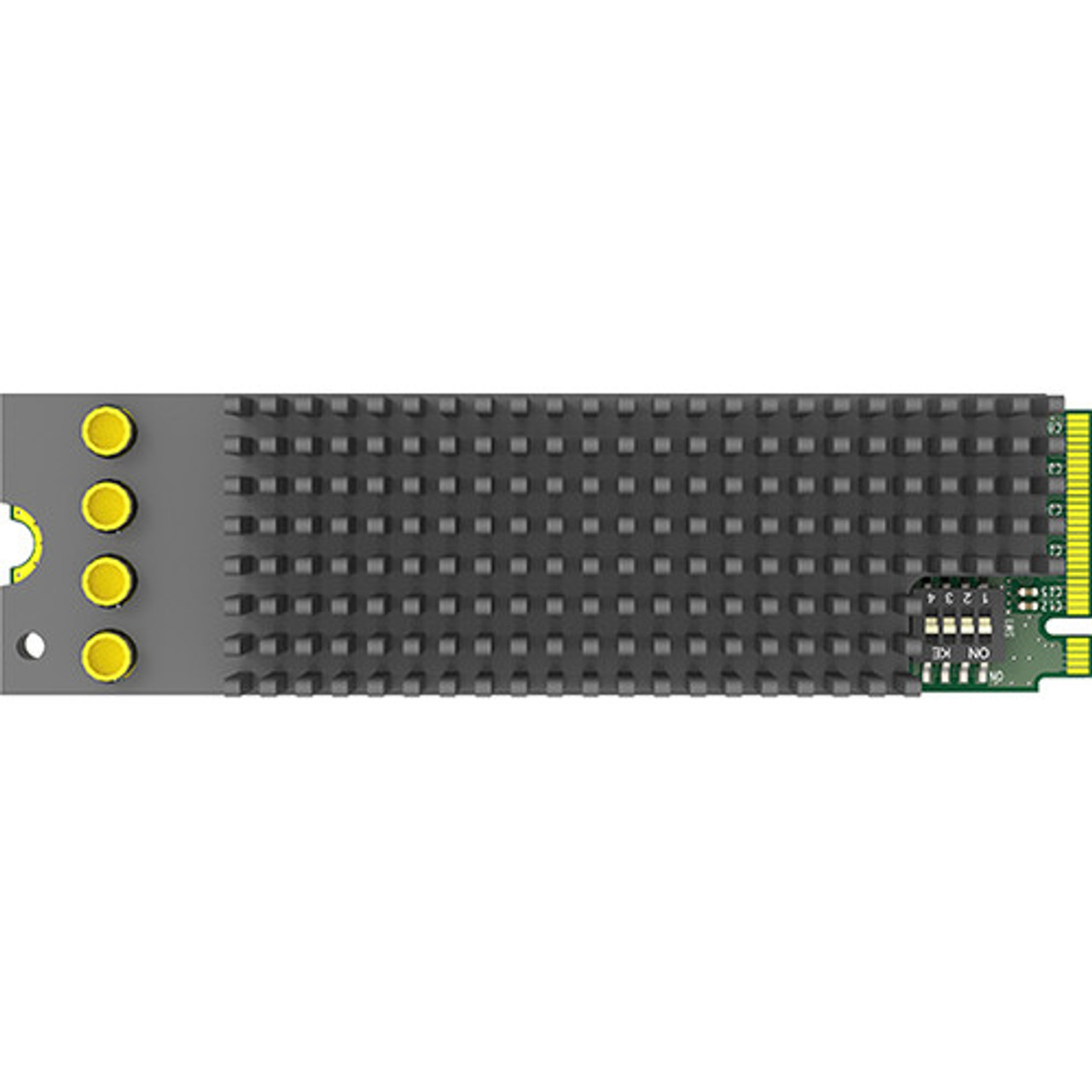

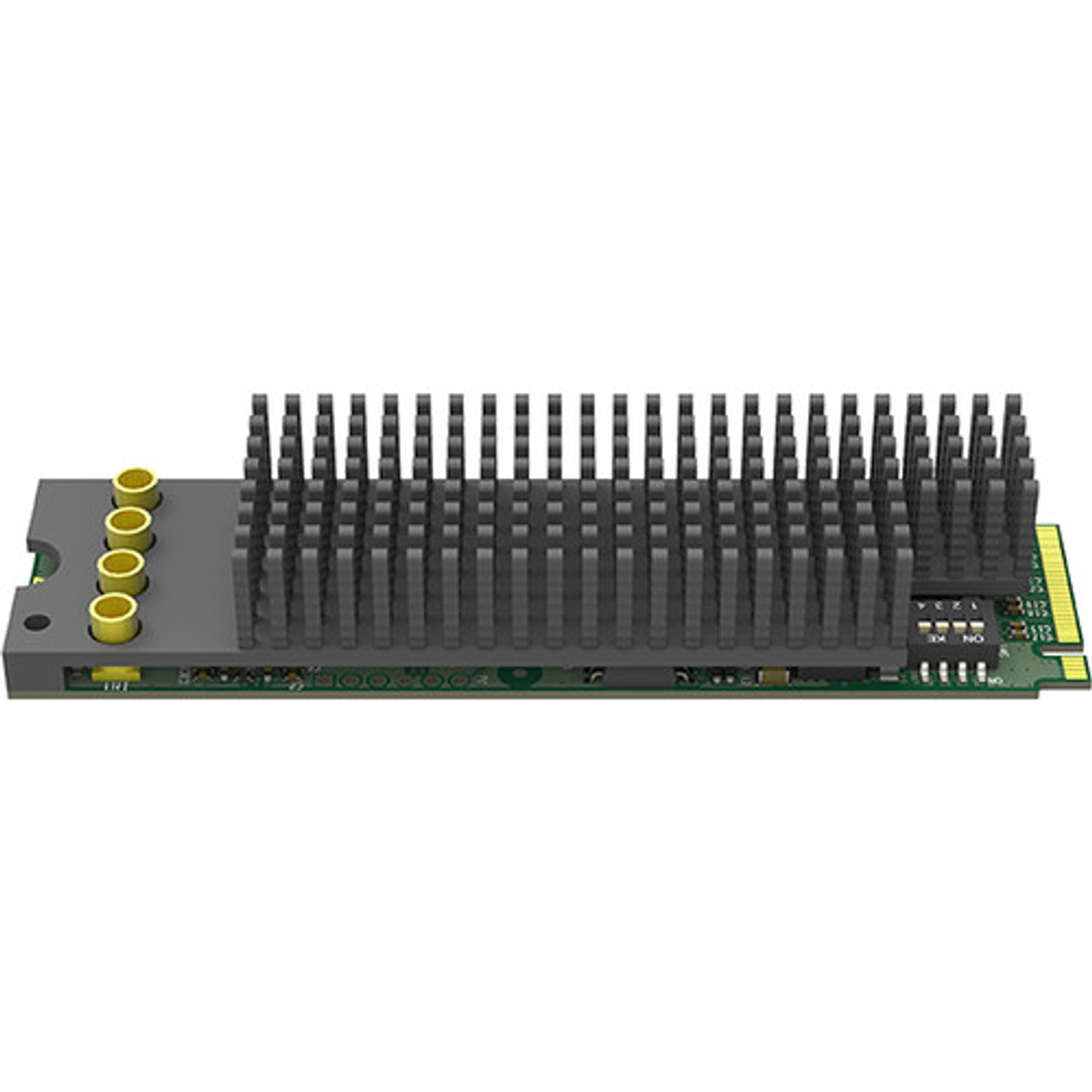

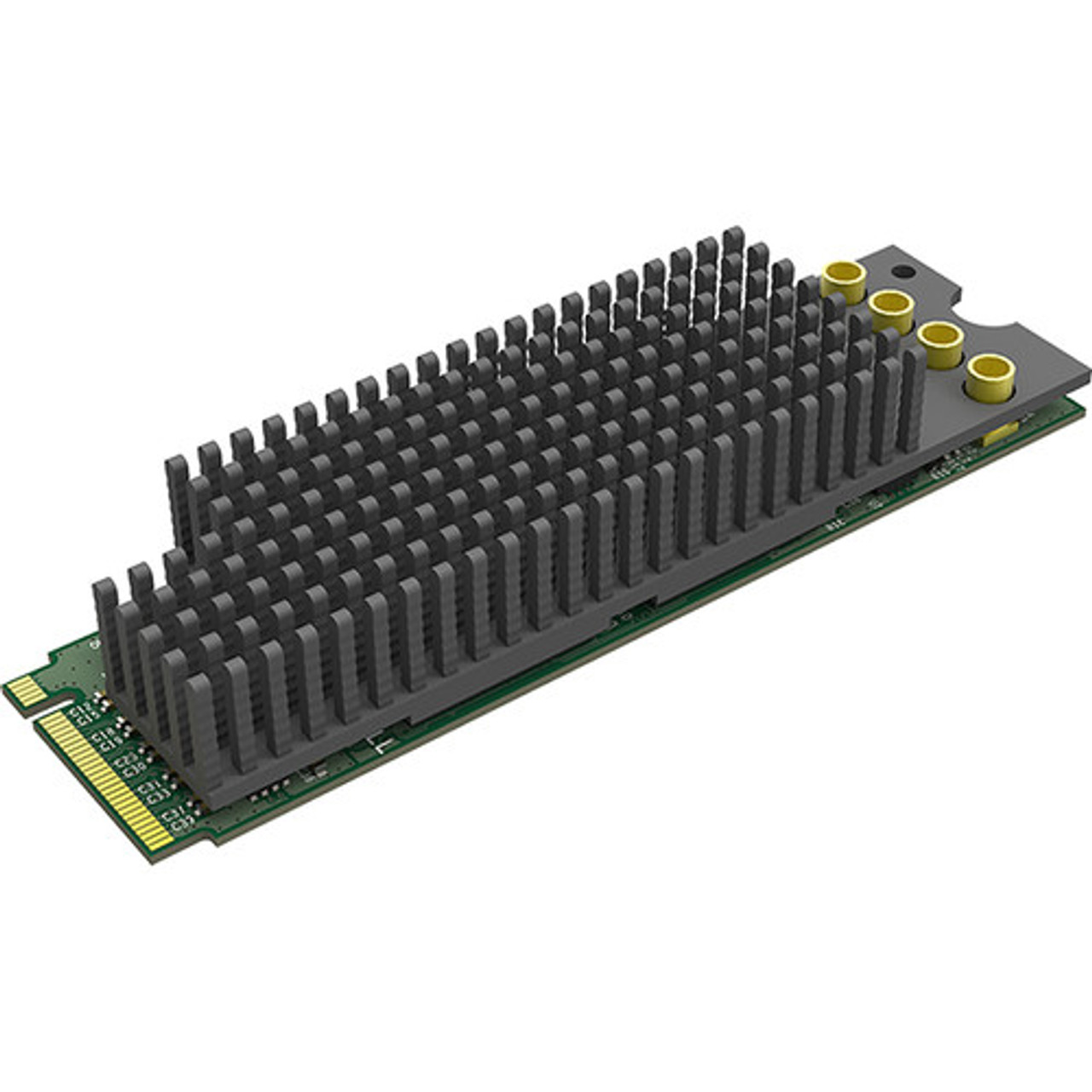

Capture four channels of SD/HD/3G/2K-SDI video plus embedded audio using the Eco Capture Quad SDI M.2 Capture Card from Magewell. This M.2 2280 capture card is compatible with video formats up to 2048 x 1080, and features four MMCX ports that support SD/HD/3G/2K-SDI input via the four included MMCX to BNC cables. Capture uncompressed video from a camera or switcher's SDI output on your computer for recording, editing, or streaming.

The Eco Capture Quad SDI M.2 Capture Card is compatible with Windows and Linux systems. Extraction of audio-formation and channel-status data is supported, as are closed caption and multiple color spaces in 8-bit formats. Video processing features include frame-rate conversion, cropping, scaling, de-interlacing, and aspect-ratio conversion. Multiple Magewell 11540 cards can be used and numbered in one system.

SDI-Specific Features

• Integrated cable equalizer supporting cable lengths up to 754.6' for HD signals
• SD, HD, 3Ga, 3Gb, 3Gb-DL, and 3Gb-DS support
• 2K (2048 x 1080) mode
• RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
• 10-/12-bit color depth
• Extraction of SMPTE 352 payload identifier
• Up to eight mono audio channels at 48 kHz
• Extraction of audio formation information and channel status data supported
• Closed caption support

Video Capture Format Support

• Image capture resolutions up to 2048 x 1080 pixels
• Capture frame rates up to 144 fps (actual capture frame rate can be limited by PCIe bandwidth and image resolution)
• 4:2:0 8-bit capture formats: NV12, I420, YV12
• 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
• 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
• Additional capture formats are supported via Capture SDK for DirectKS

Video Processing Features

• Video processing pipelines with ~180 MP/s processing bandwidth
• 10-bit 4:4:4 video processing
• Video cropping and scaling
• Video de-interlacing:
  Weave
  Blend top & bottom field
  Top field only
  Bottom field only
• Video aspect-ratio conversion:
  Auto or manual selection of input aspect ratio
  Auto or manual selection of capture aspect ratio
  Three aspect-ratio conversion modes: Ignore (Anamorphic), Cropping or Padding
  (Letterbox or Pillarbox)
• Video color-format conversion:
  Auto or manual selection of input color format & quantization range
  Auto or manual selection of capture color format, quantization range, and saturation range
  Supports RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  Supports limited or full quantization range
  Supports limited, full, and 'extended gamut' saturation range
• Video frame-rate conversion

In The Box

• 1 x Magewell Eco Capture Quad SDI M.2 Capture Card
• 4 x MMCX to SDI Breakout Cable
• 1 x Limited 1-Year Warranty
