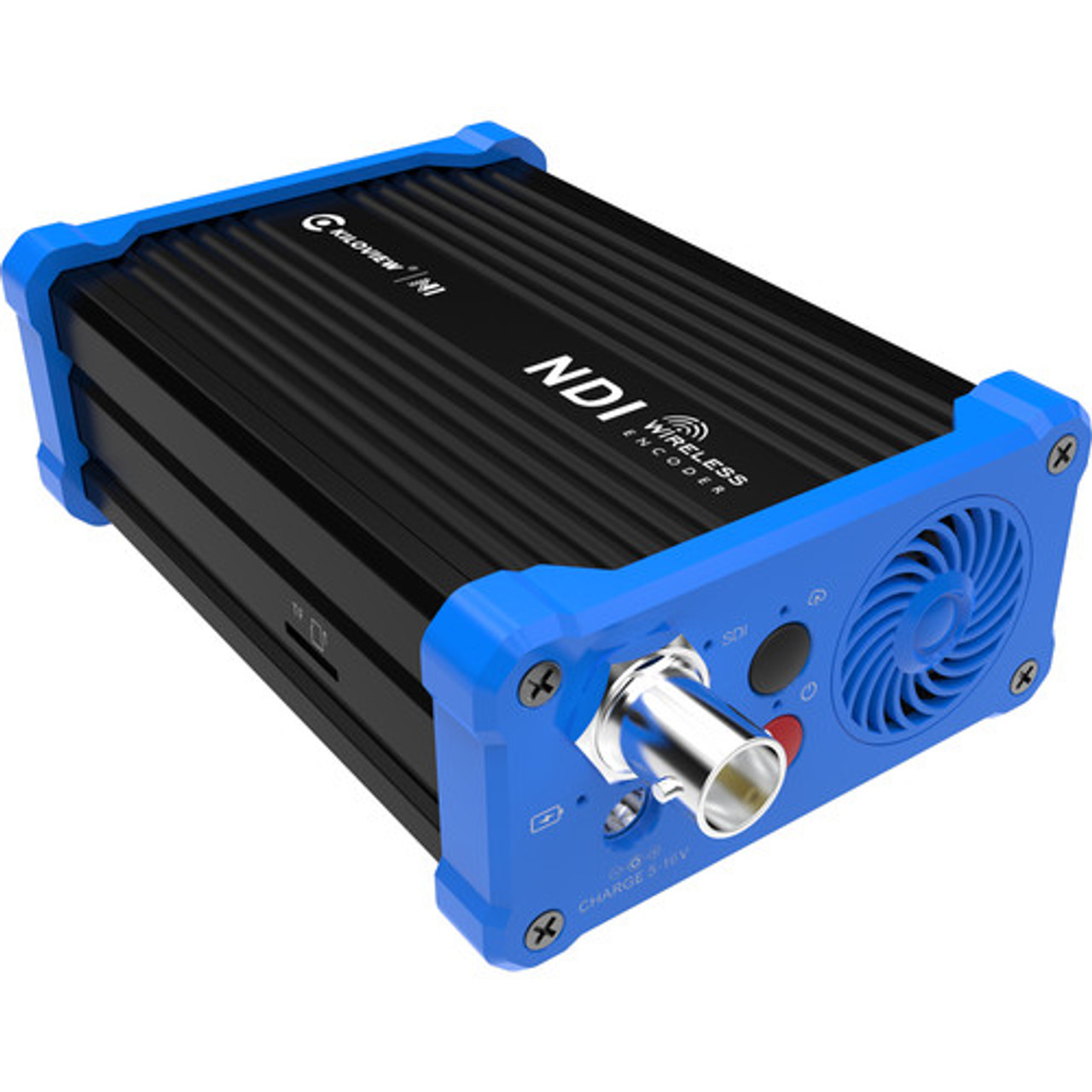

Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
SKU:
N1
Availability:
Enquire for ETA
Write a Review
Kiloview
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency. The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN.
Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application.
- SDI to NDI|HX Video Encoder/Converter
- Resolution Support up to 1080p60 Video
- Dual-Stream Output, Lossless Quality
- Enabled with Wi-Fi & USB/Wired Ethernet
- Portable Form Factor, Built-In Battery
- microSD Card H.264/AVC/MJPEG Recording
- USB Tally, USB-to-RJ45 Adapter Included
- Shoe Adapter & Mount Included
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency.
The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN. Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application. A second USB port also allows you to control the unit via serial control using a separately available USB to serial adapter, or to use the included USB tally light.
The unit is powered using its internal 6800mAh battery, so you can avoid cabling while it's in use. There are two mounting threads on the bottom and a shoe mount with removable shoe adapter are included to mount onto any standard shoe mount. A power adapter is included to charge the battery.
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency.
The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN. Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application. A second USB port also allows you to control the unit via serial control using a separately available USB to serial adapter, or to use the included USB tally light.
The unit is powered using its internal 6800mAh battery, so you can avoid cabling while it's in use. There are two mounting threads on the bottom and a shoe mount with removable shoe adapter are included to mount onto any standard shoe mount. A power adapter is included to charge the battery.
| Video Input Connectors | 1 x BNC (3G-SDI) Female |
| Input Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 24/25/29.97/30/50/59.94/60 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | SDI |
| Video Output Connectors | 1 x RJ45 (NDI / HX) Female |
| Output Video Format | Wireless / RJ45 / USB Type-A 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 24/25/29.97/30/50/59.94/60 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | RJ45 Wireless |
| HDR Compatibility | Not Specified by Manufacturer |
| Latency | SDI Input: 150 ms |
| Other I/O | 2 x USB Type-A Control, LAN Input/Output |
| Expansion Slots | None |
| Video IP Encoding | H.264, MJPEG, MP4, NDI: 1280 x 720 to 1920 x 1080 at 60p |
| Audio IP Encoding | AAC, G.711 |
| Memory Card Slots | 1 x microSD (Unspecified Type) |
| Wi-Fi Support | Yes |
| OS Compatibility | Android |
| Built-In Battery | 6800 mAh |
| Power Connector | 1 x Barrel (12 VDC at 1 A) Input |
| Power Consumption | Device: 3.7 VDC (6.5 W) |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions | 4.5 x 3 x 1.4" / 115 x 75 x 35 mm |
| Weight | 13.4 oz / 380 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 0.75Kg |
| Box Dimensions (LxWxH) | 20.83cm x 15.75cm x 8.38cm |
In The Box
- 1 x Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
- 1 x Power Adapter
- 1 x DC Cable
- 2 x Wi-Fi Antenna
- 1 x USB to RJ45 Converter
- 1 x USB Tally
- 1 x Shoe Mount
- 1 x Shoe Adapter
- 1 x Limited 1-Year Warranty
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency.
The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN. Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application. A second USB port also allows you to control the unit via serial control using a separately available USB to serial adapter, or to use the included USB tally light.
The unit is powered using its internal 6800mAh battery, so you can avoid cabling while it's in use. There are two mounting threads on the bottom and a shoe mount with removable shoe adapter are included to mount onto any standard shoe mount. A power adapter is included to charge the battery.
Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
Transmit your SDI video over an NDI IP network with the Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power from Kiloview. The portable unit inputs SDI video up to 1080p60 and outputs the signal over Wi-Fi, or by Ethernet using the included USB expansion adapter, for use in your streaming NDI video workflow. It supports NDI|HX/RTMP/RTSP/SRT/HLS/TS over UDP streaming media protocols and H.264/AVC/MJPEG compression, allowing it to work with a variety of platforms with very-low latency.
The N1 features a TF/microSD card slot to record video while you are streaming, or it can be configured to record to a NAS over a LAN. Recording formats include TS, MP4, MKV, AVI, and MOV, and it encodes embedded audio in AAC or G.711 format. It can be controlled and configured using an Android app, via a web GUI, or by using an IMS remote management application. A second USB port also allows you to control the unit via serial control using a separately available USB to serial adapter, or to use the included USB tally light.
The unit is powered using its internal 6800mAh battery, so you can avoid cabling while it's in use. There are two mounting threads on the bottom and a shoe mount with removable shoe adapter are included to mount onto any standard shoe mount. A power adapter is included to charge the battery.
| Video Input Connectors | 1 x BNC (3G-SDI) Female |
| Input Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 24/25/29.97/30/50/59.94/60 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | SDI |
| Video Output Connectors | 1 x RJ45 (NDI / HX) Female |
| Output Video Format | Wireless / RJ45 / USB Type-A 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 24/25/29.97/30/50/59.94/60 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | RJ45 Wireless |
| HDR Compatibility | Not Specified by Manufacturer |
| Latency | SDI Input: 150 ms |
| Other I/O | 2 x USB Type-A Control, LAN Input/Output |
| Expansion Slots | None |
| Video IP Encoding | H.264, MJPEG, MP4, NDI: 1280 x 720 to 1920 x 1080 at 60p |
| Audio IP Encoding | AAC, G.711 |
| Memory Card Slots | 1 x microSD (Unspecified Type) |
| Wi-Fi Support | Yes |
| OS Compatibility | Android |
| Built-In Battery | 6800 mAh |
| Power Connector | 1 x Barrel (12 VDC at 1 A) Input |
| Power Consumption | Device: 3.7 VDC (6.5 W) |
| Operating Temperature | -4 to 113°F / -20 to 45°C |
| Dimensions | 4.5 x 3 x 1.4" / 115 x 75 x 35 mm |
| Weight | 13.4 oz / 380 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 0.75Kg |
| Box Dimensions (LxWxH) | 20.83cm x 15.75cm x 8.38cm |
In The Box
- 1 x Kiloview Portable SDI to NDI|HX Encoder with Wi-Fi & Battery Power
- 1 x Power Adapter
- 1 x DC Cable
- 2 x Wi-Fi Antenna
- 1 x USB to RJ45 Converter
- 1 x USB Tally
- 1 x Shoe Mount
- 1 x Shoe Adapter
- 1 x Limited 1-Year Warranty
