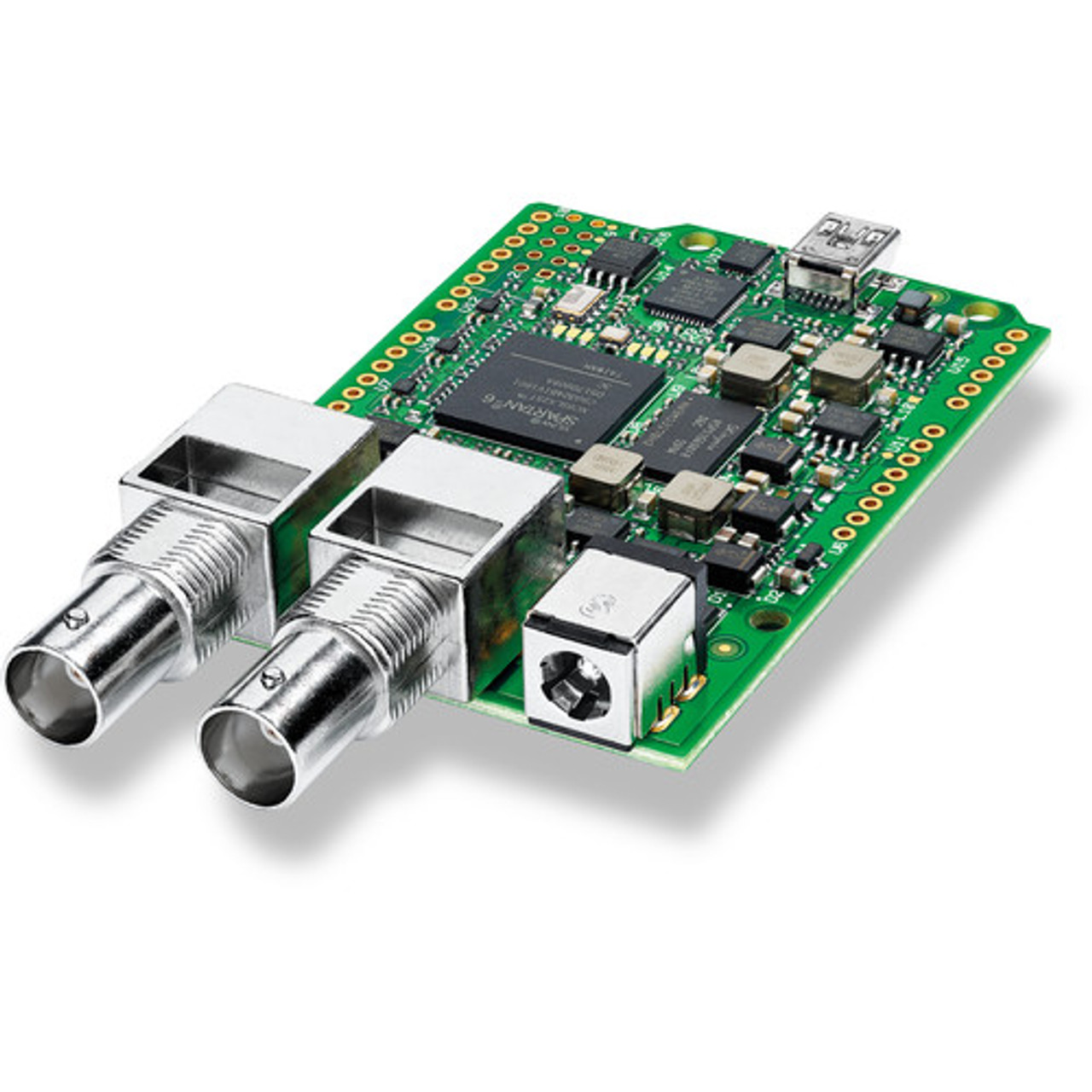

Blackmagic Design 3G-SDI Arduino Shield. Create a custom camera control solution with the 3G-SDI Arduino Shield from Blackmagic Design. Working in conjunction with a separately available Arduino controller, the Shield embeds an SDI control signal in the Program return feed that will operate compatible cameras, such as the Blackmagic Studio Camera or URSA Mini with the Studio Camera firmware update.

These are the same controls output via an ATEM series switcher.This open communication protocol takes advantage of blanking space in the SDI data stream to add talkback, tally, and other camera control information directly to the camera via the program return feed. Because of its open nature, you can create custom solutions that are compatible with switchers, cameras, and other supporting hardwareThe following controls are supported via SDI (Note: Availability may depend on camera and lens configuration): Tally Gain Detail Shutter Zoom Focus Iris Pedestal Color Balance Contrast Hue Saturation An Arduino is a controller - basically a simple computer - that can be embedded in other devices to create custom solutions.

• Programmable Camera Controller
• Open-Source Arduino Platform
• Control Camera Over SDI Program Return
• Compatible with BMD Studio Cameras
• Adjust Gain, Detail, Shutter, Zoom
• Adjust Focus, Iris, Pedestal
• Color Corrector
• Program Using Arduino IDE
• Requires Arduino Controller
• Works with Other I2C BUS Controllers
