• Compact Quad HDMI Docking Station
• Converts Ninja Monitors Into Switch
• 4 HDMI Inputs, Source Select Buttons
• Graphic Overlays, PiP, Streaming Output
• Mixed Resolution Output up to 1080p60
• Convert Progressive & Interlaced
• Mirror, Program, Preview, 4-Up Display
• UVC/Live Streaming with AtomX Connect
• Can Also Select with Monitor Touchscreen
• Output to Recording Device Supported

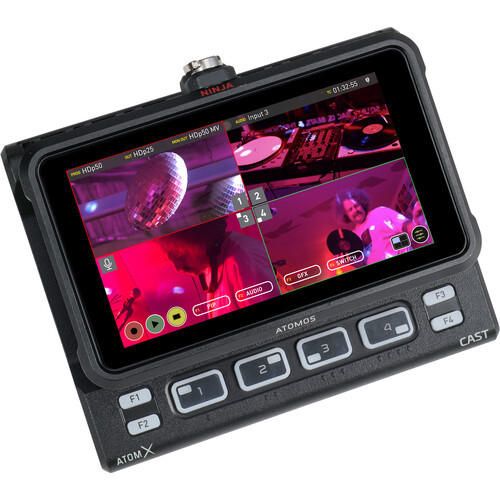

Convert your Ninja, Ninja Ultra, Ninja V, or Ninja V+ 5" monitor into a full multicamera broadcast studio switcher with the AtomX CAST from Atomos. The AtomX CAST takes its name from "broadcast", and it allows you to switch up to four HDMI video sources and output it to a variety of destinations such as an external monitor, a recorder, a separate switcher, or to a live streaming computer. Applications include corporate, house of worship, event, family, or studio production environments.
The CAST is specially designed to mount onto the back of the Ninja V/V+ monitor, and it provides four HDMI inputs that support a mix of different resolutions up to 1080p60. The touchscreen monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output. You can select the source for monitor/output using the four source buttons, and you can also select the source using the monitor touchscreen. There are also four programmable function buttons to perform specific shortcuts.
