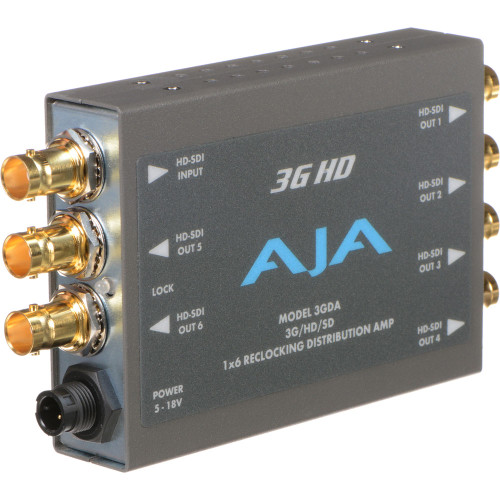

AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
SKU:
3GDA-R0
Availability:
Call for Availability
(No reviews yet)
Write a Review
Write a Review
AJA
AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
$1,130.00
Inc. GST
$982.61
Ex. GST
AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier. Split one SDI signal into six with the AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier. Useful in studios and digital signage applications, this unit features an auto-sensing input and six separately buffered outputs with cable equalization and reclocking, for a clean signal over long cable runs.
Both input and outputs support embedded audio. A universal locking power supply comes included..
- Auto-Sensing Input
- Six Separately Buffered Outputs
- Reclocking & Equalization
- Universal Power Supply Included
AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
Split one SDI signal into six with the AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier. Useful in studios and digital signage applications, this unit features an auto-sensing input and six separately buffered outputs with cable equalization and reclocking, for a clean signal over long cable runs. Both input and outputs support embedded audio. A universal locking power supply comes included.| Input | 1 x BNC (3G-SDI) |
| Output | 6 x BNC (12G-SDI) |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B |
| Reclocking | Yes |
| Max Transmission Distance | 1148' / 350 m |
| Power Consumption | 5 to 20 VDC (3 W) |
| Dimensions | 5.8 x 3.1 x 1.0" / 14.7 x 7.9 x 2.5 cm |
| Weight | 0.7 lb / 0.3 kg |
| Package Weight | 0.70Kg |
| Box Dimensions (LxWxH) | 18.67cm x 14.86cm x 10.54cm |
In The Box
- 1 x AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
- 1 x AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- 1 x Limited 5-Year Warranty
AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
Split one SDI signal into six with the AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier. Useful in studios and digital signage applications, this unit features an auto-sensing input and six separately buffered outputs with cable equalization and reclocking, for a clean signal over long cable runs. Both input and outputs support embedded audio. A universal locking power supply comes included.| Input | 1 x BNC (3G-SDI) |
| Output | 6 x BNC (12G-SDI) |
| Video Standard Compliance | SMPTE 259M/292M/296M/424M-B |
| Reclocking | Yes |
| Max Transmission Distance | 1148' / 350 m |
| Power Consumption | 5 to 20 VDC (3 W) |
| Dimensions | 5.8 x 3.1 x 1.0" / 14.7 x 7.9 x 2.5 cm |
| Weight | 0.7 lb / 0.3 kg |
| Package Weight | 0.70Kg |
| Box Dimensions (LxWxH) | 18.67cm x 14.86cm x 10.54cm |
In The Box
- 1 x AJA 3GDA 3G-SDI 1x6 Reclocking Distribution Amplifier
- 1 x AJA DWP-U-R1 Worldwide Power Supply for AJA Mini-Converters
- 1 x Limited 5-Year Warranty
