xMac mini (2024+) 2U Rackmount System with Echo III Module

xMac mini (2024+) 2U Rackmount System with Echo III Module

SKU:

XMM-SYS-III

Enquire for ETA

star star star star star (No reviews yet) Write a Review

Write a Review

xMac mini (2024+) 2U Rackmount System with Echo III Module
Sonnet
xMac mini (2024+) 2U Rackmount System with Echo III Module

MSRP:
Sale Price
Now: $5,384.00
Inc. GST
MSRP:
Now: $4,681.74
Ex. GST
(You save )

Adding to cart… The item has been added

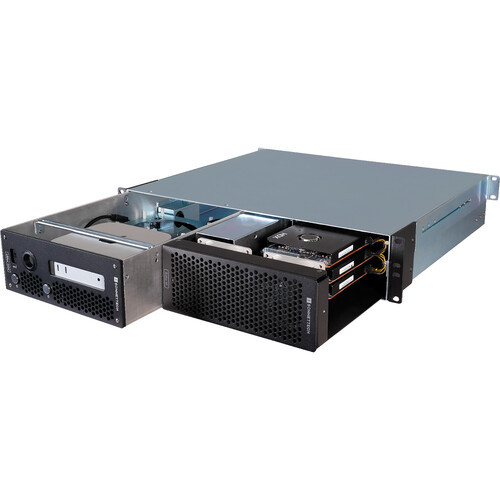

Boost your workflow with this preconfigured Pro Modular 2U Rackmount Enclosure, which includes Sonnet xMac mini (2024+) and Echo III Expansion Modules to install up to two Mac mini computers and three PCIe Gen3 expansion slots.

The xMac mini (2024+) powers your Mac mini systems with front-facing power buttons. Cut-out slots provide easy access to the front mounted Mac mini ports while a cable passthrough allows you to connect devices to the rear ports. A dedicated USB-C passthrough port links to a rear-mounted Mac mini. Rear ports may be accessed through the back of module. The space underneath the computers has room for up to two separately purchased external SSDs. The Echo III module allows you to install up to three separately available non-GPU expansion cards that can be linked to your Mac mini through either of its two 40 Gb/s compatible Thunderbolt 3 ports. A 400W power supply is preinstalled alongside two Noctua fans that provide efficient cooling. Extension rails for 16" to 24" deep racks, a Thunderbolt 3 cable, and a ThunderLok 3 retainer clip are also included.

Key Features
  • Fits Up to 2 Mac minis (2024 or Later)
  • 2 x Thunderbolt 3 Ports
  • 1 x PCIe 3.0 x16 Slot
  • 2 x PCIe 3.0 x8 Slot
  • Supports Non-GPU PCIe Cards
  • 400W Power Supply
  • Dual Noctua Quiet Fans
  • Front Panel Port & Cable Passthrough
  • Front-Facing Mac mini Power Buttons
  • SSD Storage Space
  • Description
  • 0 Reviews

Boost your workflow with this preconfigured Pro Modular 2U Rackmount Enclosure, which includes Sonnet xMac mini (2024+) and Echo III Expansion Modules to install up to two Mac mini computers and three PCIe Gen3 expansion slots.

The xMac mini (2024+) powers your Mac mini systems with front-facing power buttons. Cut-out slots provide easy access to the front mounted Mac mini ports while a cable passthrough allows you to connect devices to the rear ports. A dedicated USB-C passthrough port links to a rear-mounted Mac mini. Rear ports may be accessed through the back of module. The space underneath the computers has room for up to two separately purchased external SSDs. The Echo III module allows you to install up to three separately available non-GPU expansion cards that can be linked to your Mac mini through either of its two 40 Gb/s compatible Thunderbolt 3 ports. A 400W power supply is preinstalled alongside two Noctua fans that provide efficient cooling. Extension rails for 16" to 24" deep racks, a Thunderbolt 3 cable, and a ThunderLok 3 retainer clip are also included.

Key Features
  • Fits Up to 2 Mac minis (2024 or Later)
  • 2 x Thunderbolt 3 Ports
  • 1 x PCIe 3.0 x16 Slot
  • 2 x PCIe 3.0 x8 Slot
  • Supports Non-GPU PCIe Cards
  • 400W Power Supply
  • Dual Noctua Quiet Fans
  • Front Panel Port & Cable Passthrough
  • Front-Facing Mac mini Power Buttons
  • SSD Storage Space
