Wooden Camera UVF Mount LCD Kit
Wooden Camera UVF Mount LCD Kit
SKU:
170100
Availability:
Enquire for ETA
$1,030.00
Inc. GST
$895.65
Ex. GST
Wooden Camera UVF Mount LCD Kit. The UVF Mount LCD Kit from Wooden Camera enables you to attach a larger LCD monitor to your camera while keeping it horizontally level. The kit consists of a mounting bracket, UVF v2 sled, NATO rail with 15mm rod, and 15mm tube clamp.
Together, the kit provides three points of adjustment; the 15mm rod clamp adjusts tilt and distance to the camera, the red NATO thumbscrew lets you adjust horizontal position on the NATO rail, and the tension thumbscrew adjusts tilt of the monitor. The monitor kit features a tool-less design for quick installation and removal of your monitor. The 15mm tube clamp portion attaches to two 1/4-20 screw holes spaced between 25mm and 36mm (center to center) and holds the 4" NATO rail via the NATO rail's integrated 15mm rod.
- Mounts & Adjusts Monitor On Camera Rig
- Keeps Monitor Horizontally Level
- Monitor Mounting Bracket
- 4" NATO Rail with 15mm Rod
- Three Points of Adjustment
- Tool-Less Design
- 1/4"-20 Threaded and Pass Through Holes
- Safety Pin Prevents Accidental Removal
- 2x 1/4"-20 Screws Included
Wooden Camera UVF Mount LCD Kit
The UVF Mount LCD Kit from Wooden Camera enables you to attach a larger LCD monitor to your camera while keeping it horizontally level. The kit consists of a mounting bracket, UVF v2 sled, NATO rail with 15mm rod, and 15mm tube clamp. Together, the kit provides three points of adjustment; the 15mm rod clamp adjusts tilt and distance to the camera, the red NATO thumbscrew lets you adjust horizontal position on the NATO rail, and the tension thumbscrew adjusts tilt of the monitor.The monitor kit features a tool-less design for quick installation and removal of your monitor. The 15mm tube clamp portion attaches to two 1/4-20 screw holes spaced between 25mm and 36mm (center to center) and holds the 4" NATO rail via the NATO rail's integrated 15mm rod. The mounting bracket then attaches to the NATO rail using the UVF v2 sled. UVF v2 Sled can also attach directly to any NATO-style rail.
The pass through holes and slots on the mounting bracket accommodate monitors with 1/4"-20 holes on top or bottom. A small spacer piece is included for the monitors with video connection ports and controls on the bottom. A safety pin at the end of the rail will prevent the viewfinder mounting bracket from accidentally removing.
| NATO Rail Length | 4" (10 cm) |
| Package Weight | 0.33Kg |
| Box Dimensions (LxWxH) | 21.08cm x 14.99cm x 4.57cm |

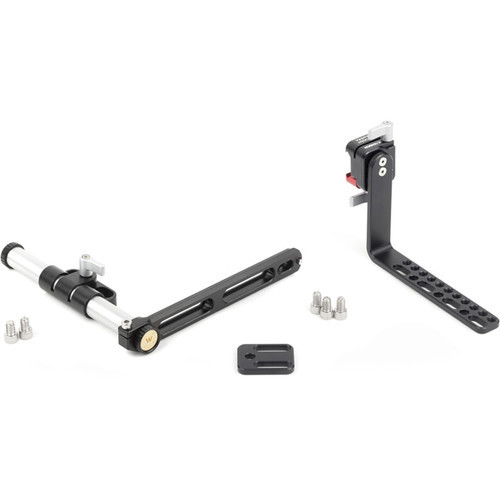

In The Box
- 1 x Wooden Camera UVF Mount LCD Kit
- 1 x LCD Mounting Bracket
- 1 x Spacer for LCD Mounting Bracket
- 1 x UVF v2 Sled
- 1 x 4" NATO Rail with 15mm Rod
- 1 x 15mm Tube Clamp
- 2 x 1/4"-20 x 3/8" Socket Cap Screw
- 2 x #6-32 Socket Flat Head Screw
- 1 x Limited 1-Year Warranty
Wooden Camera UVF Mount LCD Kit
The UVF Mount LCD Kit from Wooden Camera enables you to attach a larger LCD monitor to your camera while keeping it horizontally level. The kit consists of a mounting bracket, UVF v2 sled, NATO rail with 15mm rod, and 15mm tube clamp. Together, the kit provides three points of adjustment; the 15mm rod clamp adjusts tilt and distance to the camera, the red NATO thumbscrew lets you adjust horizontal position on the NATO rail, and the tension thumbscrew adjusts tilt of the monitor.The monitor kit features a tool-less design for quick installation and removal of your monitor. The 15mm tube clamp portion attaches to two 1/4-20 screw holes spaced between 25mm and 36mm (center to center) and holds the 4" NATO rail via the NATO rail's integrated 15mm rod. The mounting bracket then attaches to the NATO rail using the UVF v2 sled. UVF v2 Sled can also attach directly to any NATO-style rail.
The pass through holes and slots on the mounting bracket accommodate monitors with 1/4"-20 holes on top or bottom. A small spacer piece is included for the monitors with video connection ports and controls on the bottom. A safety pin at the end of the rail will prevent the viewfinder mounting bracket from accidentally removing.
| NATO Rail Length | 4" (10 cm) |
| Package Weight | 0.33Kg |
| Box Dimensions (LxWxH) | 21.08cm x 14.99cm x 4.57cm |
In The Box
- 1 x Wooden Camera UVF Mount LCD Kit
- 1 x LCD Mounting Bracket
- 1 x Spacer for LCD Mounting Bracket
- 1 x UVF v2 Sled
- 1 x 4" NATO Rail with 15mm Rod
- 1 x 15mm Tube Clamp
- 2 x 1/4"-20 x 3/8" Socket Cap Screw
- 2 x #6-32 Socket Flat Head Screw
- 1 x Limited 1-Year Warranty
