Wooden Camera Unified DSLR Cage with Wood Grip (Large)
Wooden Camera Unified DSLR Cage with Wood Grip (Large)
SKU:
243900
Availability:
Enquire for ETA
Write a Review
Wooden Camera
Wooden Camera Unified DSLR Cage with Wood Grip (Large)

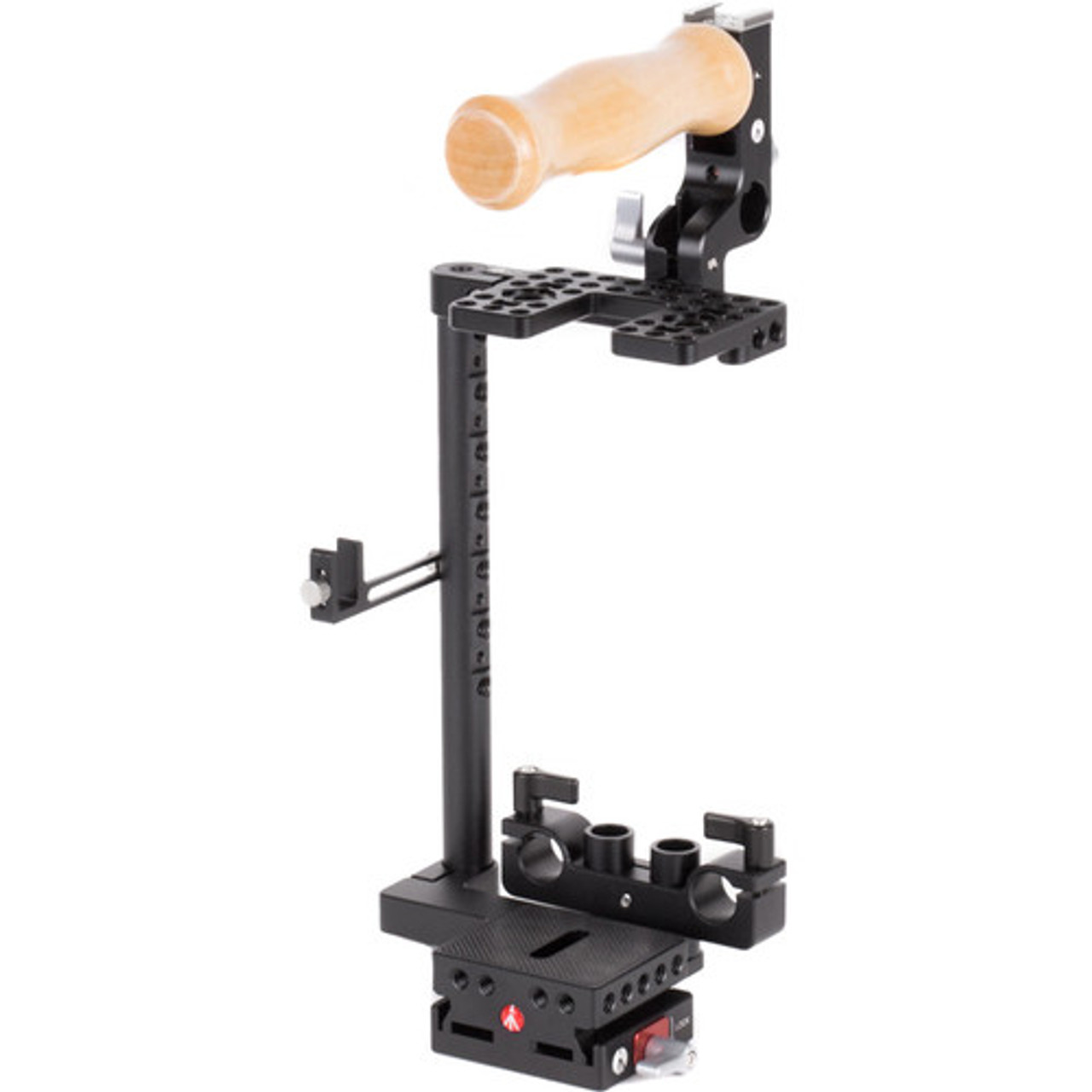

Wooden Camera Unified DSLR Cage with Wood Grip (Large). Build up your DSLR camera for professional video and cinema production with Wooden Camera's large Unified DSLR Cage with Wood Grip. The cage itself surrounds your camera on three sides, adding a measure of protection to larger DSLR cameras like Canon's 1D series or Nikon's D3, D4, and D5 bodies.
The Unified Cage also fits smaller DSLR or mirrorless cameras with an installed battery grip.Both 1/4"-20 and 3/8"-16 threaded holes line the top and sides of the cage for securing accessories such as articulating arms. The top of the cage leaves the space above the camera's accessory shoe unobstructed for mounting audio accessories such as XLR adapters.
- For Large DSLR Camera Bodies
- Leaves Camera Grip Open
- Wood-Grip Handle with 15mm Rod Clamp
- Adjustable Dual 15mm LWS Rod Clamp
- Built-In HDMI Cable Clamp
- Lens Adapter Support
- Leaves Accessory Shoe Unobstructed
- Handle Folds for Storage
Wooden Camera Unified DSLR Cage with Wood Grip (Large)
Build up your DSLR camera for professional video and cinema production with Wooden Camera's large Unified DSLR Cage with Wood Grip. The cage itself surrounds your camera on three sides, adding a measure of protection to larger DSLR cameras like Canon's 1D series or Nikon's D3, D4, and D5 bodies. The Unified Cage also fits smaller DSLR or mirrorless cameras with an installed battery grip.Both 1/4"-20 and 3/8"-16 threaded holes line the top and sides of the cage for securing accessories such as articulating arms. The top of the cage leaves the space above the camera's accessory shoe unobstructed for mounting audio accessories such as XLR adapters. A height-adjustable, dual-rod clamp enables you to mount 15mm rods for supporting accessories like matte boxes and follow focus units.
An HDMI cable clamp on the cage's vertical post protects the camera's HDMI port from cable snags. The kit also includes all necessary mounting screws and an articulating wood-grip top handle.
- DSLR cameras 5" or taller
Canon 1D Mk IV, 1D Mk III, 1D X Mk II, 1D X, 1D C
Nikon D850, D810, D800, D5, D4S, D4, D3X
DSLR cameras with an installed battery grip such as the Sony Alpha series or Fujifilm X-H1 - The reversible top handle has a wood grip which provides additional ways to comfortably handhold your camera. A cold shoe at the top can be used to mount a microphone, monitor, or other camera-top accessory. The handle folds for travel and can be alternately secured onto the left vertical rod for a secondary grip.
- 15mm LWS rods can be secured using the integrated rod clamp. The rod height is adjustable to ensure correct optical axis placement for matte boxes and follow focuses.
| Support Type | Cage, Handheld Support |
| Grip Type | Topside Handgrip |
| Camera Compatibility | Canon EOS 1D C, Canon EOS 1D Mark II, Canon EOS 1D Mark IV, Canon EOS 1D X, Nikon D4, Nikon D800, Nikon D810, Nikon D850 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 1 x 7.6" / 19.4 cm Rod |
| Accessory Mounting | Top Handle, Front: 2 x 1/4"-20 Thread, 1 x 3/8"-16 Thread Cage, Top: 32 x 1/4"-20 Thread, x ARRI Anti-Twist 3/8"-16 Thread Cage, Side: 6 x 1/4"-20 Thread |
| Camera Mounting | 1/4"-20 Screw |
| Tripod Mounting | Cage: Manfrotto 200PL |
| Rod Ports | 3 x 15 mm Rod Port |
| Shoe Mounting | Top Handle, Top: 1 x Cold Shoe |
| Rosettes | None |
| Dimensions | 11.5 x 6 x 4.5" / 29.2 x 15.2 x 11.4 cm |
| Weight | 1.3 lb / 590 g |
| Package Weight | 0.54Kg |
| Box Dimensions (LxWxH) | 25.15cm x 18.92cm x 6.86cm |
In The Box
- 1 x Wooden Camera Unified DSLR Cage with Wood Grip (Large)
- 1 x Wooden Camera Wooden Top Handle Grip for Unified DSLR Cage
- 2 x Wooden Camera Low-Profile Screw (1/4''-20)
- 1 x Limited 1-Year Warranty
Wooden Camera Unified DSLR Cage with Wood Grip (Large)
Build up your DSLR camera for professional video and cinema production with Wooden Camera's large Unified DSLR Cage with Wood Grip. The cage itself surrounds your camera on three sides, adding a measure of protection to larger DSLR cameras like Canon's 1D series or Nikon's D3, D4, and D5 bodies. The Unified Cage also fits smaller DSLR or mirrorless cameras with an installed battery grip.Both 1/4"-20 and 3/8"-16 threaded holes line the top and sides of the cage for securing accessories such as articulating arms. The top of the cage leaves the space above the camera's accessory shoe unobstructed for mounting audio accessories such as XLR adapters. A height-adjustable, dual-rod clamp enables you to mount 15mm rods for supporting accessories like matte boxes and follow focus units.
An HDMI cable clamp on the cage's vertical post protects the camera's HDMI port from cable snags. The kit also includes all necessary mounting screws and an articulating wood-grip top handle.
- DSLR cameras 5" or taller
Canon 1D Mk IV, 1D Mk III, 1D X Mk II, 1D X, 1D C
Nikon D850, D810, D800, D5, D4S, D4, D3X
DSLR cameras with an installed battery grip such as the Sony Alpha series or Fujifilm X-H1 - The reversible top handle has a wood grip which provides additional ways to comfortably handhold your camera. A cold shoe at the top can be used to mount a microphone, monitor, or other camera-top accessory. The handle folds for travel and can be alternately secured onto the left vertical rod for a secondary grip.
- 15mm LWS rods can be secured using the integrated rod clamp. The rod height is adjustable to ensure correct optical axis placement for matte boxes and follow focuses.
| Support Type | Cage, Handheld Support |
| Grip Type | Topside Handgrip |
| Camera Compatibility | Canon EOS 1D C, Canon EOS 1D Mark II, Canon EOS 1D Mark IV, Canon EOS 1D X, Nikon D4, Nikon D800, Nikon D810, Nikon D850 |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 1 x 7.6" / 19.4 cm Rod |
| Accessory Mounting | Top Handle, Front: 2 x 1/4"-20 Thread, 1 x 3/8"-16 Thread Cage, Top: 32 x 1/4"-20 Thread, x ARRI Anti-Twist 3/8"-16 Thread Cage, Side: 6 x 1/4"-20 Thread |
| Camera Mounting | 1/4"-20 Screw |
| Tripod Mounting | Cage: Manfrotto 200PL |
| Rod Ports | 3 x 15 mm Rod Port |
| Shoe Mounting | Top Handle, Top: 1 x Cold Shoe |
| Rosettes | None |
| Dimensions | 11.5 x 6 x 4.5" / 29.2 x 15.2 x 11.4 cm |
| Weight | 1.3 lb / 590 g |
| Package Weight | 0.54Kg |
| Box Dimensions (LxWxH) | 25.15cm x 18.92cm x 6.86cm |
In The Box
- 1 x Wooden Camera Unified DSLR Cage with Wood Grip (Large)
- 1 x Wooden Camera Wooden Top Handle Grip for Unified DSLR Cage
- 2 x Wooden Camera Low-Profile Screw (1/4''-20)
- 1 x Limited 1-Year Warranty
