Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Advanced)
Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Advanced)
SKU:
225800
Availability:
Enquire for ETA
Write a Review
Wooden Camera

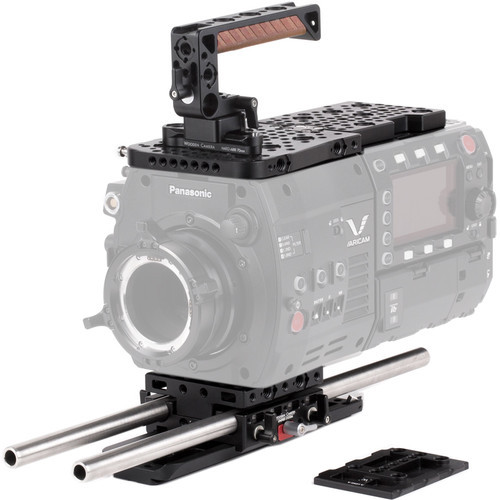

Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Advanced)
The Wooden Camera Top Plate is for use with the front camera module of the Panasonic VariCam 35 brain unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent).The Wooden Camera Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit.
It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent).
Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Advanced)
The Wooden Camera Top Plate is for use with the front camera module of the Panasonic VariCam 35 brain unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent).The Wooden Camera Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together.The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.
The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.
The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.
The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.
The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
Key Features
- Supports 15mm LWS rods at the correct lens height
- Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
- Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
- Two quick release options—remove Core Unit or remove Dovetail Camera Plate
- Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
- Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
- Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
- Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
- Anti-twist, non-slip rubber surface
- Upgradable for VCT-14 compatible mounting options
- Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
- Backward compatible with original Wooden Camera Quick Dovetail
NATO Quick Release
The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.Rosette Based Rotating Grip
The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.Sideways 15mm Rod Clamp
The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.Front/Rear Rod Openings
A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.Integrated Cold Shoe
A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.Accessory Threads
1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.Optional Front Rod Clamp
Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.| For Use with | Panasonic VariCam 35 brain unit |
| Dimensions | 5.4 x 5.1 x 0.6" (13.7 x 13.0 x 1.5 cm) |
| Weight | 10.0 oz (283.5 g) |
| For Use with | Panasonic VariCam 35 recorder unit |
| Dimensions | 4.8 x 3.6 x 0.6" (12.2 x 9.1 x 1.5 cm) |
| Weight | 9.0 oz (255.1 g) |
| Box Dimensions (LxWxH) | 17.78cm x 10.16cm x 3.81cm |
| Dimensions | 2 x 6 x 6" (5 x 15 x 15 cm) |
| Weight | 1.1 lb (0.5 kg) |
| Package Weight | 0.51Kg |
| Box Dimensions (LxWxH) | 5.1 x 4.85 x 2.15" |
| Rod Size | 15 mm |
| Rod Length | 12" (30.5 cm) |
| Package Weight | 0.34 lb |
| Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" |
| NATO Rail Length | 3.9" / 100 mm |
| Rail Mounting Distance | Up to 2.8" / 72 mm apart |
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 6 x 4.7 x 1.2" |
| Dimensions | 8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm |
| Weight | 0.6 lb / 0.3 kg |
| Package Weight | 0.635 lb |
| Box Dimensions (LxWxH) | 9 x 2.8 x 0.65" |
In The Box
- 1 x Wooden Camera Top Plate for Panasonic VariCam 35 Brain Unit (Front)
- 1 x Wooden Camera Top Plate for Panasonic VariCam 35 Recorder Unit (Back)
- 1 x Wooden Camera Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35
- 2 x Wooden Camera 15mm Support Rod (12")
- 1 x Wooden Camera NATO Handle Kit (Plus, 100mm Rail)
- 1 x Wooden Camera Safety Dovetail Plate (8")
Wooden Camera Panasonic VariCam 35 Unified Accessory Kit (Advanced)
The Wooden Camera Top Plate is for use with the front camera module of the Panasonic VariCam 35 brain unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent).The Wooden Camera Top Plate is for use with the rear camera module of the Panasonic VariCam 35 recorder unit. It features arrays of 1/4"-20 holes in standard spacing and multiple 3/8"-16 holes for large accessories. The ARRI accessory mount is also available in several places (3/8"-16 screw hole with locating pins adjacent). The included link piece can be installed to bind the front and back plates together.The Wooden Camera Unified Baseplate supports 15mm LWS rods at the correct lens height, and offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit. This Kit allows you to support different lens adapters from Wooden Camera, Metabones, and other brands.
The Baseplate includes the Core Unit, a Lower Quick Dovetail tripod plate on the bottom, and a Dovetail Camera Plate for the Sony FS5 and Panasonic EVA-1, VariCam LT, and VariCam 35. Other Unified Baseplate Dovetail Plates are also supported, allowing for quick swaps with a variety of cameras.
The Baseplate provides two quick release options. You can remove the Dovetail Camera Plate only and leave the Core Unit with your rod pair behind, or you can remove the Core Unit from the Lower Quick Dovetail, in which case you'll have a dovetail on the bottom of the Core Unit that's compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig.
The Dovetail Camera Plate features a long slot along its center that lets you secure it to the camera with multiple screws (included), which can be set up to 2.8" (70mm) apart. It also has a non-slip rubber surface that will prevent the camera from twisting.
The Dovetail Camera Plate has an ARCA Swiss standard dovetail compatible with many third-party products. It also has threaded 1/4"-20 threaded holes on the bottom for attaching to gimbals or other compatible tripod plates. The Lower Quick Dovetail has 1/4"-20 and 3/8"-16 threaded holes for attaching to tripod plates or ARRI standard bridgeplates, such as the Wooden Camera Unified Bridgeplates.
The Unified Baseplate can also be upgraded for VCT-14 compatible mounting options. Simply attach it to the optional Unified VCT Wedge Plate, which can then be mounted on the Unified VCT-14 Tripod Plate, also sold separately. The Unified Baseplate is backward compatible with Wooden Camera's original Quick Dovetails (Standard, DSLR, and Large).This is a single, 12" long 15mm Support Rod from Wooden Camera for mounting accessories. It is chamfered at each end to ease sliding accessories on and off, and has a hollow interior providing for maximum strength.This Wooden Camera NATO Handle Kit, consisting of a quick release top handle and 3.9" / 100mm NATO rail, offers a variety of mounting points for attaching viewfinders, focus motors, lights, shock mounts, and other accessories.
The handle features a sideways 15mm rod port, 15mm rod opening in front, 19mm rod opening in the rear, shoe mount, and 1/4"-20 and 3/8"-16 mounting threads all around. The sideways 15mm rod port is ideal for attaching Wooden Camera's UVF Mount or other viewfinder mounts. Two 1/4"-20 socket screws are included for binding rods in the front and rear rod openings.
The NATO rail can be attached to any two 1/4"-20 threads positioned up to 72mm apart, such as on a cage or select cameras. The handle conveniently slides on and off and secures in place by a lever. A rotating knob on top allows the handle to be adjusted sideways or reversed to the rear by a rosette-like mechanism.The 8" Safety Dovetail Plate from Wooden Camera is an ARRI standard dovetail with a stopper screw on one end and a safety latch on the other to prevent accidental camera detachment. It features threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment. The dovetail can be attached to a shoulder pad for custom handheld configurations.
Key Features
- Supports 15mm LWS rods at the correct lens height
- Offers a vertical 15mm rod port for incorporating the optional Unified Lens Adapter Kit (for lens adapter support)
- Includes the Core Unit, Lower Quick Dovetail tripod plate, and Dovetail Camera Plate
- Two quick release options—remove Core Unit or remove Dovetail Camera Plate
- Core Unit features a dovetail on the bottom, compatible with any 2060 Dovetail, Safety Dovetail, or Shoulder Rig
- Dovetail Camera Plate features an ARCA Swiss standard dovetail and threaded holes for attaching to gimbals or other compatible tripods plates
- Lower Quick Dovetail offers threaded holes for attaching to tripod plates or ARRI standard bridgeplates
- Long slot along the center allows multiple screws to be attached to the camera, set up to 2.8" (70mm) apart
- Anti-twist, non-slip rubber surface
- Upgradable for VCT-14 compatible mounting options
- Additional Lower Quick Dovetail and Dovetail Camera Plates can be purchased for quick swap capability
- Backward compatible with original Wooden Camera Quick Dovetail
NATO Quick Release
The handle features an integrated NATO rail clamp that lets you slide onto any NATO compatible rail, not just the included one.Rosette Based Rotating Grip
The handle position can be adjusted by loosening the top screw, rotating it into the desired position, and then re-tightening the top screw. This gives you a level of versatility you typically don't find in top handles.Sideways 15mm Rod Clamp
The side rod opening lets you attach a 15mm rod perpendicular to your camera, great for attaching an optional monitor/EVF support bracket such as Wooden Camera's UVF Mount v2. A thumbscrew secures the rod in place.Front/Rear Rod Openings
A forward facing 15mm rod opening and 19mm rear rod opening are available for attaching optional single rods, which can be used for mounting accessories such as focus motors. A pair of 1/4"-20 set screws are included to secure the rods in place via the threaded holes along the sides of the grip area.Integrated Cold Shoe
A cold shoe built into the top of the handle lets you add on-camera lights, microphone shock mounts, or other shoe mount accessories.Accessory Threads
1/4"-20 and 3/8"-16 threaded holes along the grip area of the handle are provided for attaching additional accessories.Optional Front Rod Clamp
Two 1/4"-20 thread holes on the front of the handle let you attach an optional 15mm or 19mm rod clamp to the base of the handle.| For Use with | Panasonic VariCam 35 brain unit |
| Dimensions | 5.4 x 5.1 x 0.6" (13.7 x 13.0 x 1.5 cm) |
| Weight | 10.0 oz (283.5 g) |
| For Use with | Panasonic VariCam 35 recorder unit |
| Dimensions | 4.8 x 3.6 x 0.6" (12.2 x 9.1 x 1.5 cm) |
| Weight | 9.0 oz (255.1 g) |
| Box Dimensions (LxWxH) | 17.78cm x 10.16cm x 3.81cm |
| Dimensions | 2 x 6 x 6" (5 x 15 x 15 cm) |
| Weight | 1.1 lb (0.5 kg) |
| Package Weight | 0.51Kg |
| Box Dimensions (LxWxH) | 5.1 x 4.85 x 2.15" |
| Rod Size | 15 mm |
| Rod Length | 12" (30.5 cm) |
| Package Weight | 0.34 lb |
| Box Dimensions (LxWxH) | 12.05 x 1.35 x 0.6" |
| NATO Rail Length | 3.9" / 100 mm |
| Rail Mounting Distance | Up to 2.8" / 72 mm apart |
| Package Weight | 0.6 lb |
| Box Dimensions (LxWxH) | 6 x 4.7 x 1.2" |
| Dimensions | 8.0 x 2.7 x 0.5" / 20.3 x 6.8 x 1.3 cm |
| Weight | 0.6 lb / 0.3 kg |
| Package Weight | 0.635 lb |
| Box Dimensions (LxWxH) | 9 x 2.8 x 0.65" |
In The Box
- 1 x Wooden Camera Top Plate for Panasonic VariCam 35 Brain Unit (Front)
- 1 x Wooden Camera Top Plate for Panasonic VariCam 35 Recorder Unit (Back)
- 1 x Wooden Camera Unified Baseplate for FS5, EVA-1, VariCam LT, VariCam 35
- 2 x Wooden Camera 15mm Support Rod (12")
- 1 x Wooden Camera NATO Handle Kit (Plus, 100mm Rail)
- 1 x Wooden Camera Safety Dovetail Plate (8")
