Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
SKU:
200100
Availability:
Enquire for ETA
Write a Review
Wooden Camera
Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount

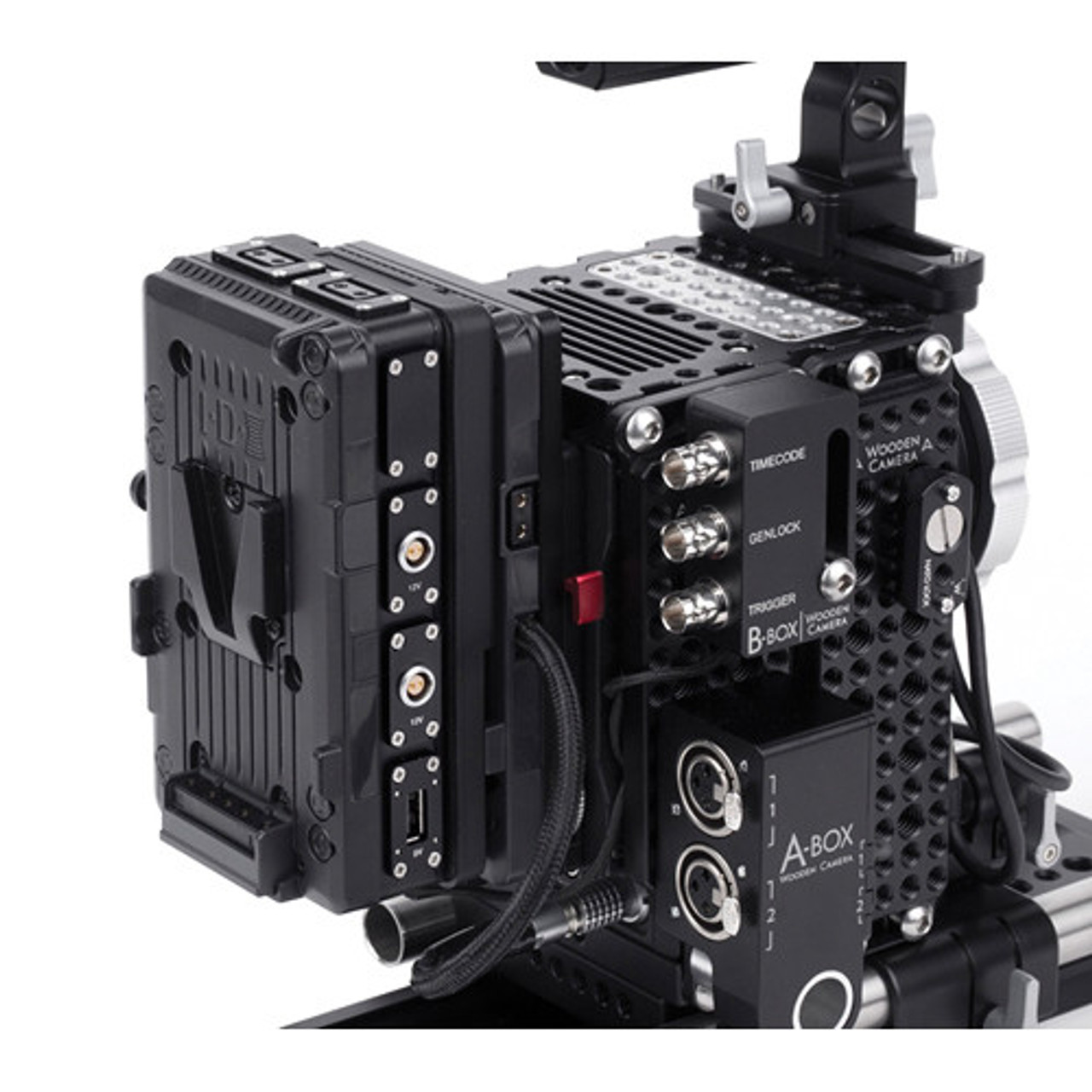

Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount. The D-Box 2-Pin LEMO-Compatible Kit with V-Mount Plates from Wooden Camera is a power distribution box for V-Mount batteries that features two 2-pin LEMO-compatible outputs, two D-tap outputs, and one USB output, as well as one blank port. All outputs are active simultaneously, supporting a maximum power draw of 10A that is limited by a fuse accessible on the left side panel.
This D-Box has a male V-Mount on one side, and a female V-Mount on the other side, allowing it to be powered from and fit between a V-Mount battery and camera mount. Power is passed internally to the output connectors as well as passed through to a camera, with battery data information is passed when present.
- V-Mount Battery Distribution Box
- Fits Between Battery & Camera Mount
- 2x 2-Pin LEMO-Compatbile Outputs
- 2x D-Tap Outputs
- 5V USB Output
- All Outputs Simultaneously Active
- Passes Power to Camera
- Additional D-Tap on Battery Plate
- Passes Battery Data
Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
The D-Box 2-Pin LEMO-Compatible Kit with V-Mount Plates from Wooden Camera is a power distribution box for V-Mount batteries that features two 2-pin LEMO-compatible outputs, two D-tap outputs, and one USB output, as well as one blank port. All outputs are active simultaneously, supporting a maximum power draw of 10A that is limited by a fuse accessible on the left side panel. This D-Box has a male V-Mount on one side, and a female V-Mount on the other side, allowing it to be powered from and fit between a V-Mount battery and camera mount. Power is passed internally to the output connectors as well as passed through to a camera, with battery data information is passed when present. For added connectivity, the male plate provides an additional D-Tap output.| Maximum Load | 10 A |
| Output Voltage | 12 to VDC (2-Pin LEMO) 12 to VDC (D-Tap) 5 to VDC (USB Type-A) |
| Plate Front / Battery Mount | V-Mount |
| Package Weight | 0.76Kg |
| Box Dimensions (LxWxH) | 22.35cm x 16.26cm x 10.92cm |
In The Box
- 1 x Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
- 1 x V-Mount Male Plate
- 1 x V-Mount Female Plate
- 1 x Limited 1-Year Warranty
Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
The D-Box 2-Pin LEMO-Compatible Kit with V-Mount Plates from Wooden Camera is a power distribution box for V-Mount batteries that features two 2-pin LEMO-compatible outputs, two D-tap outputs, and one USB output, as well as one blank port. All outputs are active simultaneously, supporting a maximum power draw of 10A that is limited by a fuse accessible on the left side panel. This D-Box has a male V-Mount on one side, and a female V-Mount on the other side, allowing it to be powered from and fit between a V-Mount battery and camera mount. Power is passed internally to the output connectors as well as passed through to a camera, with battery data information is passed when present. For added connectivity, the male plate provides an additional D-Tap output.| Maximum Load | 10 A |
| Output Voltage | 12 to VDC (2-Pin LEMO) 12 to VDC (D-Tap) 5 to VDC (USB Type-A) |
| Plate Front / Battery Mount | V-Mount |
| Package Weight | 0.76Kg |
| Box Dimensions (LxWxH) | 22.35cm x 16.26cm x 10.92cm |
In The Box
- 1 x Wooden Camera D-Box 2-Pin LEMO-Compatible Kit V-Mount
- 1 x V-Mount Male Plate
- 1 x V-Mount Female Plate
- 1 x Limited 1-Year Warranty
