Wooden Camera BMC Cage 19mm Rod-Clamp
Wooden Camera BMC Cage 19mm Rod-Clamp
SKU:
145800
Availability:
Enquire for ETA
$170.00
Inc. GST
$147.83
Ex. GST

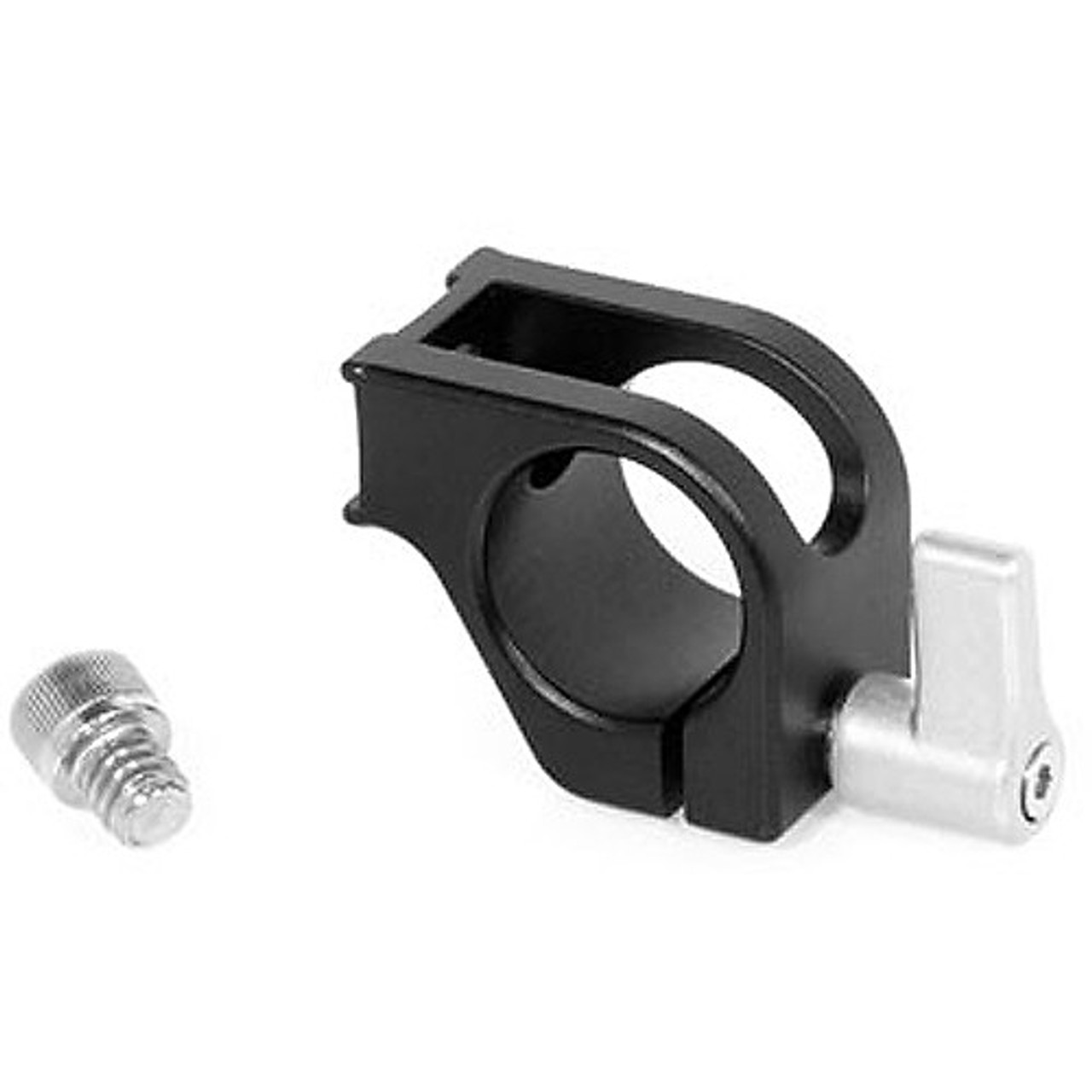

Wooden Camera BMC Cage 19mm Rod-Clamp. This BMC Cage 19mm Rod-Clamp from Wooden Camera is used to attach a single 19mm rod to any of the 1/4"-20 holes on the BMC (Blackmagic) Camera Cage. This versatile clamp can be positioned at several angles.
Once the Rod-Clamp is attached using the included 1/4"–long screw, insert a 19mm rod (not included) and lock it in place using the thumb lever. You are now ready to mount a variety of accessories such as lens motors, EVF mounts, power-distribution boxes, etc.
- For BMC Camera Cage
- Mounts to 1/4"-20–Threaded Holes
- Multiple Angle Positioning
Wooden Camera BMC Cage 19mm Rod-Clamp
This BMC Cage 19mm Rod-Clamp from Wooden Camera is used to attach a single 19mm rod to any of the 1/4"-20 holes on the BMC (Blackmagic) Camera Cage. This versatile clamp can be positioned at several angles. Once the Rod-Clamp is attached using the included 1/4"–long screw, insert a 19mm rod (not included) and lock it in place using the thumb lever. You are now ready to mount a variety of accessories such as lens motors, EVF mounts, power-distribution boxes, etc. to the rod.| Dimensions | 1.9 x 1.1 x 0.8" (47.0 x 29.0 x 20.3 mm) |
| Weight | 1.1 oz (31 g) |
| Package Weight | 0.02Kg |
| Box Dimensions (LxWxH) | 10.16cm x 5.84cm x 3.05cm |
In The Box
- 1 x Wooden Camera BMC Cage 19mm Rod-Clamp
- 1 x 1/4"-20 x 1/4" Screw
- 1 x 1-Year Limited Warranty
Wooden Camera BMC Cage 19mm Rod-Clamp
This BMC Cage 19mm Rod-Clamp from Wooden Camera is used to attach a single 19mm rod to any of the 1/4"-20 holes on the BMC (Blackmagic) Camera Cage. This versatile clamp can be positioned at several angles. Once the Rod-Clamp is attached using the included 1/4"–long screw, insert a 19mm rod (not included) and lock it in place using the thumb lever. You are now ready to mount a variety of accessories such as lens motors, EVF mounts, power-distribution boxes, etc. to the rod.| Dimensions | 1.9 x 1.1 x 0.8" (47.0 x 29.0 x 20.3 mm) |
| Weight | 1.1 oz (31 g) |
| Package Weight | 0.02Kg |
| Box Dimensions (LxWxH) | 10.16cm x 5.84cm x 3.05cm |
In The Box
- 1 x Wooden Camera BMC Cage 19mm Rod-Clamp
- 1 x 1/4"-20 x 1/4" Screw
- 1 x 1-Year Limited Warranty
