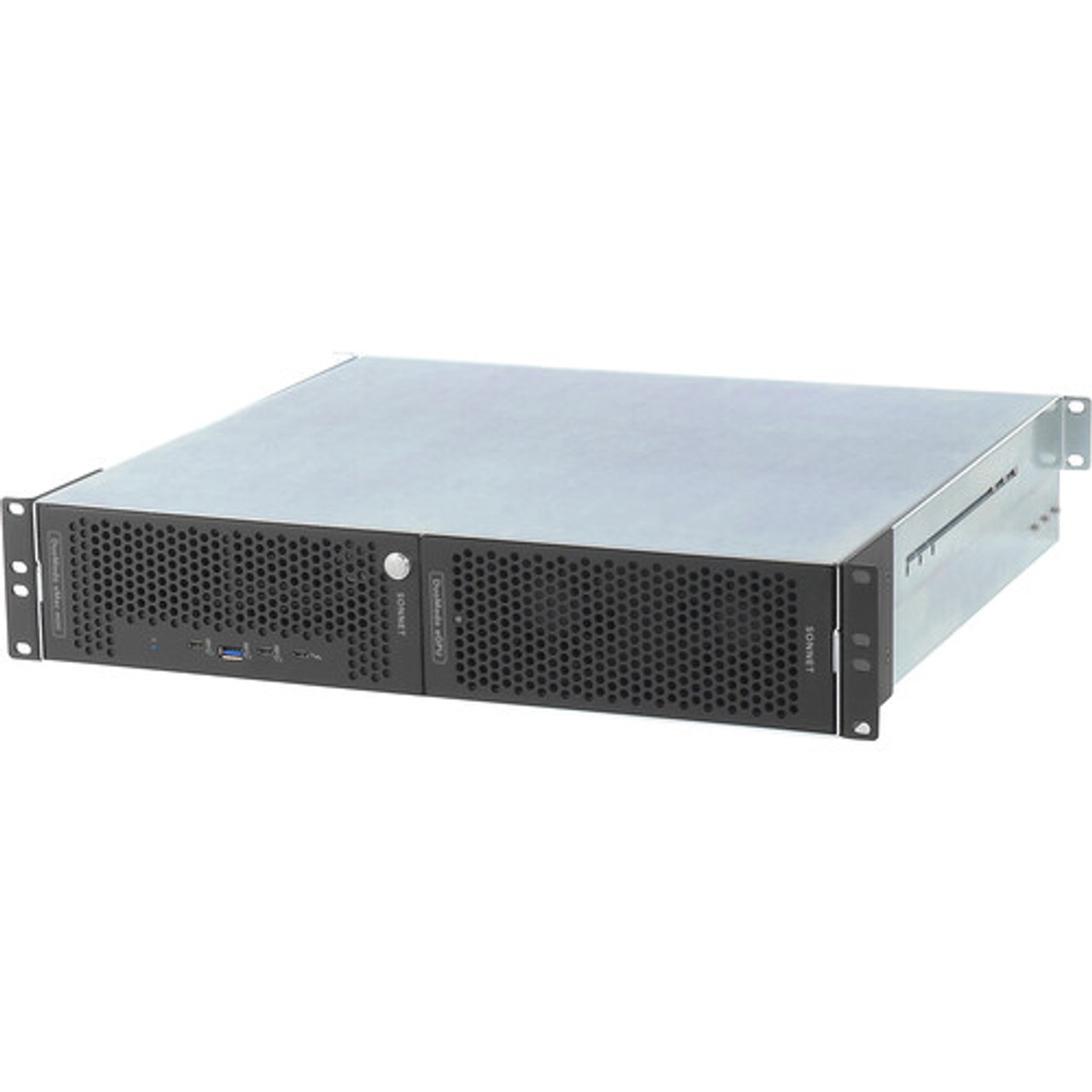

Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
SKU:
DM-ZM-GPU-R
Availability:
Enquire for ETA
Write a Review
Sonnet
Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
Combine a GPU with your Mac mini using the DuoModo xMac mini (Intel) / eGPU Rackmount System from Sonnet. Featuring a preinstalled eGPU module, this rackmount system accepts an Intel Mac mini, available separately. Connecting to its host via the internal Thunderbolt 3 port, the mac housing provides a Thunderbolt 3, USB 3.2 Gen 2 Type-A, and two Type-C ports, while also preserving access to Mac mini ports.
Plus, two M.2 NVMe SSD slots can be used to install up to 16TB of storage. A convenient internal USB also provides connectivity for a thumb drive or iLok USB key. The included eGPU module accommodates Thunderbolt 3 graphics cards measuring up to 2.5 slots wide.
- Compatible with xMac mini Intel
- Thunderbolt 3 & USB 3.2 Gen 2 Ports
- 2 x M.2 NVMe Slots
- Internal Thunderbolt 3 Port for Mac mini
- Preserves Access to Mac mini Ports
- Supports GPUs up to 2.5 Slots Wide
- Supports Thunderbolt 3 Graphics Cards
- 2 x 8-Pin (6+2 Pins) Power Connectors
- Built-In 800W Power Supply
- Steel Construction & 2 RU Form Factor
Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
Combine a GPU with your Mac mini using the DuoModo xMac mini (Intel) / eGPU Rackmount System from Sonnet. Featuring a preinstalled eGPU module, this rackmount system accepts an Intel Mac mini, available separately. Connecting to its host via the internal Thunderbolt 3 port, the mac housing provides a Thunderbolt 3, USB 3.2 Gen 2 Type-A, and two Type-C ports, while also preserving access to Mac mini ports. Plus, two M.2 NVMe SSD slots can be used to install up to 16TB of storage. A convenient internal USB also provides connectivity for a thumb drive or iLok USB key.
The included eGPU module accommodates Thunderbolt 3 graphics cards measuring up to 2.5 slots wide. Two 8-pin (6+2 pin) connectors allow for easy installation of GPUs, and the eGPU supports a total bandwidth of 2750 MB/s. A built-in 800W power supply ensures plenty of juice for graphics cards. Dual temperature-controlled cooling fans utilize variable speeds to prevent overheating. In addition to a Thunderbolt 3 and power cable, a ThunderLok 3 retainer clip is included. Please note, this system does not come with graphics cards or a Mac mini preinstalled.
| Compatibility | Intel Mac mini |
| Ports | 1 x Thunderbolt 3 Port 2 x USB 3.2 Gen 2 Type-C Ports 1 x USB 3.2 Gen 2 Type-A |
| Slots | 2 x M.2 NVMe SSD Slots (Up to 16TB) |
| Internal Ports | 1 x USB 3.2 Gen 2 Type-A Port 1 x Thunderbolt 3 Port for Connecting Mac mini |
| Cooling Fan | 1 x Temperature Controlled, Variable-Speed Fan |
| Supported GPUs | Thunderbolt-Compatible GPUs 2.5-Slot Width GPUs |
| Connectors | 2 x 8-Pin (2+6 Pin) Auxiliary Power Connectors |
| Bandwidth | Up to 2750 MB/s |
| Cooling Fan | 2 x Temperature Controlled, Variable-Speed Fans |
| Power Supply | 800 W |
| Material of Construction | Steel |
| Form Factor | Rackmount (2 RU) |
| Dimensions | 19 x 16.5 x 3.5" / 48.26 x 41.91 x 8.89 cm |
| Package Weight | 12.98Kg |
| Box Dimensions (LxWxH) | 58.17cm x 55.88cm x 20.83cm |
In The Box
- 1 x Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
- 2 x Power Cables
- 2 x Thunderbolt 3 Cables
- 1 x Rack Rails for Server Racks 16 to 24" Deep
- 1 x ThunderLok 3 Retainer Clip
- 1 x Limited 2-Year Warranty
Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
Combine a GPU with your Mac mini using the DuoModo xMac mini (Intel) / eGPU Rackmount System from Sonnet. Featuring a preinstalled eGPU module, this rackmount system accepts an Intel Mac mini, available separately. Connecting to its host via the internal Thunderbolt 3 port, the mac housing provides a Thunderbolt 3, USB 3.2 Gen 2 Type-A, and two Type-C ports, while also preserving access to Mac mini ports. Plus, two M.2 NVMe SSD slots can be used to install up to 16TB of storage. A convenient internal USB also provides connectivity for a thumb drive or iLok USB key.
The included eGPU module accommodates Thunderbolt 3 graphics cards measuring up to 2.5 slots wide. Two 8-pin (6+2 pin) connectors allow for easy installation of GPUs, and the eGPU supports a total bandwidth of 2750 MB/s. A built-in 800W power supply ensures plenty of juice for graphics cards. Dual temperature-controlled cooling fans utilize variable speeds to prevent overheating. In addition to a Thunderbolt 3 and power cable, a ThunderLok 3 retainer clip is included. Please note, this system does not come with graphics cards or a Mac mini preinstalled.
| Compatibility | Intel Mac mini |
| Ports | 1 x Thunderbolt 3 Port 2 x USB 3.2 Gen 2 Type-C Ports 1 x USB 3.2 Gen 2 Type-A |
| Slots | 2 x M.2 NVMe SSD Slots (Up to 16TB) |
| Internal Ports | 1 x USB 3.2 Gen 2 Type-A Port 1 x Thunderbolt 3 Port for Connecting Mac mini |
| Cooling Fan | 1 x Temperature Controlled, Variable-Speed Fan |
| Supported GPUs | Thunderbolt-Compatible GPUs 2.5-Slot Width GPUs |
| Connectors | 2 x 8-Pin (2+6 Pin) Auxiliary Power Connectors |
| Bandwidth | Up to 2750 MB/s |
| Cooling Fan | 2 x Temperature Controlled, Variable-Speed Fans |
| Power Supply | 800 W |
| Material of Construction | Steel |
| Form Factor | Rackmount (2 RU) |
| Dimensions | 19 x 16.5 x 3.5" / 48.26 x 41.91 x 8.89 cm |
| Package Weight | 12.98Kg |
| Box Dimensions (LxWxH) | 58.17cm x 55.88cm x 20.83cm |
In The Box
- 1 x Sonnet DuoModo xMac mini (Intel) / eGPU Rackmount System
- 2 x Power Cables
- 2 x Thunderbolt 3 Cables
- 1 x Rack Rails for Server Racks 16 to 24" Deep
- 1 x ThunderLok 3 Retainer Clip
- 1 x Limited 2-Year Warranty
