SKAARHOJ Mini Fly Live Switching Controller
SKAARHOJ Mini Fly Live Switching Controller
SKU:
MINI-FLY-V1
Availability:
Enquire for ETA

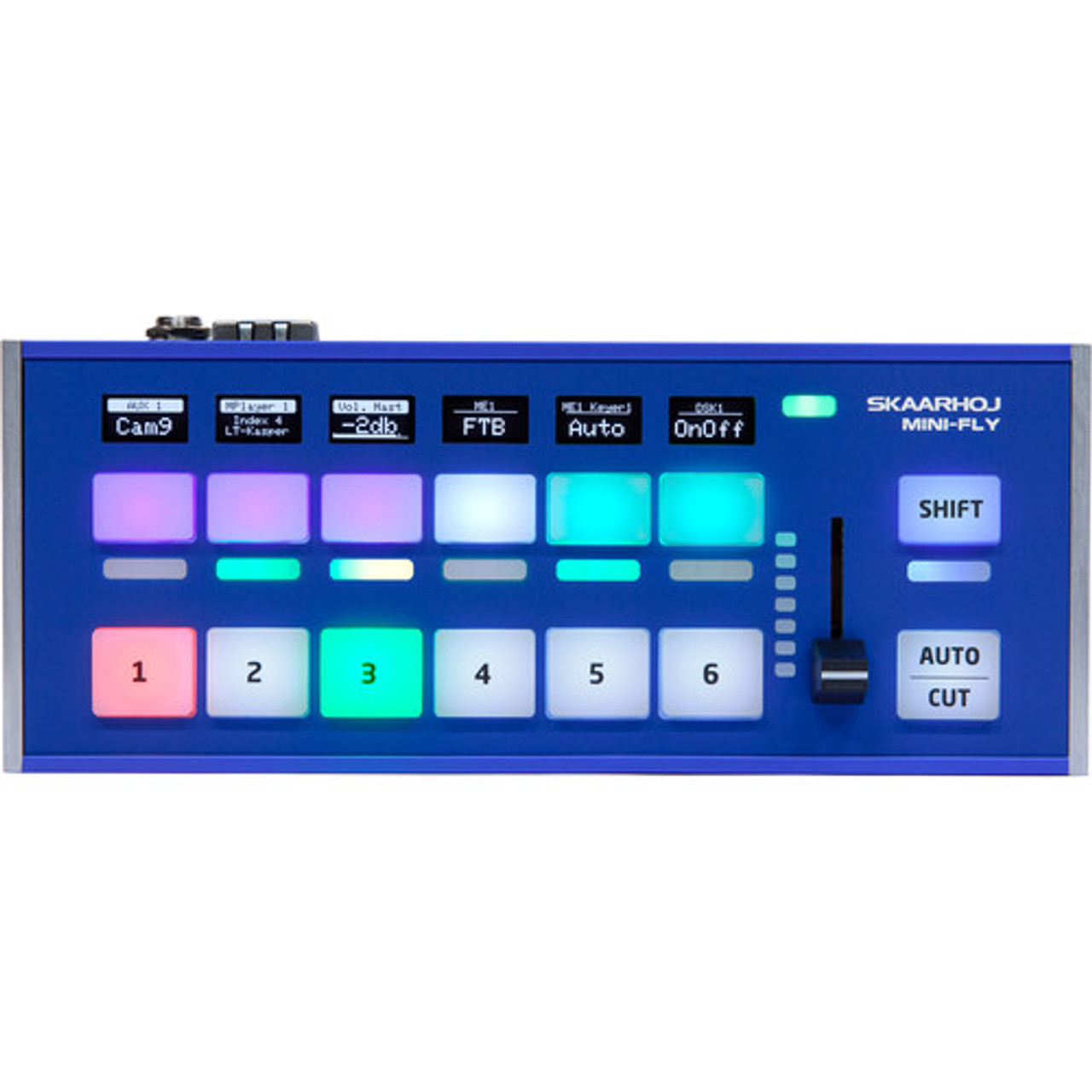

When it comes to live switching, the Mini Fly from SKAARHOJ is designed to be your Swiss Army knife. Compact and versatile, this controller gives you powerful tools for running live productions involving up to six cameras. Its interface includes six programmable four-way buttons with OLED displays, six programmable four-way audio buttons with RGB multilevel metering LEDs and OLED displays, a transition fader with an LED bar, a shift button with step indicator, and an auto/cut button.
The Mini Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six RGB multilevel metering LED bars for VU, tally, or step indicationProgrammable four-way buttons with OLED displaysMultilevel shift key with step indicatorCustom-molded RGB backlit keysTransition fader with LED bar for transition position or VU meteringAuto/cut button1/4"-20 bottom thread for mounting clamps (available separately)Slim, ergonomic console form factorEthernet with PoE IEEE802.3afUniSketch OSComes with softwareWorks with a wide range of devices and systems including Blackmagic Design ATEM, NewTek TriCaster, vMix, and Epiphan Pearl.
- For up to 6-Camera Productions
- 6 x Programmable 4-Way Buttons
- 6 x 4-Way Audio Buttons, RGB LED Bars
- 6 x OLED Displays
- Transition Fader with LED Bar
- Shift Button with Step Indicator
- Auto/Cut Button
- PoE for Easy Setup
- UniSketch Operating System
- Slim Console Form Factor
SKAARHOJ Mini Fly Live Switching Controller
When it comes to live switching, the Mini Fly from SKAARHOJ is designed to be your Swiss Army knife. Compact and versatile, this controller gives you powerful tools for running live productions involving up to six cameras. Its interface includes six programmable four-way buttons with OLED displays, six programmable four-way audio buttons with RGB multilevel metering LEDs and OLED displays, a transition fader with an LED bar, a shift button with step indicator, and an auto/cut button. The Mini Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six RGB multilevel metering LED bars for VU, tally, or step indicationProgrammable four-way buttons with OLED displaysMultilevel shift key with step indicatorCustom-molded RGB backlit keysTransition fader with LED bar for transition position or VU meteringAuto/cut button1/4"-20 bottom thread for mounting clamps (available separately)Slim, ergonomic console form factorEthernet with PoE IEEE802.3afUniSketch OSComes with softwareWorks with a wide range of devices and systems including Blackmagic Design ATEM, NewTek TriCaster, vMix, and Epiphan Pearl
| Number of Cameras Supported | 6 |
| Controls and Indicators | 6 x Programmable 4-Way Buttons with OLED Displays 6 x Programmable 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays 1 x Transition Fader with RGB LED Bar 1 x Shift Button with Multilevel Indicator 1 x Auto/Cut Button |
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input |
| Power Source | PoE IEEE802.3af |
| Operating System | UniSketch |
| Mounting Points | 1 x 1/4"-20 Thread, Bottom |
| Dimensions | 12.6 x 5.9 x 2.8" / 32 x 15 x 7 cm |
| Weight | 1.6 lb / 725 g |
| Package Weight | 0.72Kg |
| Box Dimensions (LxWxH) | 32.00cm x 15.24cm x 6.60cm |
In The Box
- 1 x SKAARHOJ Mini Fly Live Switching Controller
- 1 x 12V Power Supply
- 1 x Micro-USB Programming Cable
- 1 x Networking Cable
- 1 x Limited 1-Year Warranty
SKAARHOJ Mini Fly Live Switching Controller
When it comes to live switching, the Mini Fly from SKAARHOJ is designed to be your Swiss Army knife. Compact and versatile, this controller gives you powerful tools for running live productions involving up to six cameras. Its interface includes six programmable four-way buttons with OLED displays, six programmable four-way audio buttons with RGB multilevel metering LEDs and OLED displays, a transition fader with an LED bar, a shift button with step indicator, and an auto/cut button. The Mini Fly runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six RGB multilevel metering LED bars for VU, tally, or step indicationProgrammable four-way buttons with OLED displaysMultilevel shift key with step indicatorCustom-molded RGB backlit keysTransition fader with LED bar for transition position or VU meteringAuto/cut button1/4"-20 bottom thread for mounting clamps (available separately)Slim, ergonomic console form factorEthernet with PoE IEEE802.3afUniSketch OSComes with softwareWorks with a wide range of devices and systems including Blackmagic Design ATEM, NewTek TriCaster, vMix, and Epiphan Pearl
| Number of Cameras Supported | 6 |
| Controls and Indicators | 6 x Programmable 4-Way Buttons with OLED Displays 6 x Programmable 4-Way Audio Buttons with RGB Multilevel Metering LEDs & OLED Displays 1 x Transition Fader with RGB LED Bar 1 x Shift Button with Multilevel Indicator 1 x Auto/Cut Button |
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input |
| Power Source | PoE IEEE802.3af |
| Operating System | UniSketch |
| Mounting Points | 1 x 1/4"-20 Thread, Bottom |
| Dimensions | 12.6 x 5.9 x 2.8" / 32 x 15 x 7 cm |
| Weight | 1.6 lb / 725 g |
| Package Weight | 0.72Kg |
| Box Dimensions (LxWxH) | 32.00cm x 15.24cm x 6.60cm |
In The Box
- 1 x SKAARHOJ Mini Fly Live Switching Controller
- 1 x 12V Power Supply
- 1 x Micro-USB Programming Cable
- 1 x Networking Cable
- 1 x Limited 1-Year Warranty
