SKAARHOJ Inline 10 Modular Controller
SKAARHOJ Inline 10 Modular Controller
SKU:
INLINE-10-V1
Availability:
Enquire for ETA

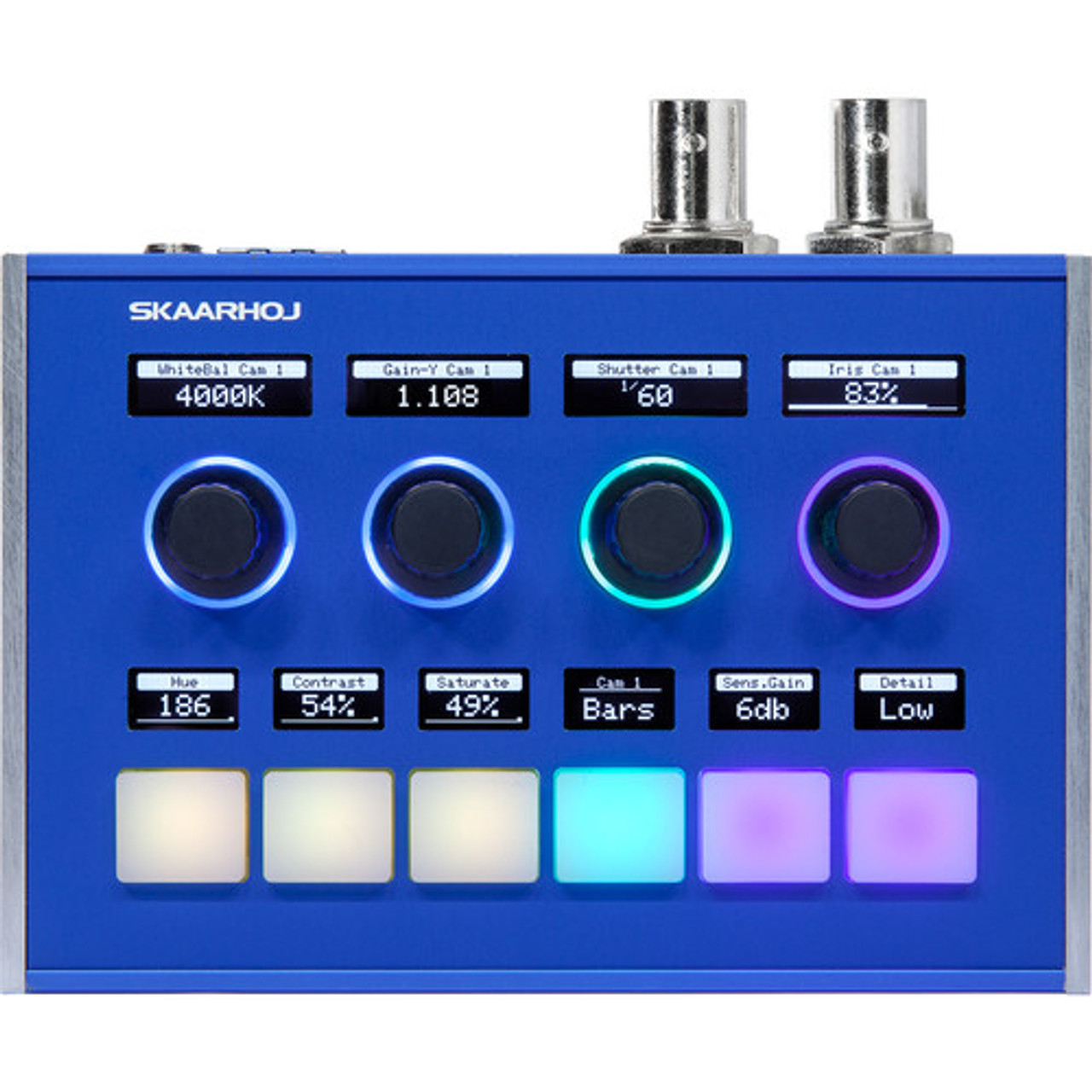

Easily adjust camera parameters with the Inline 10 Modular Controller from SKAARHOJ. The controller can be used either standalone or as a module that connects to other SKAARHOJ panels to create custom setups. It is equipped with six programmable four-way buttons, four encoder knobs, and a dedicated OLED display for each of the buttons and knobs.
The Inline 10 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six programmable four-way buttons with OLED displaysFour backlit encoder knobs with OLED displaysEthernet with PoE IEEE802.3afUniSketch operating systemComes with softwareWorks with a wide variety of devices including AJA RovoCam, IO Industries Flare 4K, Blackmagic Design ATEM & CamCtrl, Ensemble NXT 950, NewTek TriCaster, and vMix systems.
- Camera Parameter Adjustment
- Standalone/Modular Operation
- 6 x Programmable 4-Way Buttons
- 4 x Encoder Knobs
- OLED Display for Each Button/Knob
- PoE for Easy Setup
- UniSketch Operating System
SKAARHOJ Inline 10 Modular Controller
Easily adjust camera parameters with the Inline 10 Modular Controller from SKAARHOJ. The controller can be used either standalone or as a module that connects to other SKAARHOJ panels to create custom setups. It is equipped with six programmable four-way buttons, four encoder knobs, and a dedicated OLED display for each of the buttons and knobs. The Inline 10 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six programmable four-way buttons with OLED displaysFour backlit encoder knobs with OLED displaysEthernet with PoE IEEE802.3afUniSketch operating systemComes with softwareWorks with a wide variety of devices including AJA RovoCam, IO Industries Flare 4K, Blackmagic Design ATEM & CamCtrl, Ensemble NXT 950, NewTek TriCaster, and vMix systems
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input |
| Controls and Indicators | 6 x 4-Way Programmable Buttons with OLED Displays 4 x Backlit Encoder Knobs with OLED Displays |
| Operating System | UniSketch |
| Power Source | PoE IEEE802.3af, DC |
| Dimensions | 12.6 x 5.9 x 2.6" / 32 x 15 x 7 cm |
| Weight | 27.2 oz / 770 g |
In The Box
- 1 x SKAARHOJ Inline 10 Modular Controller
- 1 x 12V Power Supply
- 1 x Micro-USB Programming Cable
- 1 x Networking Cable
- 1 x Limited 1-Year Warranty
SKAARHOJ Inline 10 Modular Controller
Easily adjust camera parameters with the Inline 10 Modular Controller from SKAARHOJ. The controller can be used either standalone or as a module that connects to other SKAARHOJ panels to create custom setups. It is equipped with six programmable four-way buttons, four encoder knobs, and a dedicated OLED display for each of the buttons and knobs. The Inline 10 runs the SKAARHOJ-developed open-source UniSketch OS, which is user-programmable to fit specific workflows. PoE technology simplifies setup by enabling signals and power to travel via a single cable.Six programmable four-way buttons with OLED displaysFour backlit encoder knobs with OLED displaysEthernet with PoE IEEE802.3afUniSketch operating systemComes with softwareWorks with a wide variety of devices including AJA RovoCam, IO Industries Flare 4K, Blackmagic Design ATEM & CamCtrl, Ensemble NXT 950, NewTek TriCaster, and vMix systems
| Connectors | 1 x RJ45, Ethernet 1 x Micro-USB, Programming 1 x DC Power Input |
| Controls and Indicators | 6 x 4-Way Programmable Buttons with OLED Displays 4 x Backlit Encoder Knobs with OLED Displays |
| Operating System | UniSketch |
| Power Source | PoE IEEE802.3af, DC |
| Dimensions | 12.6 x 5.9 x 2.6" / 32 x 15 x 7 cm |
| Weight | 27.2 oz / 770 g |
In The Box
- 1 x SKAARHOJ Inline 10 Modular Controller
- 1 x 12V Power Supply
- 1 x Micro-USB Programming Cable
- 1 x Networking Cable
- 1 x Limited 1-Year Warranty
