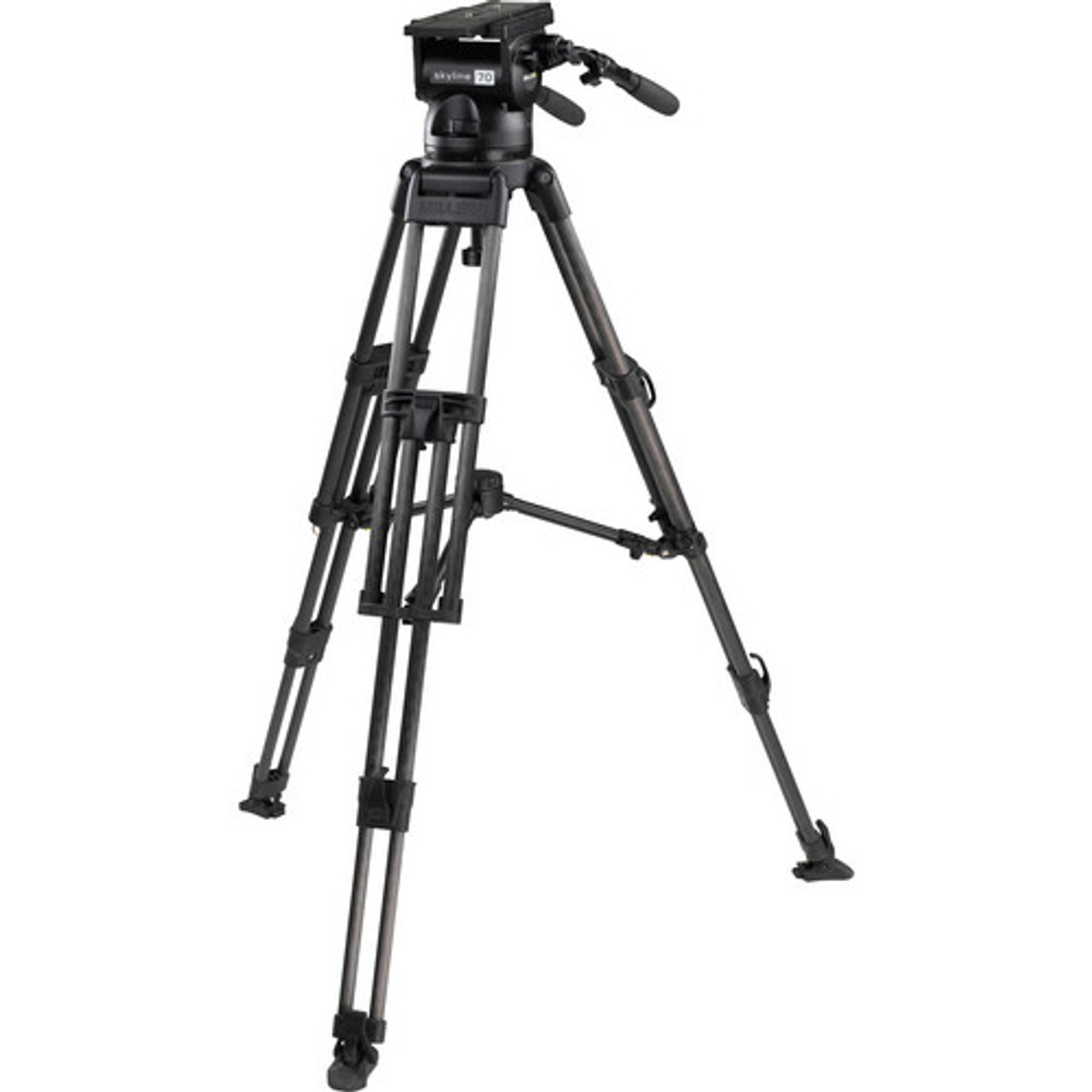

Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System
Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System
SKU:
2060
Availability:
Enquire for ETA
Write a Review
Miller
Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System
The Miller Skyline 70 Fluid Head is a large capacity head with a 150mm ball. The ball size, an 8-position counterbalance system, and a 4.7" quick-release camera platform together afford a load capacity from 10 to 82.5 lbs. A Euro camera plate is included.
Pan drag and tilt drag each also have 8 selectable positions (7+0), ranging from very light to heavy. Both pan and tilt drag feature a caliper disc brake system, and a quick-release tilt lock pin serve as the tilt lock for payload protection.
- 9.9 to 82.5 lb Capacity Fluid Drag Head
- Sliding Balance Plate with Safety Lock
- 8x Setting Counterbalance
- 7 Step Pan & Tilt Fluid Drag Plus 0
- 150mm Ball Leveling
- 2-Stage Tripod with Mid Level Spreader
- 25.5 to 63.6" Height Range (Tripod Legs)
- Independent Leg Adjustments
- Removable Anti-Slip Pads / Spike Covers
Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System
The Miller Skyline 70 Fluid Head is a large capacity head with a 150mm ball. The ball size, an 8-position counterbalance system, and a 4.7" quick-release camera platform together afford a load capacity from 10 to 82.5 lbs. A Euro camera plate is included. Pan drag and tilt drag each also have 8 selectable positions (7+0), ranging from very light to heavy. Both pan and tilt drag feature a caliper disc brake system, and a quick-release tilt lock pin serve as the tilt lock for payload protection. Two telescopic handles are extendable from 15.4 to 23.2" each.The Miller 937 EFP carbon fiber tripod offers 150mm bowl fixing and Quik-Lok leg locking for rapid setup, yet supports up to 200 lb (90.7 kg) and offers the utmost in strength and tortional rigidity. The Miller Telescopic Pan Handle with Handle Carrier is a 220mm extension handle compatible with the following fluid heads:
Arrow25, Arrow40, and Arrow50 100mm heads
Compass25 100mm head
Skyline 70 150mm headThe Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
10 to 82.5 lb Load Capacity
- 150mm ball
- 8-position counterbalance system
- 4.7" quick-release camera platform
- Euro camera plate included
- 7+0 pan and tilt drag
- Pan and tilt drag caliper disc brake system
- Quick-release tilt lock pin
- Two telescopic handles extend from 15.4 to 23.2" each
| Camera Plate Features | Sliding Balance Plate, Quick Release |
| Camera Plate Type | Large Euro Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 4.7" / 120 mm |
| Safety Lock | Yes |
| Base Mount | 150 mm Half Ball |
| Drag Control | Tilt: 7-Step Plus 0 Pan: 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Load Capacity | 9.9 to 82.5 lb / 4.5 to 37.4 kg |
| Counter Balance | Incremental 8-Step |
| Included Pan Handle Length | 15.4 to 23.2" / 39 to 59 cm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 13.2 lb / 6 kg |
| Package Weight | 8.55Kg |
| Box Dimensions (LxWxH) | 40.94cm x 27.43cm x 25.65cm |
| Head Mount Type | 150 mm Bowl |
| Load Capacity | 200 lb / 90.7 kg |
| Maximum Working Height | 64" / 162.5 cm |
| Minimum Working Height | 19.7" / 50 cm |
| Folded Length | 29.5" / 74.9 cm |
| Materials | Carbon Fiber |
| Weight | 10 lb / 4.5 kg |
| Leg Lock Type | Flip Lock |
| Leg Sections | 3 |
| Feet Features | Spiked |
| Spreader | Mid-Level (Not Included) |
| Box Dimensions (LxWxH) | 37.04 x 13 x 10.05" |
| Length | 15.4" (39cm) Extended Length 23.2" (59cm) |
| Weight | 0.8 lbs (0.38 kg) |
| Package Weight | 1.425 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.5" |
| Construction | Alloy |
| Type | Mid-Level |
| Adjustable | Continuously variable through all height settings |
| Minimum Length | 12.4" (315mm) |
| Maximum Length | 20.3" (515mm) |
| Weight | 1.7 lbs (0.75kg) |
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.4" |
| Dimensions | L: 3.7" / L: 95.0 mm |
| Weight | 8 oz / 210 g |
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 7.35 x 5.85 x 5.2" |
In The Box
- 1 x Miller Skyline 70 Fluid Head
- 1 x Miller 937 EFP Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (150mm Bowl) - Supports 200 lb (90.7 kg)
- 1 x Miller Telescopic Pan Handle with Handle Carrier
- 1 x Miller 993 Mid-level Spreader
- 1 x Miller 475 Rubber Feet Pads for Select Tripods (Set of 3)
Miller Skyline 70 Heavy-Duty 2-Stage Carbon Fiber Tripod System
The Miller Skyline 70 Fluid Head is a large capacity head with a 150mm ball. The ball size, an 8-position counterbalance system, and a 4.7" quick-release camera platform together afford a load capacity from 10 to 82.5 lbs. A Euro camera plate is included. Pan drag and tilt drag each also have 8 selectable positions (7+0), ranging from very light to heavy. Both pan and tilt drag feature a caliper disc brake system, and a quick-release tilt lock pin serve as the tilt lock for payload protection. Two telescopic handles are extendable from 15.4 to 23.2" each.The Miller 937 EFP carbon fiber tripod offers 150mm bowl fixing and Quik-Lok leg locking for rapid setup, yet supports up to 200 lb (90.7 kg) and offers the utmost in strength and tortional rigidity. The Miller Telescopic Pan Handle with Handle Carrier is a 220mm extension handle compatible with the following fluid heads:
Arrow25, Arrow40, and Arrow50 100mm heads
Compass25 100mm head
Skyline 70 150mm headThe Miller 993 is a mid-level spreader for Sprinter, Arrow 25/40 and HD tripod systems. This device offers variable adjustment in minimum and maximum height settings and a latch and swivel design.The 475 Tripod Feet from Miller are a set of three rubber snap-on feet designed to be used in any situation where the integrated dual spiked feet are not optimal. They are ideal for use on both slippery and glossy floors. These rubber feet are compatible with all tripods with a 993 mid level spreader.
10 to 82.5 lb Load Capacity
- 150mm ball
- 8-position counterbalance system
- 4.7" quick-release camera platform
- Euro camera plate included
- 7+0 pan and tilt drag
- Pan and tilt drag caliper disc brake system
- Quick-release tilt lock pin
- Two telescopic handles extend from 15.4 to 23.2" each
| Camera Plate Features | Sliding Balance Plate, Quick Release |
| Camera Plate Type | Large Euro Plate |
| Camera Mounting Screw | 2 x 3/8"-16 Male |
| Balance Plate Sliding Range | 4.7" / 120 mm |
| Safety Lock | Yes |
| Base Mount | 150 mm Half Ball |
| Drag Control | Tilt: 7-Step Plus 0 Pan: 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -75° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Load Capacity | 9.9 to 82.5 lb / 4.5 to 37.4 kg |
| Counter Balance | Incremental 8-Step |
| Included Pan Handle Length | 15.4 to 23.2" / 39 to 59 cm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 149°F / -40 to 65°C |
| Weight | 13.2 lb / 6 kg |
| Package Weight | 8.55Kg |
| Box Dimensions (LxWxH) | 40.94cm x 27.43cm x 25.65cm |
| Head Mount Type | 150 mm Bowl |
| Load Capacity | 200 lb / 90.7 kg |
| Maximum Working Height | 64" / 162.5 cm |
| Minimum Working Height | 19.7" / 50 cm |
| Folded Length | 29.5" / 74.9 cm |
| Materials | Carbon Fiber |
| Weight | 10 lb / 4.5 kg |
| Leg Lock Type | Flip Lock |
| Leg Sections | 3 |
| Feet Features | Spiked |
| Spreader | Mid-Level (Not Included) |
| Box Dimensions (LxWxH) | 37.04 x 13 x 10.05" |
| Length | 15.4" (39cm) Extended Length 23.2" (59cm) |
| Weight | 0.8 lbs (0.38 kg) |
| Package Weight | 1.425 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.5" |
| Construction | Alloy |
| Type | Mid-Level |
| Adjustable | Continuously variable through all height settings |
| Minimum Length | 12.4" (315mm) |
| Maximum Length | 20.3" (515mm) |
| Weight | 1.7 lbs (0.75kg) |
| Package Weight | 2.385 lb |
| Box Dimensions (LxWxH) | 18.35 x 6.55 x 6.4" |
| Dimensions | L: 3.7" / L: 95.0 mm |
| Weight | 8 oz / 210 g |
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 7.35 x 5.85 x 5.2" |
In The Box
- 1 x Miller Skyline 70 Fluid Head
- 1 x Miller 937 EFP Carbon Fiber 2-Stage Heavy-Duty Tripod Legs (150mm Bowl) - Supports 200 lb (90.7 kg)
- 1 x Miller Telescopic Pan Handle with Handle Carrier
- 1 x Miller 993 Mid-level Spreader
- 1 x Miller 475 Rubber Feet Pads for Select Tripods (Set of 3)
