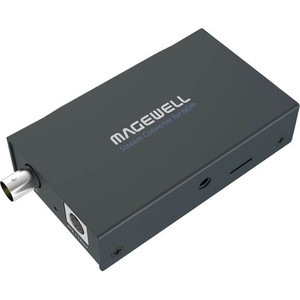

Magewell Pro Convert for NDI to SDI
Magewell Pro Convert for NDI to SDI
SKU:
641500000
Availability:
Enquire for ETA
Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI HX modes.
Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP. The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings. The Pro Convert NDI to SDI features a 1/4"-20 mounting thread and can be powered via the included USB power adapter or over PoE using the RJ45 port..
- Converts NDI Signal to 3G-SDI Stream
- Supports up to NDI 2K60 Input
- Up to 1080p60 Output, 16-Bit 8-Ch Audio
- Power Adapter + PoE
- Embedded Audio Supported
- Minimal Latency
- 1/4"-20 Mounting Thread
- Web UI, LED, Tally Indicators
- Custom HTTP-Based APIs
- Image Flip for Projector Installations
Magewell Pro Convert for NDI to SDI
Use the Pro Convert for NDI to SDI Decoder from Magewell to convert an NDI stream with embedded audio to an SDI output signal. This converter supports resolutions up to 2K60 via NDI input and decodes at resolutions up to 1080p60 for 3G-SDI output. Designed to link baseband equipment to IP-based media networks, this component supports full-bandwidth NDI and high-efficiency NDI HX modes. Supported streaming protocols include SRT, RTSP, RTMP, UDP, RTP, HLS, and HTTP.
The Pro Convert Web UI is compatible with a wide variety of web browsers and enables web configuration for settings such as the device name, source name, NDI and EDID identifiers, and other settings. The Pro Convert NDI to SDI features a 1/4"-20 mounting thread and can be powered via the included USB power adapter or over PoE using the RJ45 port.
| Video Input Connectors | 1 x RJ45 (NDI) Female |
| Input Video Format | RJ45 DCI 2K: 60 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | RJ45: 8-Channel |
| Video Output Connectors | 1 x BNC (3G-SDI) |
| Output Video Format | SDI 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines: 50 fps 480i / 525 lines: 50 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | SDI: 8-Channel (per Output) |
| Other I/O | 1 x USB Type-B Control Input (Shared Power) 1 x USB Type-A Control Input |
| Expansion Slots | None |
| Video IP Decoding | RTMP, RTP, RTSP, UDP, H.264, H.265: 720 x 480 to 1920 x 1080 at 60p |
| Audio IP Decoding | AAC |
| Tally Light | Yes |
| Power Connector | 1 x USB Type-B (5 VDC at 2.1 A) Input |
| PoE Support | PoE 802.3af |
| Power Consumption | Device: 1.05 A5.5 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 5 to 90% |
| Dimensions | 4 x 2.4 x 0.9" / 100.9 x 60.2 x 23.3 mm |
| Warranty Length | Limited 2-Year Warranty |
| Package Weight | 0.59Kg |
| Box Dimensions (LxWxH) | 21.08cm x 10.67cm x 6.60cm |
In The Box
- 1 x Magewell Pro Convert for NDI to SDI
- 1 x USB Type-A to USB Type-B Cable
- 1 x 5V, 2.1A Power Adapter
- 1 x L-Bracket
- 1 x Limited 2-Year Warranty
