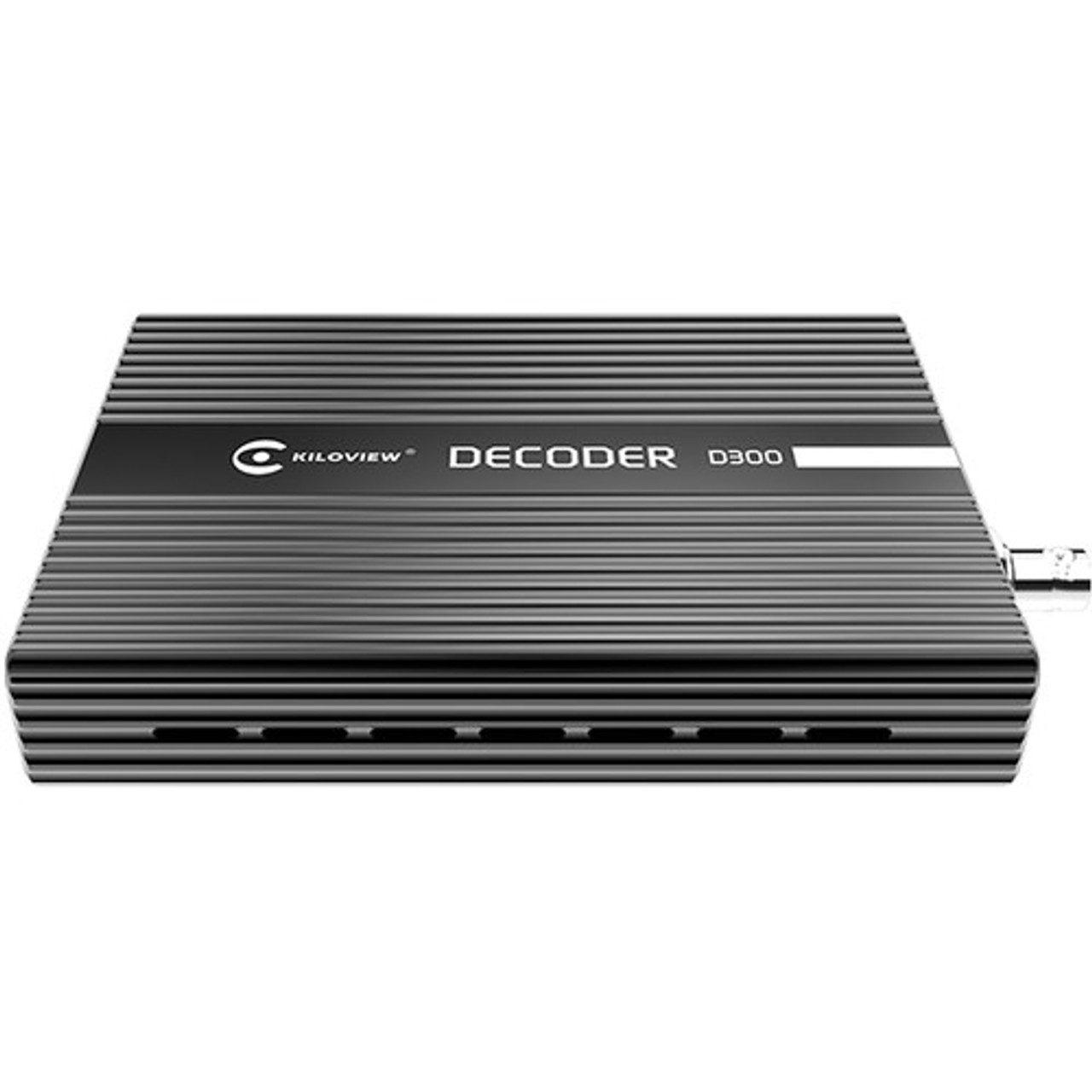

Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
SKU:
D300
Availability:
Enquire for ETA
Write a Review
Kiloview
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Decode and split multiple streams to your display wall with the KV-D300 4K NDI/HX UHD Video Decoder from Kiloview. This compact unit features two RJ45 inputs, one 3G-SDI output, and one HDMI 2.0 output. It supports up to UHD 4K video via HDMI and up to 1080p60 via 3G-SDI. Image enhancement and anti-error technology produce clear, distortion-free images even at low bit rates.
This decoder supports HDMI and SDI-embedded audio and 3.5mm analog audio output. The KV-D300 features self-defined split-screen displays ideal for multi-media displays, educational use, and teleconferencing.
- NDI HX, H.265 & H.264 Decoding
- 4 x UHD 4K or 16 x 1080p30 or Channels
- 2 x 100M/1000M RJ45 Ethernet Inputs
- 1 x 3G-SDI & 1 x HDMI 2.0 Output
- Image Scaling/Frame Rate Conversion
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Decode and split multiple streams to your display wall with the KV-D300 4K NDI/HX UHD Video Decoder from Kiloview. This compact unit features two RJ45 inputs, one 3G-SDI output, and one HDMI 2.0 output. It supports up to UHD 4K video via HDMI and up to 1080p60 via 3G-SDI.
Image enhancement and anti-error technology produce clear, distortion-free images even at low bit rates. This decoder supports HDMI and SDI-embedded audio and 3.5mm analog audio output. The KV-D300 features self-defined split-screen displays ideal for multi-media displays, educational use, and teleconferencing. Additional features include <200ms latency, image scaling, frame rate conversion, and tally support.
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Decode and split multiple streams to your display wall with the KV-D300 4K NDI/HX UHD Video Decoder from Kiloview. This compact unit features two RJ45 inputs, one 3G-SDI output, and one HDMI 2.0 output. It supports up to UHD 4K video via HDMI and up to 1080p60 via 3G-SDI.
Image enhancement and anti-error technology produce clear, distortion-free images even at low bit rates. This decoder supports HDMI and SDI-embedded audio and 3.5mm analog audio output. The KV-D300 features self-defined split-screen displays ideal for multi-media displays, educational use, and teleconferencing. Additional features include <200ms latency, image scaling, frame rate conversion, and tally support.
- Multi-channel video streaming to video walls
- Two RJ45 adaptive Ethernet input ports support up to UHD 4K30 input
- One HDMI 2.0 output supports up to UHD 4K60 and one 3G-SDI output supports up to 1080p60
- Image scaling and frame-rate conversion
- Supports NDI HX/H.265/H.264/RTMP/SRT/HLS/TS streaming over UDP/RTP/RTSP/ONVIF and more
- Decodes up to four 4K30 channels simultaneously, up to eight 1080p60 channels simultaneously, and up to 16 1080p30 channels simultaneously
- Under 200ms decoding delay
- Support for 1/2/4/6/8/9/16 self-defined screen splitting
| Video Input Connectors | 2 x RJ45 |
| Input Video Format | RJ45 UHD 4K: 30 fps 1080p: 23.98/24/25/29.97/30/50/60 fps 720p: 50/59.94 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | RJ45 |
| Video Output Connectors | 1 x HDMI 1 x BNC (HD-SDI / SD-SDI) |
| Output Video Format | HDMI UHD 4K: 30/60 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps SDI 1080p: 24/25/29.97/30/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL (768 x 576): 50 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI SDI |
| Latency | 200 ms |
| Other I/O | 1 x USB Type-A |
| Expansion Slots | None |
| Video IP Encoding | NDI, RTMP, RTP, RTSP, UDP: x |
| Video IP Decoding | H.264, H.265: 3840 x 2160 at 30p H.264, H.265: 1920 x 1080 at 30p, 50p, 60p H.264, H.265: 1920 x 1080 at 50i, 59.94i H.264, H.265: 1280 x 720 |
| Audio IP Decoding | AAC |
| Wi-Fi Support | Yes |
| Power Consumption | 12 VDC at 1 A (6 W) |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 5.4 x 4.1 x 1" / 13.8 x 10.5 x 2.5 cm |
| Weight | 13.4 oz / 380 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 0.54Kg |
| Box Dimensions (LxWxH) | 20.57cm x 15.75cm x 8.64cm |
In The Box
- 1 x Kiloview KV-D300 4K NDI/HX UHD Video Decoder
- 1 x Limited 1-Year Warranty
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Decode and split multiple streams to your display wall with the KV-D300 4K NDI/HX UHD Video Decoder from Kiloview. This compact unit features two RJ45 inputs, one 3G-SDI output, and one HDMI 2.0 output. It supports up to UHD 4K video via HDMI and up to 1080p60 via 3G-SDI.
Image enhancement and anti-error technology produce clear, distortion-free images even at low bit rates. This decoder supports HDMI and SDI-embedded audio and 3.5mm analog audio output. The KV-D300 features self-defined split-screen displays ideal for multi-media displays, educational use, and teleconferencing. Additional features include <200ms latency, image scaling, frame rate conversion, and tally support.
Kiloview KV-D300 4K NDI/HX UHD Video Decoder
Decode and split multiple streams to your display wall with the KV-D300 4K NDI/HX UHD Video Decoder from Kiloview. This compact unit features two RJ45 inputs, one 3G-SDI output, and one HDMI 2.0 output. It supports up to UHD 4K video via HDMI and up to 1080p60 via 3G-SDI.
Image enhancement and anti-error technology produce clear, distortion-free images even at low bit rates. This decoder supports HDMI and SDI-embedded audio and 3.5mm analog audio output. The KV-D300 features self-defined split-screen displays ideal for multi-media displays, educational use, and teleconferencing. Additional features include <200ms latency, image scaling, frame rate conversion, and tally support.
- Multi-channel video streaming to video walls
- Two RJ45 adaptive Ethernet input ports support up to UHD 4K30 input
- One HDMI 2.0 output supports up to UHD 4K60 and one 3G-SDI output supports up to 1080p60
- Image scaling and frame-rate conversion
- Supports NDI HX/H.265/H.264/RTMP/SRT/HLS/TS streaming over UDP/RTP/RTSP/ONVIF and more
- Decodes up to four 4K30 channels simultaneously, up to eight 1080p60 channels simultaneously, and up to 16 1080p30 channels simultaneously
- Under 200ms decoding delay
- Support for 1/2/4/6/8/9/16 self-defined screen splitting
| Video Input Connectors | 2 x RJ45 |
| Input Video Format | RJ45 UHD 4K: 30 fps 1080p: 23.98/24/25/29.97/30/50/60 fps 720p: 50/59.94 fps |
| Audio Input Connectors | None |
| Embedded Audio Input | RJ45 |
| Video Output Connectors | 1 x HDMI 1 x BNC (HD-SDI / SD-SDI) |
| Output Video Format | HDMI UHD 4K: 30/60 fps 1080p: 24/25/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps SDI 1080p: 24/25/29.97/30/59.94/60 fps 1080i: 50/59.94/60 fps 720p: 50/59.94/60 fps NTSC: 60 fps PAL (768 x 576): 50 fps |
| Audio Output Connectors | None |
| Embedded Audio Output | HDMI SDI |
| Latency | 200 ms |
| Other I/O | 1 x USB Type-A |
| Expansion Slots | None |
| Video IP Encoding | NDI, RTMP, RTP, RTSP, UDP: x |
| Video IP Decoding | H.264, H.265: 3840 x 2160 at 30p H.264, H.265: 1920 x 1080 at 30p, 50p, 60p H.264, H.265: 1920 x 1080 at 50i, 59.94i H.264, H.265: 1280 x 720 |
| Audio IP Decoding | AAC |
| Wi-Fi Support | Yes |
| Power Consumption | 12 VDC at 1 A (6 W) |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Dimensions | 5.4 x 4.1 x 1" / 13.8 x 10.5 x 2.5 cm |
| Weight | 13.4 oz / 380 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 0.54Kg |
| Box Dimensions (LxWxH) | 20.57cm x 15.75cm x 8.64cm |
In The Box
- 1 x Kiloview KV-D300 4K NDI/HX UHD Video Decoder
- 1 x Limited 1-Year Warranty
